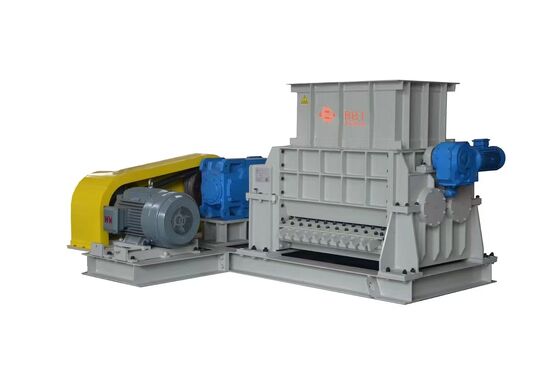

Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making

Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: TRA
Trading Properties
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: 10 sets per month
Tags:

Mill Roll Crusher Machine

Fine Roller Crusher Machine

Clay Brick Roller Crusher Machine
Product Summary
Double Toothed Roller Crusher for Clay Brick Making Plant The double-toothed roller crusher is specifically designed for the 2026 new clay brick making line, providing efficient crushing of medium and low hardness raw materials for brick production. Application Range This crusher is suitable for ...
Product Custom Attributes
Highlight

double toothed roller crusher for clay brick

,

roller crusher machine for brick making

,

2026 clay brick making line equipment

Item:
Double Toothed Roller Crusher For Clay Brick Making Plant 2026 New Clay Brick Making Line Equipment
Rotating Speed:
30/22rpm
Roller Diameter:
400
Roller Width:
1000
Model:
TRA400*1000
Product Description
Detailed Specifications & Features
Double Toothed Roller Crusher for Clay Brick Making Plant
The double-toothed roller crusher is specifically designed for the 2026 new clay brick making line, providing efficient crushing of medium and low hardness raw materials for brick production.
Application Range
This crusher is suitable for processing sintered bricks, coal, cement, silicate, glass, ceramics, and other brittle and soft materials with Mohs hardness not exceeding 2.5.
Technical Specifications
Input Size 50-300mm bulk materials
Output Size Below 30mm or less
Production Capacity 20-100m³/h (varies by material characteristics)
Key Components
  • Motor and reducer system
  • Hydraulic coupling
  • Robust frame construction
  • Fender components
  • Gear box assembly
  • Fast and slow rollers
  • Pressing roller components
Double-Toothed Roller System
Features a 16mm working clearance for optimal medium crushing. Equipped with carbide cutter heads on roller teeth for extended service life. Unique main shaft design enhances reliability and durability.
Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 0 Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 1
Pressing Roller
Facilitates smooth entry of bulk materials into crushing rollers, significantly improving crusher efficiency.
Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 2
Trowel System
Wedge-shaped trowel design ensures removal of materials stuck in roller grooves, enhancing crushing efficiency while allowing convenient maintenance and replacement.
Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 3
Fluid Coupling Transmission
Torque-limiting hydraulic coupling provides effective overload protection, smooth startup, vibration reduction, load balancing, and stepless speed regulation with simple maintenance requirements.
Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 4 Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 5 Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 6
Working Site Applications
Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 7 Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 8
Detailed Equipment Views
Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 9 Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 10
Manufacturing Process
Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 11 Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 12
Finishing and Painting
Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 13 Double Toothed Roller Crusher Machine with 400mm Roller Diameter 1000mm Width and 30/22rpm Speed for Clay Brick Making 14
Complete Clay Brick Making Line Equipment
TCNL series Chain full steel type box feeder
TWGD series Double shaft mixer
GS series Roller crusher
TRA series Double tooth roller crusher
TWJH series Front grid extruding mixer
TWPM series Wet pan mill
QTQG series Cutter
EV series Vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provides comprehensive automatic clay brick making project design, construction, and technical support services.
