Steel Pan Wet Milling Machine Materials Processing Wet Grinding Machine

Large Image : Steel Pan Wet Milling Machine Materials Processing Wet Grinding Machine

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001:2008
Model Number:	Different Model Available

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Export Standard Packing
Delivery Time:	60 Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	15 Sets/60 days

Contact Now

Steel Pan Wet Milling Machine Materials Processing Wet Grinding Machine

Description

Color:	White	Material:	Steel
Production Capacity:	40-90 Tons/hr Availble	Core Components::	Motor, Roller, Reducer
Customized:	Yes	Automatic:	Yes
After-Sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Transport Package:	Export Standard Packing
Highlight:	Pan Wet Milling Machine , Steel Wet Milling Machine , Materials Wet Grinding Machine

Pan Mills Supplier and Manufactures for Wet Materials Processing Grinding

General Description of Pan Mills Supplier and Manufactures for Wet Materials Processing Grinding

This is the most versatile and best performing machine for the grinding and crushing of wet clay and other minerals.

Commonly used as clay brick making machine and processing and grinding other minerals and waste.

For medium and fine crushing of materials.

The material particles crushed by the grinding wheel are approximately spherical, and the edges and corners are not sharp.

It is used in the raw material preparation section of the brick production line to fully mix, pulverize and grind various materials.

Structures of Pan Mills Supplier and Manufactures for Wet Materials Processing Grinding

The rolling mechanism is simple to build, easy to maintain, not strict with feeding size requirements, equipment self-weight, strong overall rigidity, impact resistance, and safe and stable equipment operation.

The hydraulic coupling is used to realize the power transmission between the motor and the reducer, the starting impact is small, and the reducer can provide overload protection and prolong the service life.

The inspection door open/close detection switch is interlocked with the main motor start/stop switch to ensure that the maintenance personnel can maintain the machine when the machine is stopped.

Specifications of Pan Mills Supplier and Manufactures for Wet Materials Processing Grinding

Item	Unit	TWPM160	TWPM185
Production capacity	t/h	40-60	60-85
Diameter and width of runners	mm	1,600*700	1850*700
Weight of inner/outer runners	Kg	5,700/6,500	8,500/12,500
Required power	Kw	55	98
Approximate total weight	Kg	46,000	54,000
Total length	mm	4,000	6,700
Total width	mm	4,000	6,400
Total Height	mm	6,200	6,460

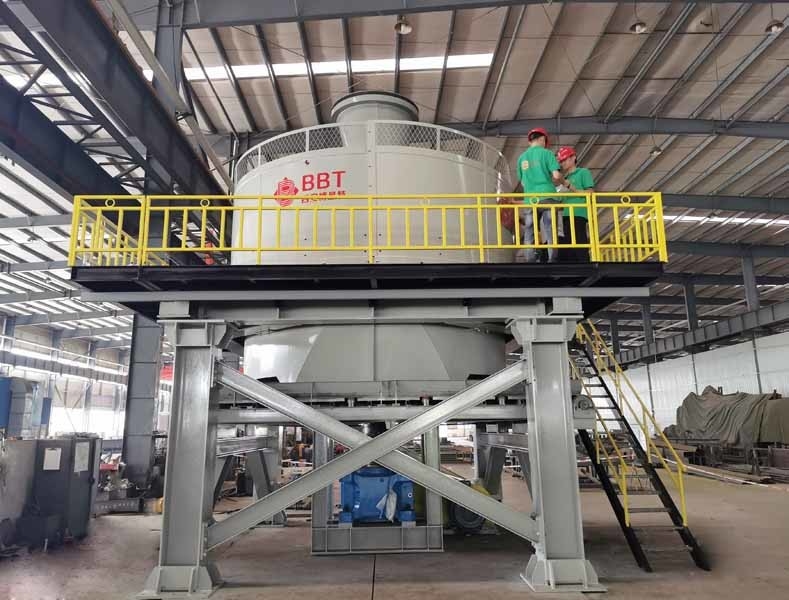

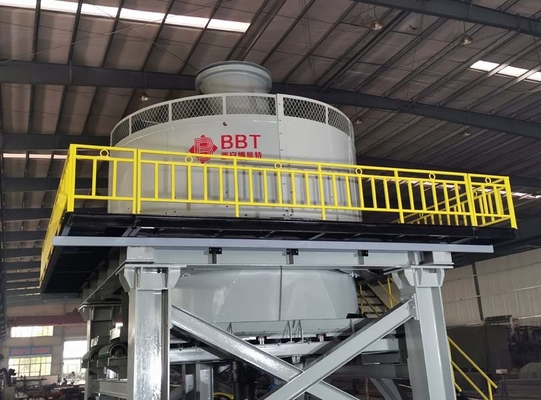

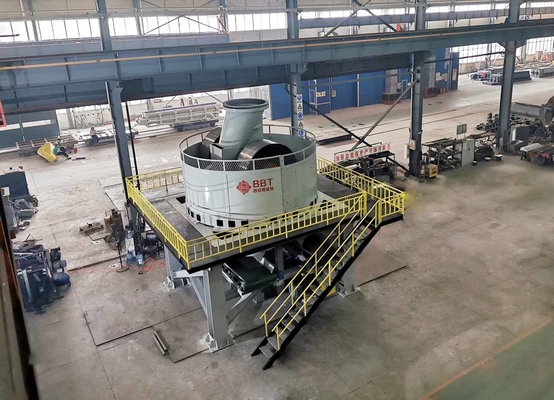

Pan Mills Supplier and Manufactures for Wet Materials Processing Grinding Used in a Brick Making Factory with raw materials of sludge, shale and clay.

Steel Pan Wet Milling Machine Materials Processing Wet Grinding Machine 0
