Product Details:
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: PM185
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard package for shipment by sea, railway and truck
Delivery Time: 2 month
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets/year

45 - 60 M³/H Wet Pan Mill For Clay Brick Making Line Materials Crushing Machine

Description
Function: Clay Further Crushing And Clay Preparation For Brick Making Supporting Frame: Optional
Motor: Famous Brand Sieve Plate: High Manganese Steel
Pan: Lattice Structure Maintaining: Easy Degree
Guiding For Operation: Available Custom Building: Accepted
Drawings For Installation: Available Drawings For Dismantle: Available
Highlight:

60 M³/H Wet Pan Mill

,

ISO 9001 Wet Pan Mill

1. Introduction for 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine

Wet pan mill is mainly used to crush the clay, clinker, silica, bentonite and etc.

Raw material from medium hardness will be crushed into fine granule which is nearly to ball-shape and no sharp edge.

It is also can be used in the raw material preparation in brick making production line which could fully mixture, crush and grind variety materials.


2. Structure of 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine

The structure of the wet mill pan is simple therefore it is easy to do the maintaining.

There is no strict requirement about the size of feeding material.

It is heavy with reasonable structure, so when the equipment into running, it is more safety, stable and anti-impacting.


3. Structural support for 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine

There is polyurethane shock-absorbing pad between the platform and reducer, which is used to absorb the impact force and vibration of the equipment during operation.
Note: Structure supporting and maintenance platform are optional and customers can weld in the local.


4. Main shaft for 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine
The main shaft is made of alloy steel forgings, and has been heat treated, which has high strength;
Fatigue resistance and can bear large radial eccentric forces.


5. Technical specifications for 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine


No. Item PM185
1 Roller size 1,850*700mm diameterxwidth
2 Rotate speed for main shaft ≥13 rpm
3 Motor Power 98 kw
4 Inner roller weight: 8,500 kg
5 Outer roller weight: 12,750 kg
6 Diameter for screen hole Customized building
7 Production capacity 45-60 m³/h
8 Total weight of equipment 56,000 kg
9 Dimensions 6,700*6,400*6,460mm



6. Questions and answers for 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine

a. Which part the refine roller crusher is using for please?
Answer: The high speed refine roller crusher is using after primary roller crusher in the production line of clay brick making.

b. How long of the guartee time for the high speed roller crusher?
Answer: 1 year

c. If installation drawings is provided when the refine roller crusher is installed?
Answer: Drawings are provided when order is confirmed.

d. Training operation for the high speed roller crusher is provided or not?
Answer: Yes, it is.

e. Spares for refine roller crusher is provided or not?
Answer:Yes, it is.

f. Online inspection for the high speed roller crusher is available or not?
Answer: Yes, it is.

g. Shipment by railway, by truck and by sea are available or not?
Answer: Yes it is

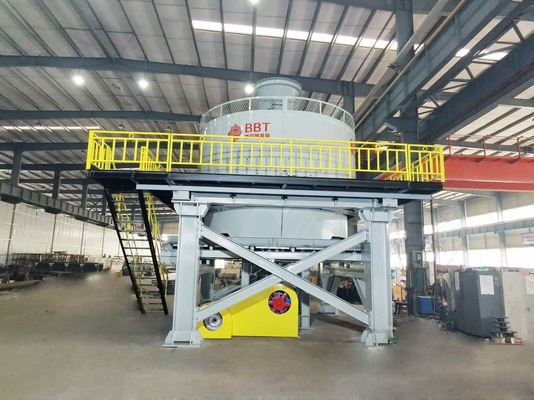

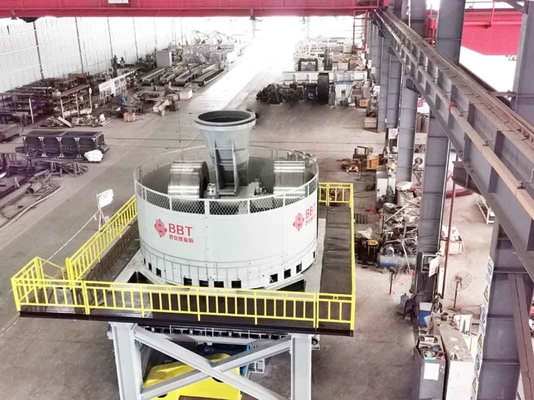

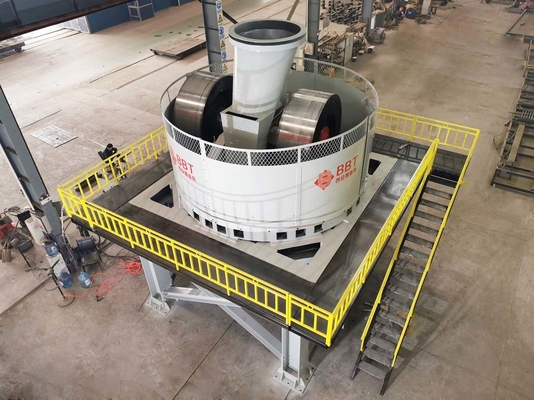

7. Pictures for 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine
45 - 60 M³/H Wet Pan Mill For Clay Brick Making Line Materials Crushing Machine 045 - 60 M³/H Wet Pan Mill For Clay Brick Making Line Materials Crushing Machine 1
