High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line

Large Image : High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	GS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	fine grinder roller crusher machine by container sea shipment
Delivery Time:	15~20 days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Contact Now

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line

Description

Model:

GS1080,GS1210,GS1412

Space Of Roll:

＜1.5

Linear Speed Of Roll:

18.4/15.5m/s

Thickness Of Roll Surface:

≥160mm

Highlight:

Clay Brick Roller Crusher Machine

High Speed Roller Crusher Machine

Roller crusher machine for full automatic clay brick production line

Full automatic red clay brick production line roller crusher machinery / fine grinder machinery / high speed rolling crusher

Clay roller crusher machine brick making machinery roll crushing equipment

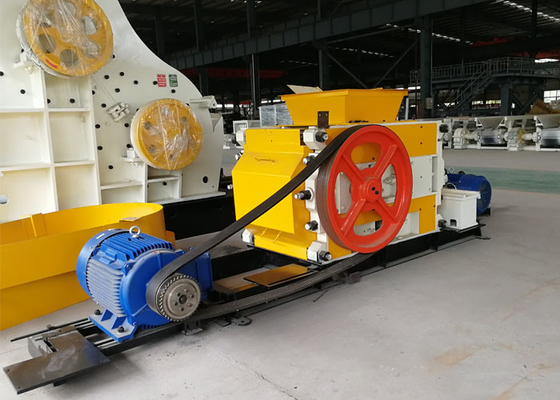

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 0

High speed roller crusher clay brick rolling crushing equipment in auto brick making project machine

The machine is material crushing equipment for brick production line.

The machine is crushed by extruding, grinding, and peeling.

The machine is applied to medium and fine crushing. The materials are medium hard and viscidity, the material moisture content is 18%-23%. The machine is not only applied to dry material treatment but also apply to the materials with water added.

The machine has functions of crushing, extruding, shearing and etc. The futures are high production efficiency, good crushing effect and convenient operation and maintenance.

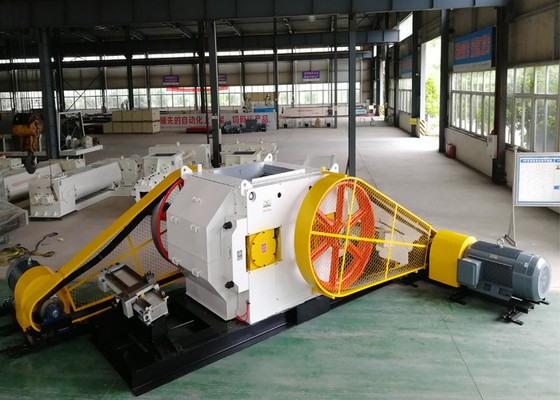

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 1

Clay roller crusher machine of technical parameters:

No.	Model	GS1080	GS1210	GS1412
1	Size of roll(diameter * width)	1000*800mm	1200*1000mm	1400*1200mm
2	Hardness of roll	≥53HRC	≥57HRC	≥57HRC
3	Thickness of roll surface	≥140mm	≥160mm	≥160mm
4	Space of roll	＜1.5	＜1.5	＜1.5
5	Power	55+75(90)kw	≤110+75kw	160+90kw
6	Linear speed of roll	18.4/15.5m/s	18.4/15.5m/s	18.4/15.5m/s
7	Production capacity	35-50m³/h	45-65m³/h	60-80m³/h
8	Weight	14,800kg	23,000kg	34,000kg
9	Dimension	620040001700mm	680044602860mm	780065002300mm

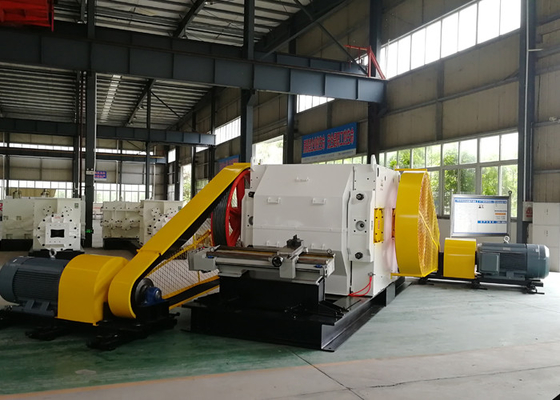

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 2

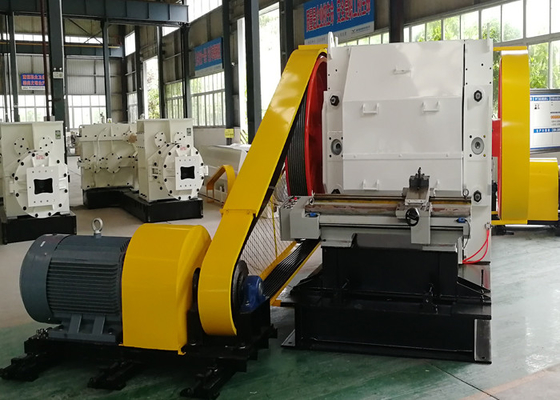

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 3

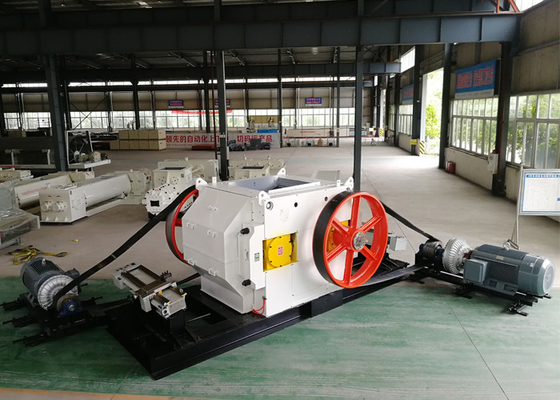

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 4

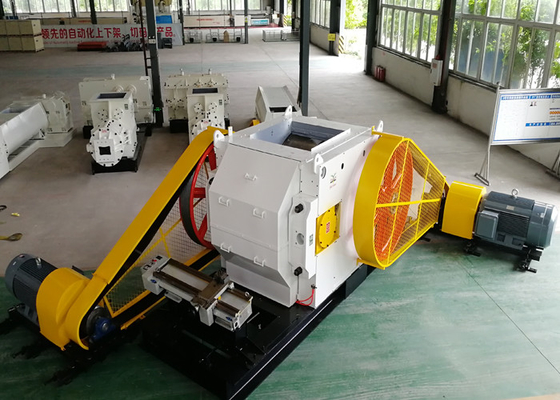

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 5

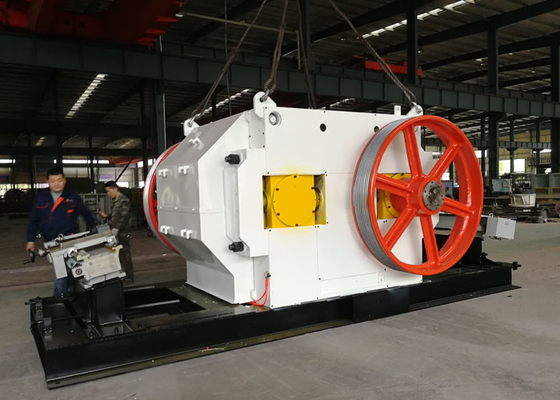

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 6

Clay brick roller crusher high speed roll crushing machine in auto clay brick making line

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 7

High Speed Clay Brick Roller Crusher Machine For Full Automatic Production Line 8
