Material Crushing Wet Pan Mill Machine For Clay Brick Making Line

Large Image : Material Crushing Wet Pan Mill Machine For Clay Brick Making Line

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	TWPM185

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	by container sea shipment
Delivery Time:	15days around
Payment Terms:	L/C, T/T
Supply Ability:	10 -12set per month

Contact Now

Material Crushing Wet Pan Mill Machine For Clay Brick Making Line

Description

Inner Roller:

12500 Kg

Outer Roller:

8500kg

Pan:

9700kg

Highlight:

Wet Pan Mill Machine

Material Crushing Wet Pan Mill

Wet Pan Mill Machine For Clay Brick Making Line

The machine is material crushing equipment for brick production line.
The machine is crushed by extruding, grinding , and peeling.
The machine can crush the material into small size which lower than 5mm by high speed rotation of one pair roller, thus to enhance plasticity and uniformity of raw material.
The machine has functions of crushing, extruding, shearing and ect. The futures are high production efficiency, good crushing effect and convenient operation and maintenance.
Key Parts :
Roller: Adopt material of wear-proof nodular cast iron and alloy stell,the hardness is 52HRC-56HRC after thermal engineering treatment.
Under frame: Q235 ordinary steel plate equal angle iron or channel steel.
Body: Q235 ordinary steel plate.
Shaft: 45# of higher quality materials.
Gears: 40 Cr for key position.
Gland or disc part : adopting HT200 or Q235 ordinary steel.

Note : The machine usage life is not less than 20 years under normal operation,and maintenance.The overhaul period is more than cumulative produciton 11000 hours.
Warm Tip: Keep daily maintenance can extend the usage life of the machine by more than 20%.

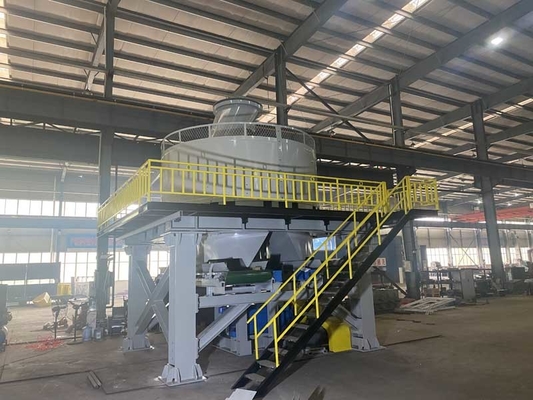

Material Crushing Wet Pan Mill Machine For Clay Brick Making Line 0

Clay brick making line equipment TWPM185 wet pan mill :

TWPM-185 wet pan mill is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China. The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain. It is mainly used for raw material treatment in the production process of sintered bricks with coal gangue, fly ash, shale, clay and sludge as the main raw materials. It has the functions of crushing, grinding, kneading and mixing. After the raw materials are milled and processed by this machine, the comprehensive technological properties of the raw materials can be significantly improved, and higher quality sintered products can be produced.

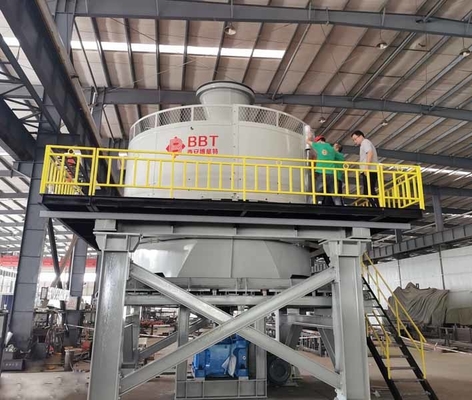

Material Crushing Wet Pan Mill Machine For Clay Brick Making Line 1

Wet pan mill of technical parameters:

No.	Item	TWPM185	TWPM200
1	Roller size	1850700mm diameterwidth	2000900mm diameterwidth
2	Rotate speed for main shaft	≥13 rpm	≥13 rpm
3	Motor Power	90+2.2+2.2+1.5kw	142kw
4	Effective diameter of rollers	1850mm	2000mm
5	Rotating speed	≥29rpm	≥29rpm
6	Diameter for screen hole	Customized building	Customized building
7	Production capacity	40-50 m³/h	60-90 m³/h
8	Total weight of equipment	65200 kg	70000 kg
9	Dimensions	530046006500mm	670065006700mm

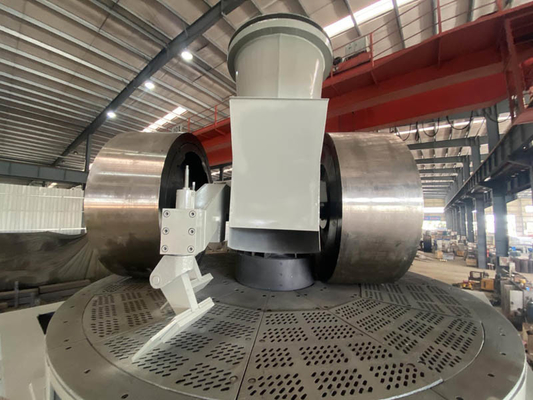

Material Crushing Wet Pan Mill Machine For Clay Brick Making Line 2

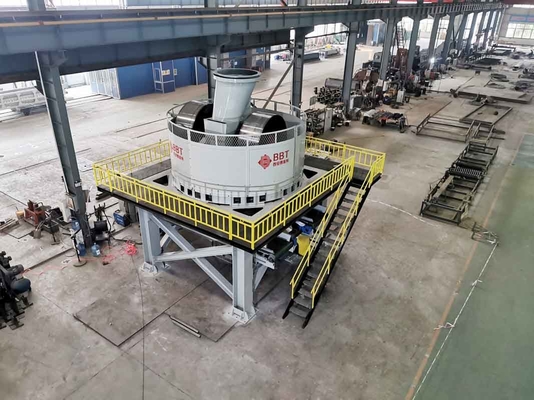

Material Crushing Wet Pan Mill Machine For Clay Brick Making Line 3

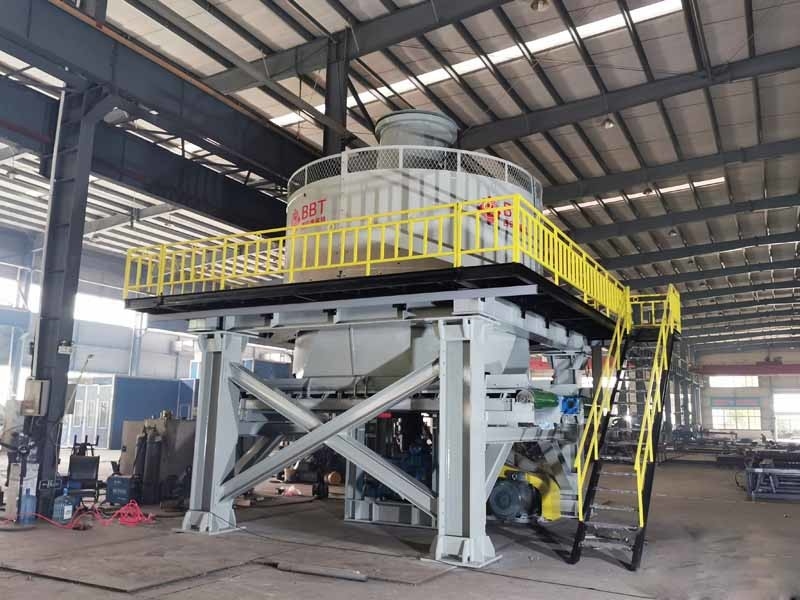

Material Crushing Wet Pan Mill Machine For Clay Brick Making Line 4

Wet pan mill in fully automatic clay brick production line

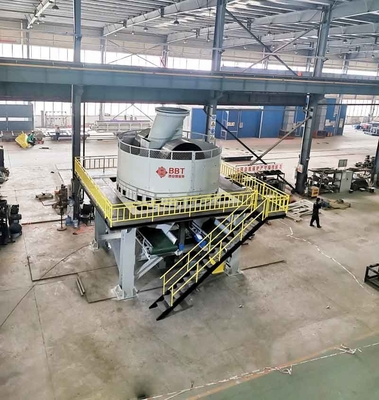

Material Crushing Wet Pan Mill Machine For Clay Brick Making Line 5
