Clay Brick Crusher Roller Machine Energy Saving Production Capacity 35 - 80m³/H
Clay Brick Crusher Roller Machine
,Energy Saving Crusher Roller Machine
,Energy Saving Roll Mill Crusher
Clay Brick Production Line Of Roller Crusher Production Capacity 35-80m³/H

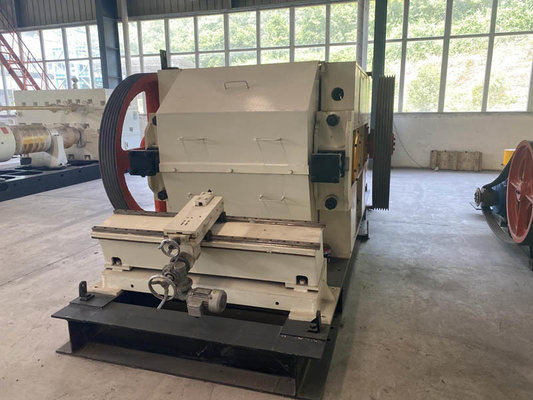

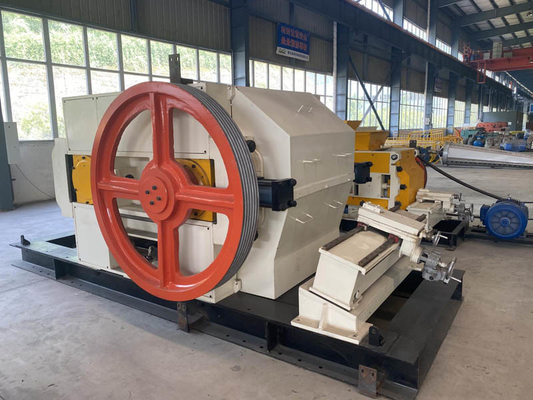

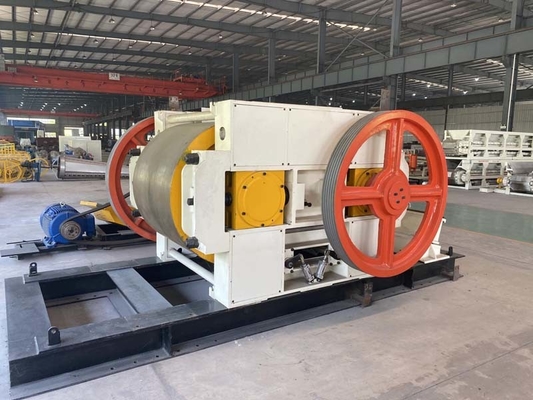

Roller Crusher
This machine is one of the main equipment to process raw material of brick production line. Which is suitable for brick making raw materials with relative moisture content not higher than 25% and crushed to less than 3mm, It has the characteristics of energy saving, ensure the size of the material, high production efficiency, low noise and less dust. Energy saving is 50% than traditional crusher
Technical Parameters
| No. | Model | GS1080 | GS1210 | GS1412 |
| 1 | Size of roll(diameter * width) | 1000*800mm | 1200*1000mm | 1400*1200mm |
| 2 | Hardness of roll | ≥53HRC | ≥57HRC | ≥57HRC |
| 3 | Thickness of roll surface | ≥140mm | ≥160mm | ≥160mm |
| 4 | Space of roll | ＜1.5 | ＜1.5 | ＜1.5 |
| 5 | Power | 55+75(90)kw | ≤110+75kw | 160+90kw |
| 6 | Linear speed of roll | 18.415.5m/s | 18.415.5m/s | 18.415.5m/s |
| 7 | Production capacity | 35-50m³/h | 45-65m³/h | 60-80m³/h |
| 8 | Weight | 14,800kg | 23,000kg | 34,000kg |
| 9 | Dimension | 6,200*4,000*1,700mm | 6,800*4,460*2,860mm | 7,800*6,500*2,300mm |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
