Raw Materials Crush Equipment Roller Crusher For Clay Brick Production Line

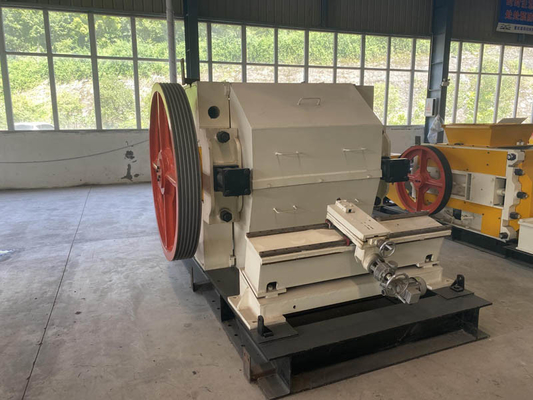

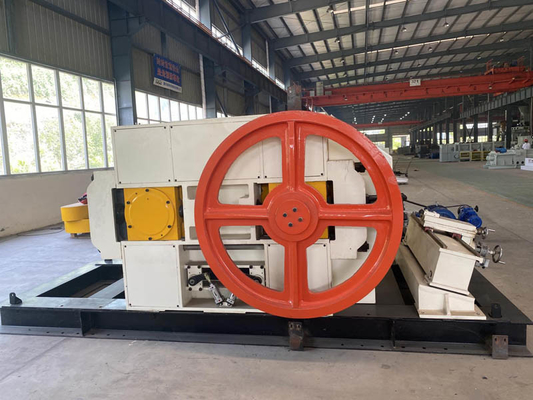

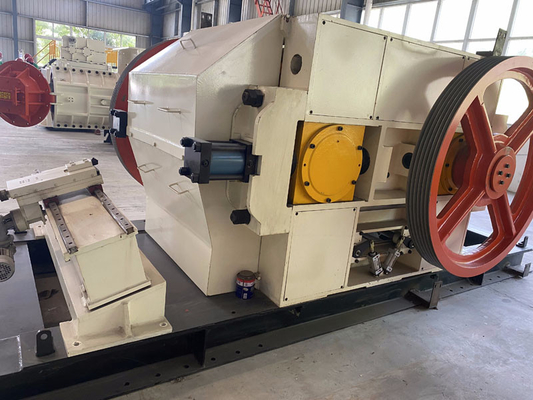

Roller Crusher
The high-efficiency fine crusher is a fine crusher for medium-hardness materials developed by absorbing advanced machinery technology at home and abroad, combined with the specific working conditions of the domestic cement industry, mining, mineral processing, and building materials enterprises. The comprehensive effect is stronger than that of the cone crusher. There are five advantages of design. Namely: high linear speed, wear-resistant parts material, body structure, the design of the grate plate, the impact of rigid hard extrusion and crushing, fully realized the effective control of discharge The particle size is stable for a long time, and it has the characteristics of high crushing efficiency, extremely low power consumption, good dust resistance, long life of easy parts, low cost of accessories, high operation rate, and easy maintenance.
Technical Parameters
| No. |
Model |
GS1080 |
GS1210 |
GS1412 |
| 1 |
Size of roll(diameter * width) |
1000*800mm |
1200*1000mm |
1400*1200mm |
| 2 |
Hardness of roll |
≥53HRC |
≥57HRC |
≥57HRC |
| 3 |
Thickness of roll surface |
≥140mm |
≥160mm |
≥160mm |
| 4 |
Space of roll |
＜1.5 |
＜1.5 |
＜1.5 |
| 5 |
Power |
55+75(90)kw |
≤110+75kw |
160+90kw |
| 6 |
Linear speed of roll |
18.415.5m/s |
18.415.5m/s |
18.415.5m/s |
| 7 |
Production capacity |
35-50m³/h |
45-65m³/h |
60-80m³/h |
| 8 |
Weight |
14,800kg |
23,000kg |
34,000kg |
| 9 |
Dimension |
6,200*4,000*1,700mm |
6,800*4,460*2,860mm |
7,800*6,500*2,300mm |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
