Product Summary
Full-Automatic Sintered Brick Production Line & Tunnel Kiln Engineering Design for Middle East Auto oil fired brick kiln clay brick tunnel kiln in red brick production line Clay Brick Tunnel Kiln The tunnel kiln is equipped with a smoke exhaust system, circulating system, waste heat recovery system, ...
Product Custom Attributes
Highlight

Red brick clay brick tunnel kiln

,

Full automatic clay brick tunnel kiln

,

Bangladesh India clay brick tunnel kiln

Description:
Customized Tunnel Kiln Brick Factory Process Design For Iran, Iraq And Afghanistan Markets
Firing Cycle:
52hr
Firing Yield:
98%
Fuel For Brick Firing:
Gas, Oil ,coal ...
Tunnel Kiln Technical Data:
4.6m,6.9m,7.2m,9.6
Design:
China BBT
Product Description
Detailed Specifications & Features

Full-Automatic Sintered Brick Production Line & Tunnel Kiln Engineering Design for Middle East

Auto oil fired brick kiln clay brick tunnel kiln in red brick production line

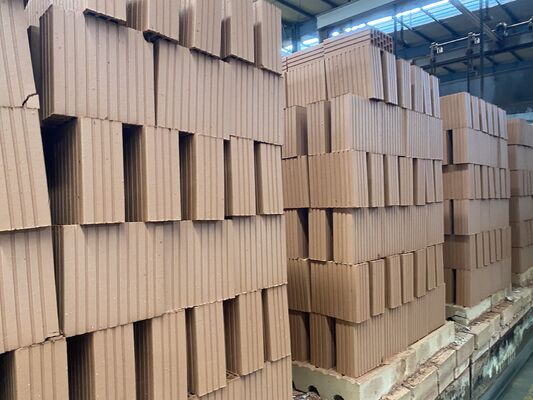

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 0



Clay Brick Tunnel Kiln

The tunnel kiln is equipped with a smoke exhaust system, circulating system, waste heat recovery system, cooling system and pressure balancing system.
It features large cross-section, high output, small temperature difference across the section and excellent thermal insulation performance.
In addition, an automatic kiln control system is adopted to maintain stable firing thermal parameters, thus ensuring high-quality sintering of bricks.

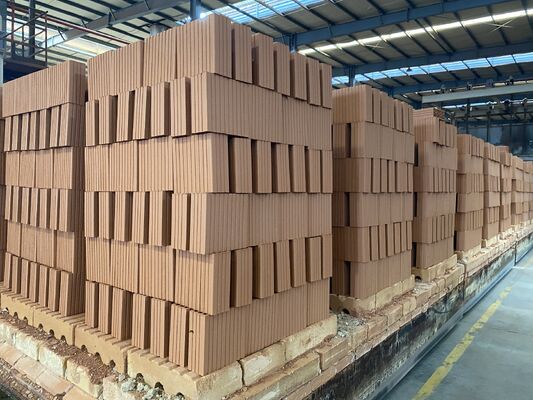

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 1



Automatic Brick Factory Tunnel Kiln Project

This tunnel kiln is equipped with smoke exhaust system, recycling system, waste heat recovery system, cooling system and pressure balancing system.

It features large cross-section, high capacity, uniform temperature distribution and excellent heat insulation effect.

With an automatic control system, it maintains stable firing parameters and ensures consistent and high-quality brick production.



Tunnel Kiln Structure

The preheating zone and cooling zone (temperature below 200°C) are lined with red bricks.

The firing zone and the inner wall of the insulation zone are lined with clay refractory bricks, while clay insulating bricks are used in the insulation layer.

High-temperature refractory fiber felt (for areas above 600°C) or rock wool felt is used for filling, with red bricks for the external wall.

For the kiln roof:

Cast-in-place concrete slabs are used at the low-temperature sections on both sides.

Other parts adopt clay refractory panels suspended from H-beams.

A composite insulation layer consisting of high-aluminum cotton, refractory fiber felt, rock wool felt and rock wool board is installed on the refractory panels.


High-aluminum fiber and high-temperature binder are used to seal gaps between roof panels and coat the insulation layer, ensuring tight sealing and structural durability.

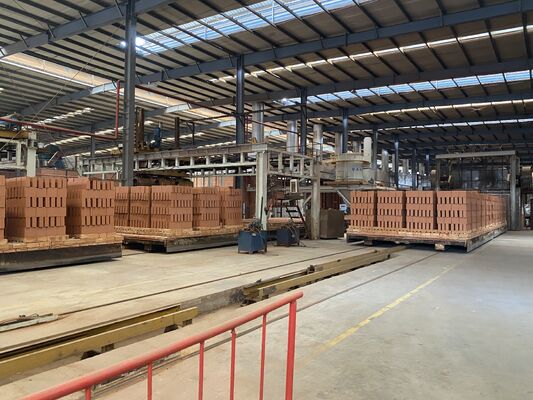

Automatic Clay Brick Plant with Tunnel Kiln Project Design for Iran, Iraq, Afghanistan



Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 2



Tunnel Kiln with Natural Gas Combustion System

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 3



Coal-Fired Tunnel Kiln

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 4



Clay brick tunnel kiln of technical parameters:

Specification Model Numbers Output Capacity (Pcs/day) Land Covering Required Outer Size (m)
Tunnel Kiln + Dryer 2.5m Section 50000 140×50m 110.8×4.3×2.34
8 Channels 61×9.6×1.5
3.6m Section 80000～100000 170×65m 134.2×5.4×3.6
12 Channels 67.6×19.22×1.5
4.6m Section 100000～120000 180×70m 143.5×6.4×3.33
14Channels 65.5×25.24×3.285
6.9m Section 150000～180000 200×120m 153.5×8.7×3.33
20 Channels 65.5×25.24×3.285



BBT Provide of Full-Automatic Sintered Brick Production Line & Tunnel Kiln Engineering Design for Middle East
