Synchronous Red Brick Wall Cutting Machine Semi Automatic Clay Brick Making Machine
Synchronous Brick Wall Cutting Machine
,Hydraulic Pressure Brick Wall Cutting Machine
,Automatic Red Brick Cutting Machine

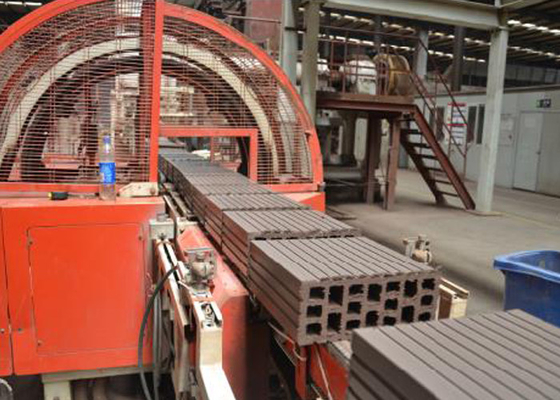

Synchronous Red Brick Wall Cutting Machine semi automatic clay brick making machine
Auto brick cutting machine clay brick cutter red brick making machine brick wall cutting machine
This model is the most commonly used. The pneumatic column cutting machine is combined with the super blue brick cutting machine to realize unmanned operation and save labor when encountering an automatic system failure.
This brick cutter is suitable for a wide range of applications, such as soft extrusion, semi-hard extrusion and hard extrusion of clay, coal gangue, fly ash, shale mud.
Automatic Clay Brick Production Line Clay Brick Cutting Machine Machinery
Technical parameters of clay brick cutting machine
| No. | Item | Power (kw) | Speed and specifications | Dimension (mm) |
| 1 | Automatic column cutter | 1.1+0.75 | cutting length:1800mm-2000mm | Custom building |
| 2 | Acceleration belt bench | 1.5 | 0-1m/s | Custom building |
| 3 | 90°lifting reversing bench | 2.2+1.5+1.1 | 1m/s | Custom building |
| 4 | Automatic green brick cutter | 5.5+1.1 |
cutting length 190mm, 8 bricks/time Cutting cycle 6-8 times/min Maximum cutting height 240 mm Maximum cutting width 520 mm |
|
| 5 | Electrical control boards for above machines | / | / | Custom building |
