Full Automatic Brick Cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008
Clay Block Cutter Machine
,ISO9001:2008 Block Cutter Machine
Full Automatic Clay Brick Cutter Machine With Good Quality Brick Cutting Machine
Full Automatic brick cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008
This model is the mostly used. A combination of pneumatic column cutting machine and super green brick cutter, that realizes the operation without workers so that it can save labours and when meets one automatic system failur.
This brick cutter is suitable to a wide range, such as clay, coal gangue, fly ash, shale mud soft extrusion, semi-stiff extrusion and stiff extrusion.
Fully automatic clay brick making line clay brick cutter machinery
Technical parameters of clay brick cutting machine
| No. | Item | Power (kw) | Speed and specifications | Dimension (mm) |
| 1 | Automatic column cutter | 1.1+0.75 | cutting length:1800mm-2000mm | Custom building |
| 2 | Acceleration belt bench | 1.5 | 0-1m/s | Custom building |
| 3 | 90°lifting reversing bench | 2.2+1.5+1.1 | 1m/s | Custom building |
| 4 | Automatic green brick cutter | 5.5+1.1 |
cutting length 190mm, 8 bricks/time Cutting cycle 6-8 times/min Maximum cutting height 240 mm Maximum cutting width 520 mm |
|
| 5 | Electrical control boards for above machines | / | / | Custom building |

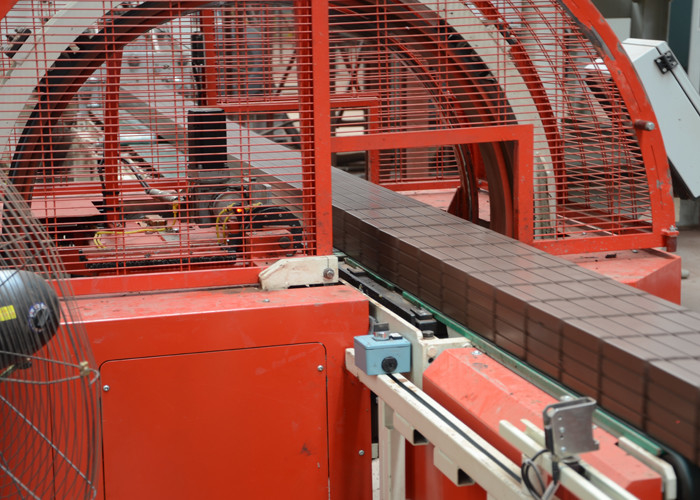

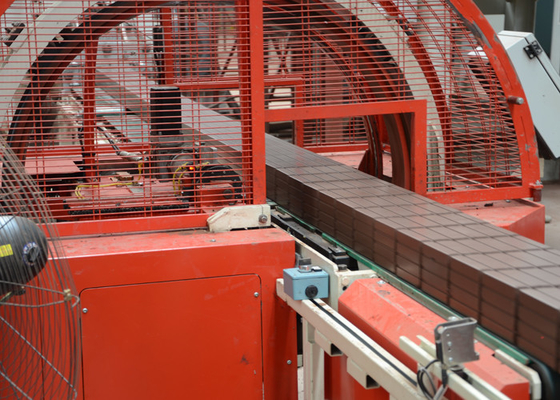

Full Automatic brick cutter Clay Block Cutter Machine
Clay brick cutting machine shipment

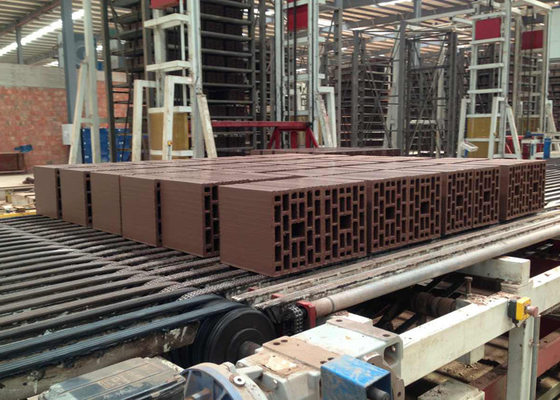

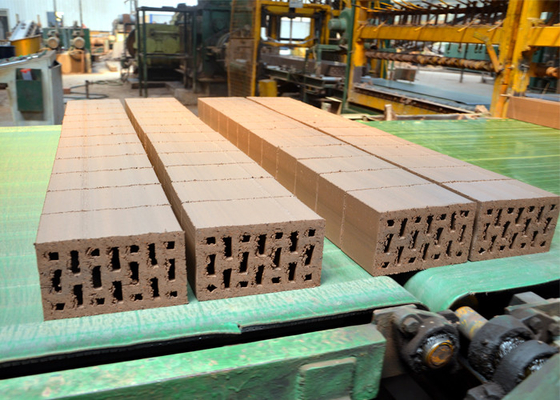

Clay brick cutting machinery in auto brick making line
