Fully Automaric Clay Brick Dryer Machine Tunnel Kiln Drying System

Fully automaric Clay Brick Dryer Machine Tunnel Drying System hollow block making machine

Full automaric clay brick tunnel drying system for brick drying Clay brick tunnel drying system block dryer machine with tunnel kiln

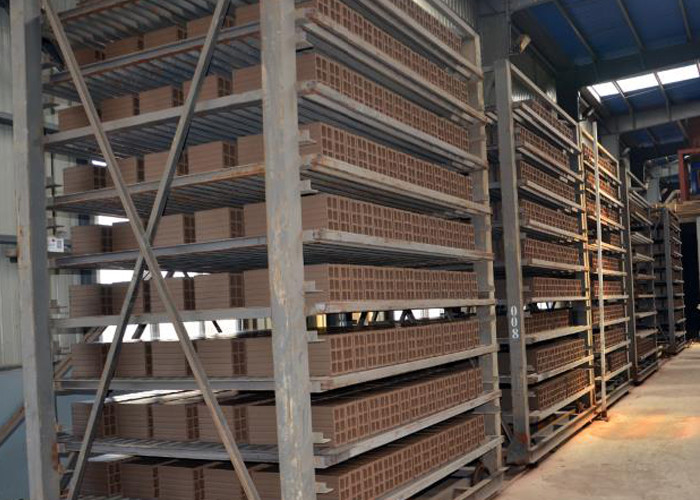

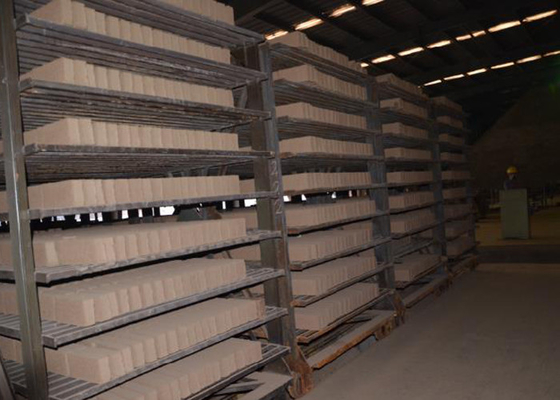

Drying chamber of system & construction

Drying chamber adopts tunnel dryer (83.65x22.625m). The high temperature fan and low temperature fan of Tunnel Kiln is able to recycle and collect the residual Tunnel Kiln heat and transferred to Dryer, it goes via the heating fan in the dryer beginning to rotating fan, then goes into dryer and bricks through mechanical properties. Moisture will be removed by moisture exhaust fan, so as to ensure the drying quality of green bricks. Well-dried bricks will be unloaded from drying cart by unloading system and re-stacking on the marshalling transfer bench, then the well-dried bricks will be stacked on the kiln cart by stacking machine and sent to tunnel kiln by ferry car.

The heat source of drying chamber is the waste heat from tunnel kiln, which will be supplied to drying chamber through external pipe system. The drying chamber includes airing system, moisture exhausting system, operation system and monitoring system, besides the monitoring system, the airing and exhausting system are made of metal pipe and related fans. As all the air brakes and adjust switch are set outside of the drying chamber.

Fully automaric Clay Brick Dryer Machine Tunnel Drying System hollow block making machine

Major Technological Parameters for Tunnel Drying Chamber

1). Total length: 83.65meter

2). Carts contained in the dryer: 138pcs

3). Inner width: 22.125m

4). Inner height: 5.315m

5). Loading capacity per cart: 600pcs (150x200x300 hollow bricks)

6). Air-supplying temperature: 110～130℃

7). Air-exhausting temperature: 28℃

8). Moist-releasing humidity: 75~90%

9). Drying yield: 99%

10). Drying cycle: 22~26 hours

11). Daily Output: 400 tons

12). Thermal consumption index: 180Kal/kg

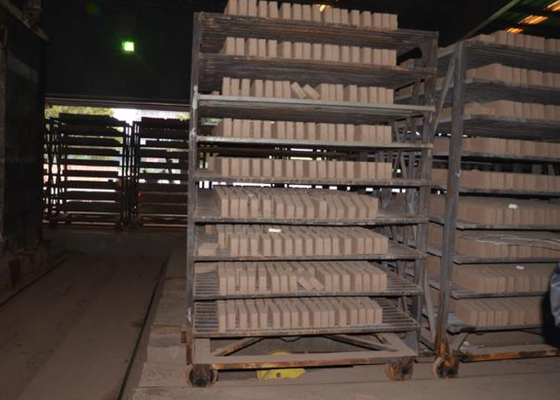

13). Drying cart specification: 2920x2600x4795 mm

14). Drying chamber outer dimension: 83.65×22.625×5.565m(L×W×H)
