Customized Minerals Processing Equipment 220V / 380V Double Rotor Hammer Crusher

Customized Minerals Processing Equipment 220V / 380V Double Rotor Hammer Crusher
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO9001:2008
Model Number: Different models are available
Trading Properties
Minimum Order Quantity: 1 Set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Sets/45 days
Tags:

Minerals Processing Equipment

Double Roller Minerals Processing Equipment

Double Roller Crusher Hammer Mill
Product Summary
Dual-Rotor Hammer Crusher for Materials Crushing and Minerals Processing Equipment Technical Parameters of Dual-Rotor Hammer Crusher for Materials Crushing and Minerals Processing Equipment. We can also supply customized equipment. Item Unit HC1200*2A HC800*2A Production capacity t/h 90-150 70-90 ...
Product Custom Attributes
Highlight

Customized Minerals Processing Equipment

,

Minerals Processing Equipment 380V

,

220V Double Rotor Hammer Crusher

Condition:
New
Warranty:
2 Years(except The Parts)
Voltage:
220V/380V, 220V / 380V, 3P/ Customized
Type:
Processing Production Line
Application:
Mineral Processing, Making Powder, Mining Equipment
Usage:
Brick Making, Mining
Installation:
Technical Guidance, Engineer's Guidance/ EPC
Color:
Customers' Requirements, White
Product Description
Detailed Specifications & Features

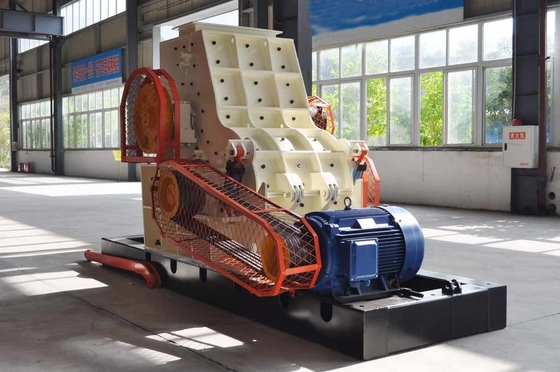

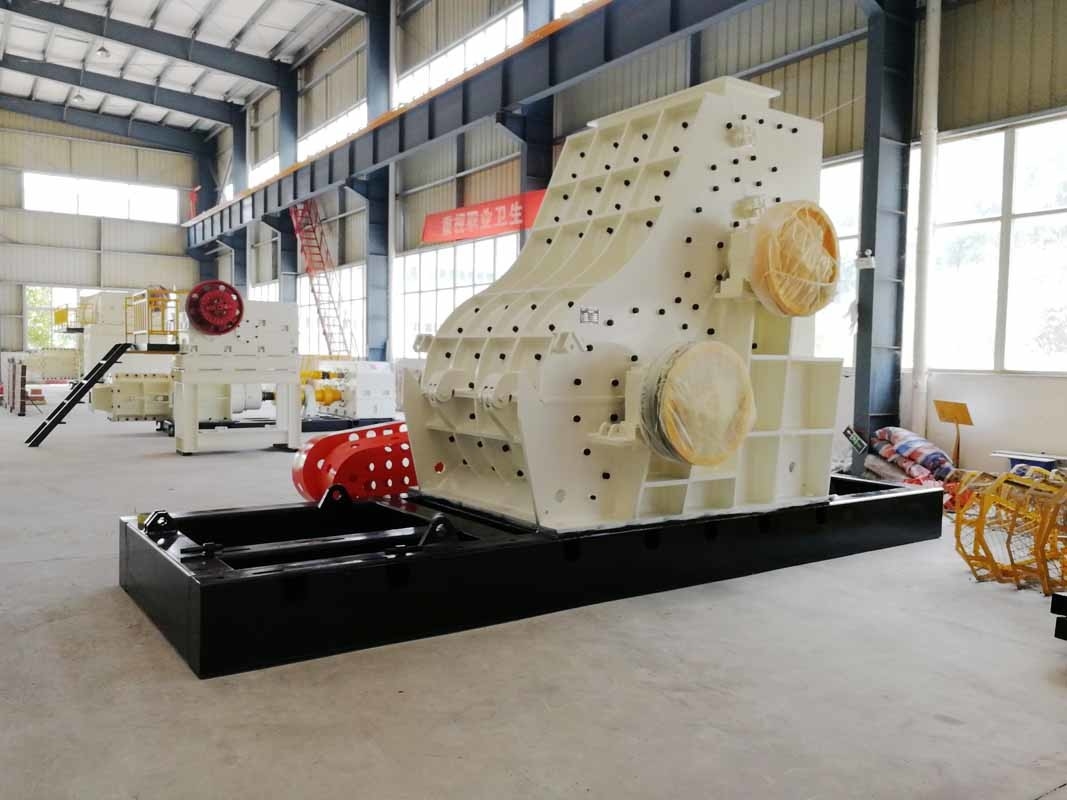

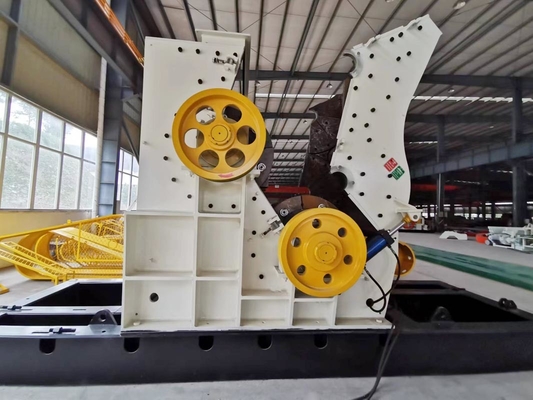

Dual-Rotor Hammer Crusher for Materials Crushing and Minerals Processing Equipment




Technical Parameters of Dual-Rotor Hammer Crusher for Materials Crushing and Minerals Processing Equipment. We can also supply customized equipment.



Item Unit HC1200*2A HC800*2A
Production capacity t/h 90-150 70-90
Materials feeding size mm ≤200 ≤200
Materials outlet size mm ≤3 ≤3
Required power Kw 160+160 90+90
Approximate weight Kg 24,000 10,000
Total length mm 5,727 4,234
Total width mm 2,510 1,920
Total Height mm 3,200 4,959





Applications of Dual-Rotor Hammer Crusher for Materials Crushing and Minerals Processing Equipment in Brick Making Factory in China.



Customized Minerals Processing Equipment 220V / 380V Double Rotor Hammer Crusher 0



1. Q: What is the functions of Dual-Rotor Hammer Crusher?

     A: the dual-rotor hammer crusher is mainly used for crushing coal gangue, shale and other hard materials in clay brick making production line or other minerals industries.



2. Q: What is the main part of Dual-Rotor Hammer Crusher?

    A: the key part of Dual-Rotor Hammer Crusher is hammers, lining plate, motor .


3. Q: What is the advantagers of Dual-Rotor Hammer Crusher from BBT, China?

    A: The equipment is made of full-steel structure.

        It is designed as upper and lower rotor, and then the material hitting distance is longer.
       The casing is opened by hydraulic top, which is convenient and quick to replace the wearing parts.
       The body is equipped with a sealing strip to reduce dust at maximum. .
       The equipment designed without sieve plate, so that the leakage effect is good, and not blocked by the raw material.
       The hammer heads and lining plate are made of high chromium alloy, which improves the service life and reduces the replacement frequency.



4. Q: Why choose BBT, China as suppliers of Dual-Rotor Hammer Crusher?

    A: BBT,China has more than 15 years experience in machinery supplier for brick making industry and Minerals processing

        BBT,China has own Technical R&D team, we can meet your specific requirements for machines

        BBT,China has own manufacturing base with 39996m2 lands.

        BBT,China has more than 15 years experience in global marketing, professional overseas services are provided.



5. Q: What is BBT,China supply?

    A: Key equipment in materials processing: Hammer Crusher, Double-toothed Roller Crusher, Wet Pan Mill, Roller Mill, Extruder-mixer

        Fully automatic cutting, marshalling, stacking, loading and unloading Equipment(especially for brick making factory)

       Process design of directing setting, twice setting technology for clay brick making factory
