Customizable Clay Brick Making Machine for Hollow/Solid Brick

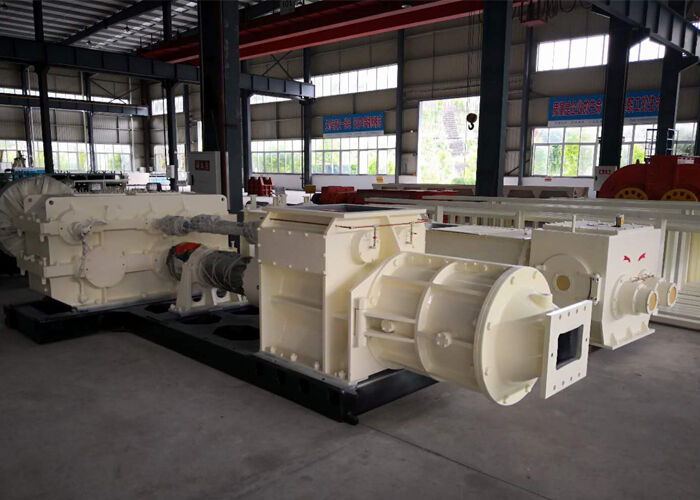

Vacuum extruder for clay brick making line machine
The machine is suitable for continuous extruding of wet clay and is a key functional machine in the molding section of brick production line.
The mud bar extruded by the equipment has a smooth and compact surface, good quality, large extrusion output, easy operation, stable operation and good reliability.
The machine can produce solid brick, hollow brick, porous brick, hollow block and other brick.

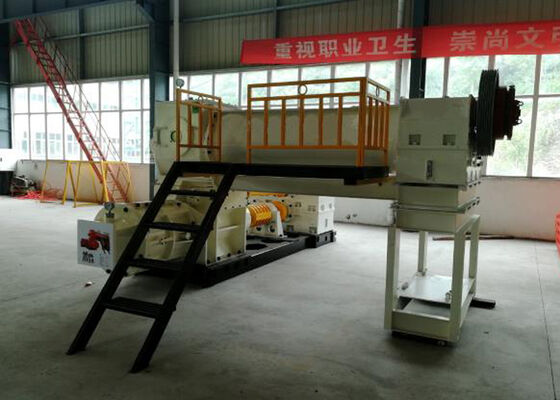

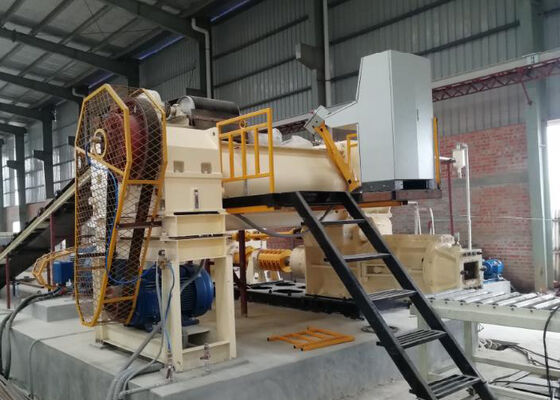

The machine is composed of upper mixing part, vacuuming part and lower extruding part.
The extruder body is welded with high quality steel plate, and the residual stress inside the parts is removed after aging treatment, which increases the hardness and strength. The structure design of the extruder is reasonable, the machine body is solid, stable, reliable and durable. Low energy consumption, high production efficiency and easy maintenance.
The extruder can be equipped with digital automatic monitoring system to provide a strong guarantee for the continuous and stable work of the machine.
High Output Clay Brick Making Machine with Vacuum Extruder of shipment to customer
Clay brick making machine vacuum extruder of technical parameters:
| No. |
Model |
EV50A |
EV55A |
EV60A |
| 1 |
Code |
IBS062-0205 |
IBS062-0206 |
IBS062-0202 |
| 2 |
Production capacity |
10,000-13,000pcs/h(250*110*75mm) |
11,000-15,000pcs/h(250*110*75mm) |
13,000-19,000pcs/h(250*110*75mm) |
| 3 |
Extrusion pressure |
≤3.0Mpa |
≤3.0Mpa |
≤4.0Mpa |
| 4 |
Vacuum degree |
≤-0.092 |
≤-0.092 |
≤-0.092 |
| 5 |
Rotate speed of extruding shaft |
25rpm |
24rpm |
20rpm |
| 6 |
Diameter of reamer |
Material transporting part :500mm
Extruding part :450mm
|
Material transporting part :550mm
Extruding part :500mm
|
Material transporting part :600mm
Extruding part :600mm
|
| 7 |
Vacuum pump |
2SK-6 |
2SK-6 |
2SK-12 |
| 8 |
Reducer |
Upper stage:i=12.64
Lower stage :i=21.3
|
Upper stage :i=12.64
Lower stage :i=21.3
|
Upper stage :i=20.49
Lower stage :i=24
|
| 9 |
Triangle belt |
Upper stage:5V-4600*6
Lower stage:5V4800*10
|
Upper stage:5V-4600*6
Lower stage:5V4800*10
|
Upper stage:5V-4600*6
Lower stage:5V4800*10
|
| 10 |
Power |
160+55kw |
200+55kw |
250+75kw |
| 11 |
Dimension |
Upper stage: 4,400*2,200*1,250mm
Lower stage: 5,600*1,800*2,500mm
|
Upper stage: 4,700*2,200*1,250mm
Lower stage: 4,700*1,800*2,600mm
|
7,500*2,900*2,800mm |
| 12 |
Weight |
17,500kg |
18,500kg |
30,000kg |
We also have other complete sets of automated clay brick making production line equipment to recommend to you:
BBT supply following clay brick production line machinery and equipment :
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
