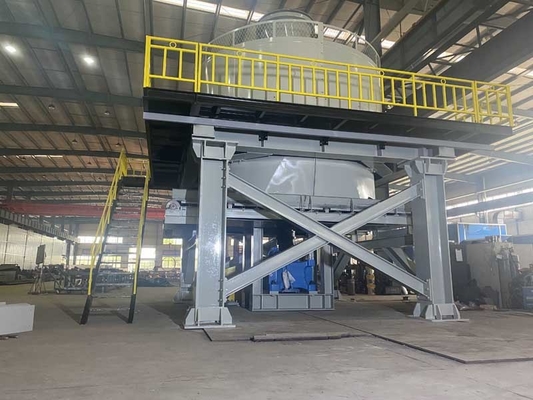

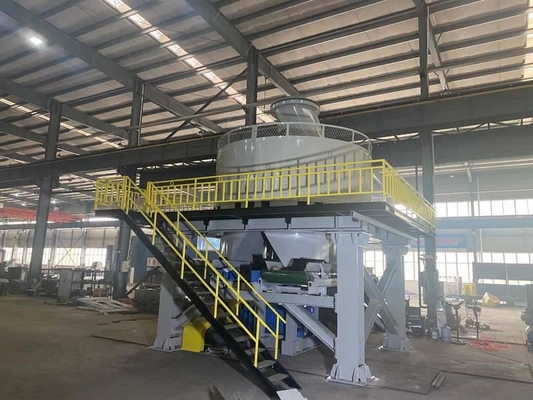

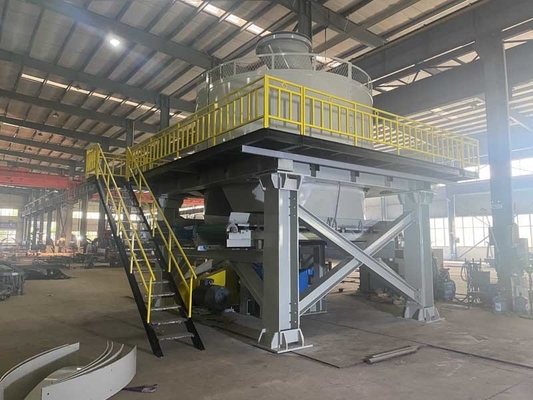

Wet Pan Mill for processing material in clay brick production line
Wet Pan Mill is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it is in a leading position in domestic similar products. The machine is reasonable in structure, stable in operation, low in failure rate and easy to use and maintain. It is mainly used for raw material processing in the production process of sintered bricks with coal gangue, fly ash, shale, clay and sludge as the main raw materials. It has the functions of crushing, grinding, kneading, mixing and so on. After the raw materials are ground and processed by this machine, the comprehensive technological performance of the raw materials can be significantly improved, and higher quality sintered products can be produced.
Key Parts
Sieve plate
Raw material for the sieve plate is high manganese steel, module designing, anti-wearing and also can be removed with new spare easily.
Mill
The roller adopts a structure that the roller skin is separated from the hub, which is connected as a whole by a wedge-shape key; it is convenient to replace the skin when needs.
Roller skin
Thickness of the roller skin is 150 mm, made of high-manganese-chromium alloy steel, which is high-strength and wear-resistance
Pan
It is the lattice structure which welded by steel wool, which is stronger and could bear huge impact compaction.
Structure support
There is polyurethane shock-absorbing pad between the platform and reducer, which is used to absorb the impact force and vibration of the equipment during operation.
Note: Structure supporting and maintenance platform are optional and
customers can weld in the local.
Main shaft
The main shaft is made of alloy steel forgings, and has been heat treated, which has high strength;
Fatigue resistance and can bear large radial eccentric forces.
Motor&reducer
A torque-limited and hydraulic coupling is used for power transmission between the main engine motor and the input shaft of the reducer, which effectively protect the reducer and the motor from the impact on the mechanical parts when working at full load; the main reducer is equipped with a forced lubrication system and cooling fan.
Structures of Pan Mills Supplier and Manufactures for Wet Materials Processing Grinding
The rolling mechanism is simple to build, easy to maintain, not strict with feeding size requirements, equipment self-weight, strong overall rigidity, impact resistance, and safe and stable equipment operation.
The hydraulic coupling is used to realize the power transmission between the motor and the reducer, the starting impact is small, and the reducer can provide overload protection and prolong the service life.
The inspection door open/close detection switch is interlocked with the main motor start/stop switch to ensure that the maintenance personnel can maintain the machine when the machine is stopped.
Technical Parameters
| No. |
Item |
TWPM185 |
TWPM200 |
| 1 |
Roller size |
1850*700mm diameter*width |
2000*900mm diameter*width |
| 2 |
Rotate speed for main shaft |
≥13 rpm |
≥13 rpm |
| 3 |
Power |
90+2.2+2.2+1.5kw |
142kw |
| 4 |
Effective diameter of rollers |
1850mm |
2000mm |
| 5 |
Rotating speed |
≥29rpm |
≥29rpm |
| 6 |
Diameter for screen hole |
Customized building |
Customized building |
| 7 |
Production capacity |
40-50 m³/h |
60-90 m³/h |
| 8 |
Total weight of equipment |
65200 kg |
70000 kg |
| 9 |
Dimensions |
5300*4600*6500mm |
6700*6500*6700mm |
