Anti Stripping Synthetic Refractory Brick Material Tunnel Kiln Fired Clay Bricks
Anti Stripping Refractory Brick Material
,Synthetic Refractory Brick Material
,Tunnel Kiln Fired Clay Bricks
Automatic Brick Tunnel Kiln Refractory Brick Material Price In Brick Production Line
Automatic brick tunnel kiln refractory brick material price in brick production line
Products description of Refractory Bricks in Clay Brick Plant Red Clay Brick Production Line Fired Bricks
Low thermal conductivity and anti-stripping brick, which is characterized by: synthetic low-conductivity and thermal-alkali-resistant raw materials, alumina fine powder, andalusite And bound clay as raw materials, mixed to make a mixed powder, and then added a binding agent to the mixed powder, pressed into shape, dried, and fired to obtain the low thermal conductivity anti-stripping brick.
Application of Refractory Bricks in Clay Brick Plant Red Clay Brick Production Line Fired Bricks:Tunnel kiln;Cement Kilns :Safety zone, Pre-heating /Calcining zone in rotary kiln.
Features of Refractory Bricks in Clay Brick Plant Red Clay Brick Production Line Fired Bricks : Outstanding resistance to alkali attack Excellent thermal-shock resistance Low thermal conductivity Decreasing the kiln shell load, the mechanical stress on the lining
Parameters of Refractory Bricks in Clay Brick Plant Red Clay Brick Production Line Fired Bricks : Outstanding resistance to alkali attack Excellent thermal-shock resistance Low thermal conductivity Decreasing the kiln shell load, the mechanical stress on the lining.
Applications of Refractory Bricks in Clay Brick Plant Red Clay Brick Production Line Fired Bricks in Brick Making Plant.
|
CHEMICAL COMPOSITION
|
SPEC | TYPICAL | ||
| Al2O3 |
|
% | ≤35 | 32-34 |
| SiO2 |
|
% |
|
62-64 |
| Fe2O3 |
|
% | ≤1.8 | 1.6 |
| PHYSICAL PROPERTIES |
|
|
SPEC | TYPICAL |
| Thermal Shock Resistance | TSR - in water at 1100 °C | cycle | ≥15 | 16 |
| Refractoriness Under Load | RUL (0.2MPa) | °C | ≥1310 | 1330 |
| Thermal Expansion | TE- 1000 °C | % |
|
0.6 |
| Cold Crushing Strength | CCS | MPa | ≥45 | 57 |
| Thermal Conductivity | TC - 700士25 °C | W/m.K | ≤1.5 | 1.5 |
| Alkali Resistance | 1100 °C*5h |
|
First grade
|
|

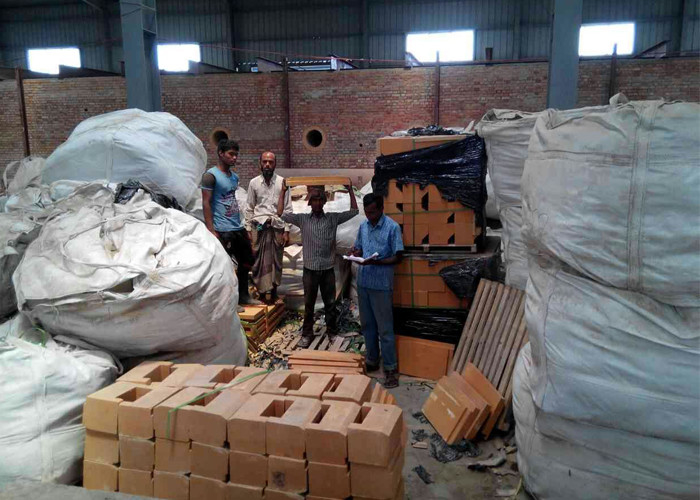

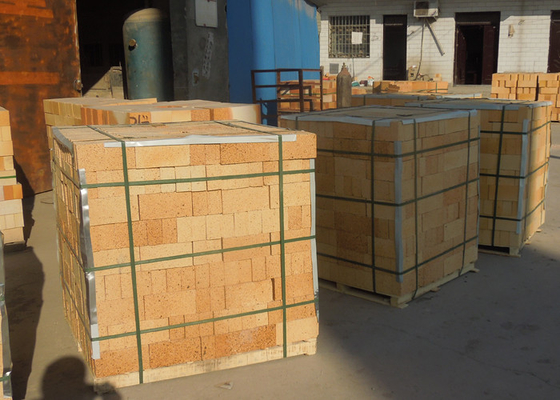

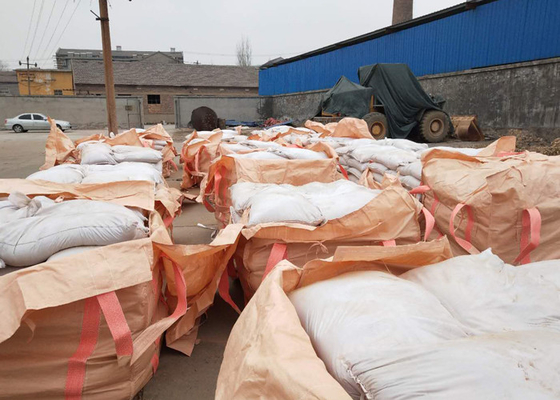

Clay brick tunnel kiln clay refractory brick material delivery
