Full Automatic Box Feeder Machine 380V / 440V In Brick Production Line

Clay brick box Feeder TCNL1045 for automatic clay brick production line

Full automatic brick factory box feeder machine TCNL1045 in auto brick production line

Automatic plate box feeder for materials storage and feeding for clay brick production line

1. The driving motor of the transmission system is the frequency type of speed regulation;

2. The feeding system is driven separately from the mud stick;

3. The completed machine has a reasonable structure, reliable performance, convenient maintenance, low running resistance and low energy consumption;

4. Equipped with manual adjustment gate. The feeding amount of the raw material can be controlled by adjusting the height of the gate and the speed of the motor;
5. For the mud stick can choose different structures and types, in addition to the material shifting functions, it can also break up larger block of soft mud;

6. The conveying arc-shaped scraper is made of manganese steel, and the center in the bottom is supported by rollers, which has good rigidity, large bearing capacity and long service life;

7. The transmission structure adopts a shaft-mounted hard-tooth surface reduction motor, which has a large carrying capacity and a long service life;

Clay brick box feeder of technical parameters:

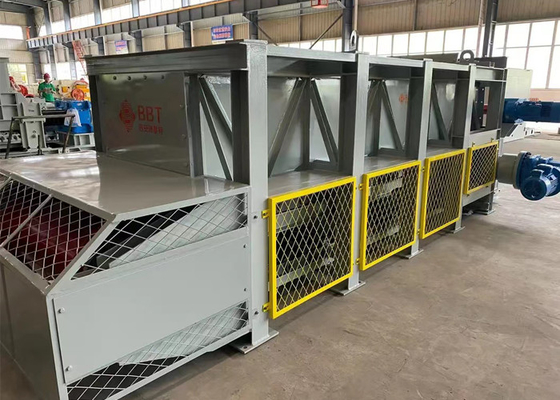

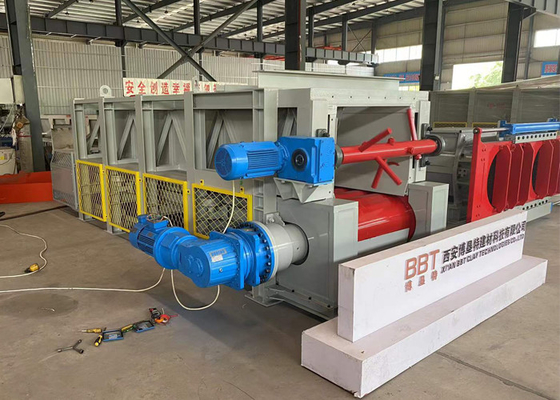

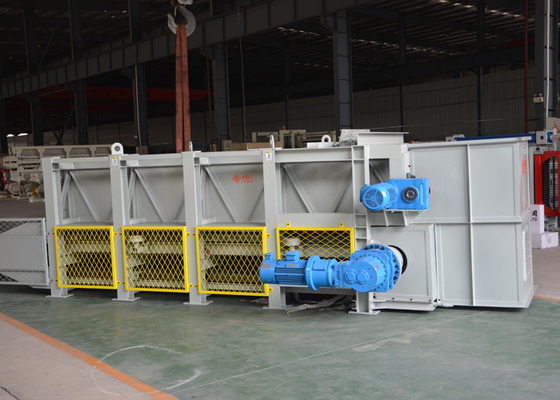

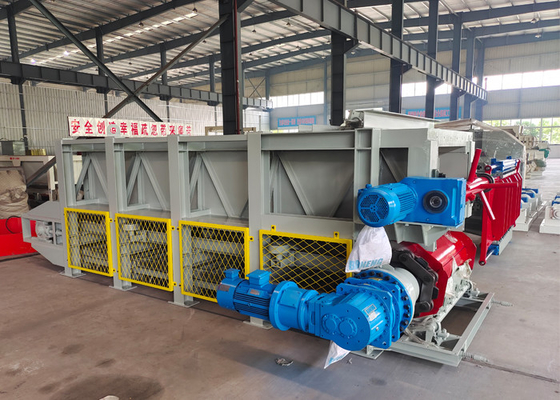

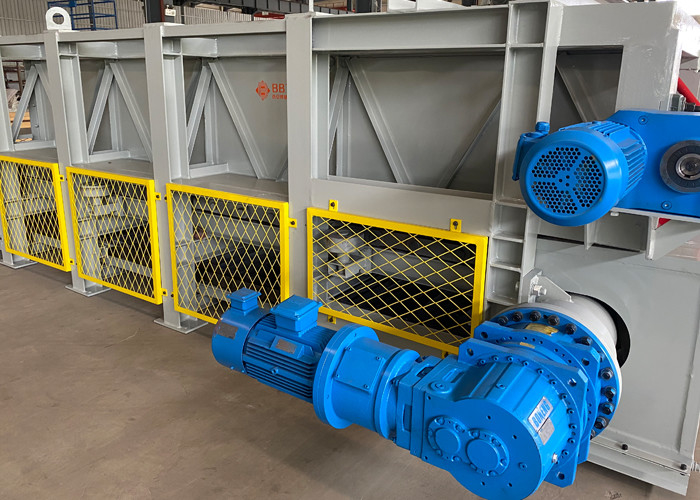

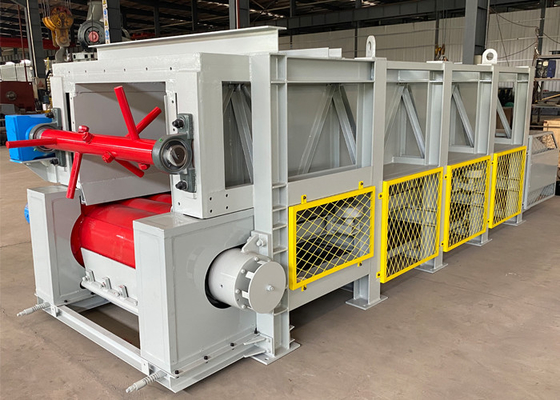

Clay brick box feeder manufactured in our factory:
