Fully Automatic Clay Brick Production Line Tunnel Kiln Brick Setting Machine
Fully Automatic Clay Brick Production Line Tunnel Kiln Brick Setting Machine
Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
1 set
Price:
Negotiation
Payment Terms:
L/C, T/T
Supply Ability:
10 sets per month
Product Summary
Clay brick production line fully automatic block making machine brick setting machinery tunnel kiln stacking bricks Red solid hollow block stacking by robot setting machine Robot setting machinery of Technological Parameters No. Item Parameters 1 Action form Vertical multiple joint 2 Degree of ...
Product Custom Attributes
Highlight
Fully Automatic Clay Brick Production Line
,ISO9001 Clay Brick Production Line
,Tunnel Kiln Brick Setting Machine
Item:
Clay Brick Production Line Fully Automatic Block Making Machine Brick Setting Machinery Tunnel Kiln Stacking Bricks
Brick Type:
Setting Solid Hollow Blocks
Working Way:
Setting Bricks
Loading Weight:
500kg
Degree Of Freedom:
4
Repeated Positioning Accuracy:
0.5mm
Maximum Speed:
1.48 Rad/s
Product Description
Detailed Specifications & Features
Clay brick production line fully automatic block making machine brick setting machinery tunnel kiln stacking bricks
Red solid hollow block stacking by robot setting machine
Robot setting machinery of Technological Parameters
| No. | Item | Parameters | |
| 1 | Action form | Vertical multiple joint | |
| 2 | Degree of freedom | 4 | |
| 3 | Load | 500kg | |
| 4 | Repeated positioning accuracy | 0.5mm | |
| 5 | Actuation range | S axis (Rotating) | 180° ~ -180° |
| L axis (Lower Arm) | 90° ~ -45° | ||
|
U axis (Upper Arm) ) |
15.5° ~ -120° | ||
| T axis (Wrist Rotation) | 360° ~ -360° | ||
| 6 | Maximum speed | S axis | 1.48 rad/s (85°/s) |
| L axis | 1.48 rad/s (85°/s) | ||
| U axis | 1.48 rad/s (85°/s) | ||
| T axis | 3.4 rad/s (195°/s) | ||
| 7 | The T-axis allows inertial torque | 200kg | |
| 8 | Robot weight | 2300kg | |
| 9 | Installation environment |
Temperature
|
0~45 ℃ |
| 10 | A conventional model weight | Humidity | 20-80% RH (Non-condensate) |
| Vibration acceleration | 4.9m/s2 (0.5G) | ||
| No flammable or corrosive gas or liquid | |||
|
Do not splash water, oil, dust
|
|||
| 11 | Power capacity | 9.5kVa | |

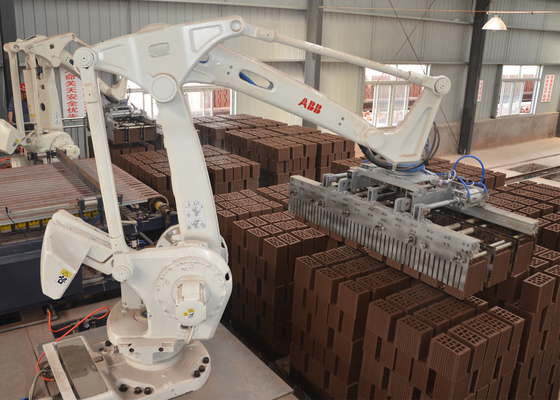

Robot setting clay bricks on dryer cart

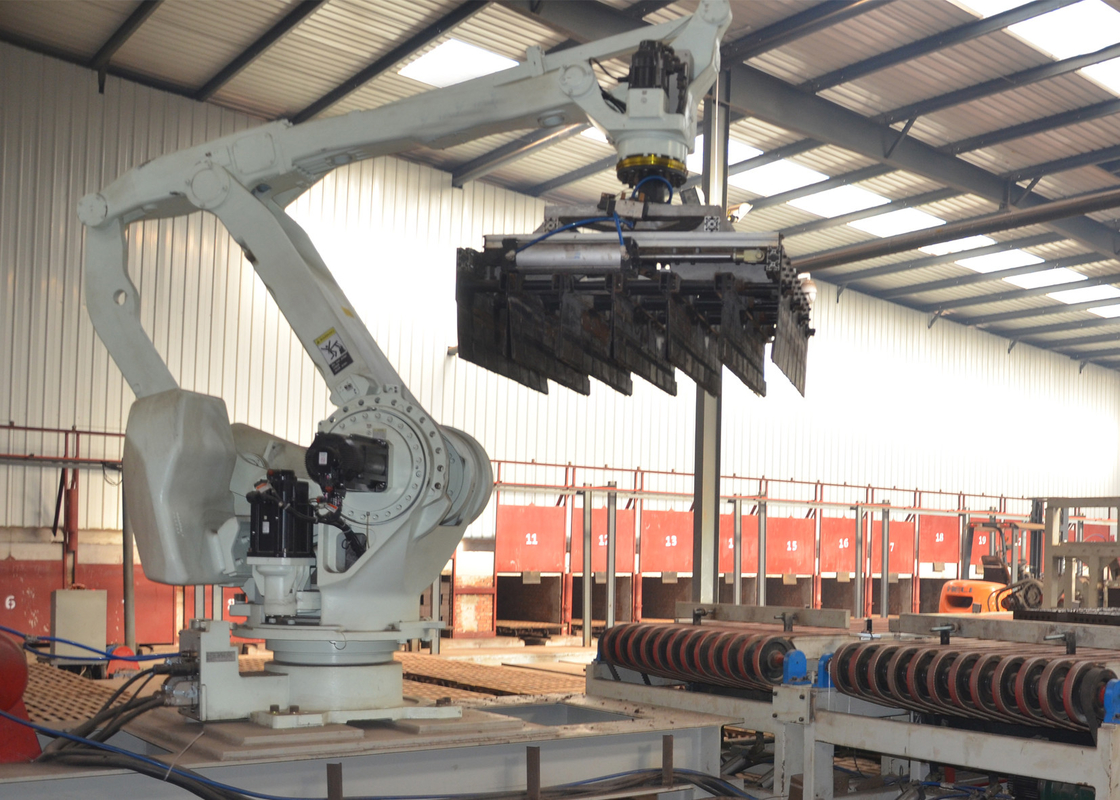

Robot stacking clay bricks tunnel kiln cart

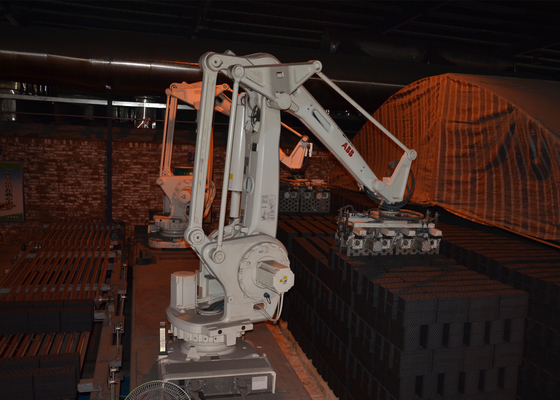

Clay brick stacking machinery for auto brick making line
