automatic clay brick block robot setting stacking machinery for clay brick production line
automatic clay brick block robot setting stacking machinery for clay brick production line
Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
1 set
Price:
USD 9500/SET
Payment Terms:
L/C, T/T
Supply Ability:
10 sets per month
Product Summary
automatic clay brick block robot setting stacking machinery for clay brick production line Red solid hollow block robot setting machine Application and Features 1.This machine is for green brick stacking. 2.Simple, reliable and flexible and easy control. Technological Parameters No. Item Parameters ...
Product Custom Attributes
Highlight
Automatic Clay Brick Block Robot
Item:
Automatic Clay Brick Block Robot Setting Stacking Machinery For Clay Brick Production Line
Product Description
Detailed Specifications & Features
automatic clay brick block robot setting stacking machinery for clay brick production line
Red solid hollow block robot setting machine
Application and Features
1.This machine is for green brick stacking.
2.Simple, reliable and flexible and easy control.
Technological Parameters
| No. | Item | Parameters | |
| 1 | Action form | Vertical multiple joint | |
| 2 | Degree of freedom | 4 | |
| 3 | Load | 500kg | |
| 4 | Repeated positioning accuracy | ±0.5mm | |
| 5 | Actuation range | S axis (Rotating) | +180° ~ -180° |
| L axis (Lower Arm) | +90° ~ -45° | ||
|
U axis (Upper Arm) ) |
+15.5° ~ -120° | ||
| T axis (Wrist Rotation) | +360° ~ -360° | ||
| 6 | Maximum speed | S axis | 1.48 rad/s (85°/s) |
| L axis | 1.48 rad/s (85°/s) | ||
| U axis | 1.48 rad/s (85°/s) | ||
| T axis | 3.4 rad/s (195°/s) | ||
| 7 | The T-axis allows inertial torque | 200kg | |
| 8 | Robot weight | 2300kg | |
| 9 | Installation environment |
Temperature
|
0~45 ℃ |
| 10 | A conventional model weight | Humidity | 20-80% RH (Non-condensate) |
| Vibration acceleration | 4.9m/s2 (0.5G) | ||
| Others | No flammable or corrosive gas or liquid | ||
|
Do not splash water, oil, dust Do not splash water, oil, dust
Do not splash water, oil, dust
|
|||
| No electrical noise source nearby | |||
| 11 | Power capacity | 9.5kVa | |

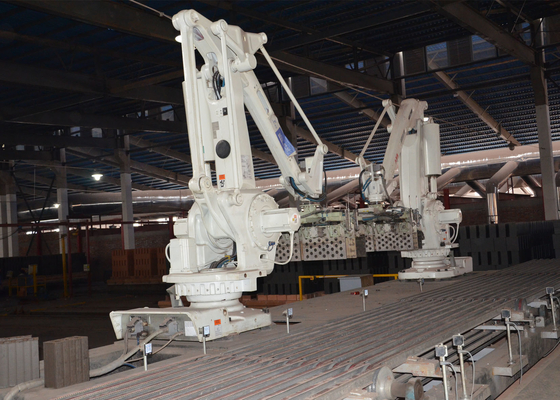

Robot setting clay bricks on dryer cart

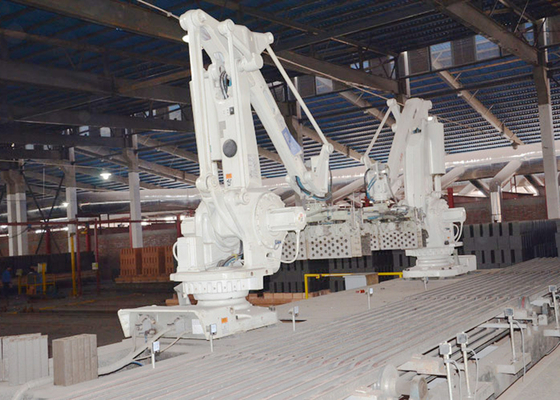

Robot stacking clay bricks tunnel kiln cart in automatic brick making project

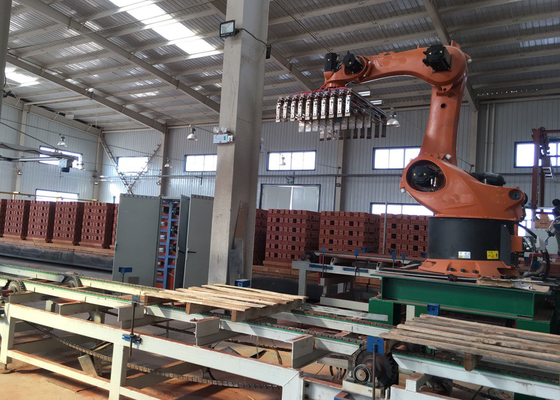

Clay brick stacking machinery for auto brick making line
