Fully Auto Clay Brick Stacking Machine For Hollow Blocks Different Capacity
Fully Auto Clay Brick Stacking Machine For Hollow Blocks Different Capacity
Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
1 set
Payment Terms:
L/C, T/T
Supply Ability:
10 sets per month
Product Summary
Fully auto clay brick stacking machine for hollow blocks setting equipment Red solid hollow block robot setting machine Application and Features 1.This machine is for green brick stacking. 2.Simple, reliable and flexible and easy control. Technological Parameters No. Item Parameters 1 Action form ...
Product Custom Attributes
Highlight
Different Capacity clay brick stacking machine
,Fully auto clay brick stacking machine
,Hollow Blocks clay brick stacking machine
Item:
Clay Brick Setting Stacking Machine
Brick Type:
Solid, Hollow
Capacity:
100000pcs/day
Robot Weight:
2300kg
Power Capacity:
9.5kva
Load:
500kg
The T-axis Allows Inertial Torque:
200kg
Product Description
Detailed Specifications & Features
Fully auto clay brick stacking machine for hollow blocks setting equipment
Red solid hollow block robot setting machine
Application and Features
1.This machine is for green brick stacking.
2.Simple, reliable and flexible and easy control.
Technological Parameters
| No. | Item | Parameters | |
| 1 | Action form | Vertical multiple joint | |
| 2 | Degree of freedom | 4 | |
| 3 | Load | 500kg | |
| 4 | Repeated positioning accuracy | ±0.5mm | |
| 5 | Actuation range | S axis (Rotating) | +180° ~ -180° |
| L axis (Lower Arm) | +90° ~ -45° | ||
|
U axis (Upper Arm) ) |
+15.5° ~ -120° | ||
| T axis (Wrist Rotation) | +360° ~ -360° | ||
| 6 | Maximum speed | S axis | 1.48 rad/s (85°/s) |
| L axis | 1.48 rad/s (85°/s) | ||
| U axis | 1.48 rad/s (85°/s) | ||
| T axis | 3.4 rad/s (195°/s) | ||
| 7 | The T-axis allows inertial torque | 200kg | |
| 8 | Robot weight | 2300kg | |
| 9 | Installation environment |
Temperature
|
0~45 ℃ |
| 10 | A conventional model weight | Humidity | 20-80% RH (Non-condensate) |
| Vibration acceleration | 4.9m/s2 (0.5G) | ||
| Others | No flammable or corrosive gas or liquid | ||
|
Do not splash water, oil, dust Do not splash water, oil, dust
Do not splash water, oil, dust
|
|||
| No electrical noise source nearby | |||
| 11 | Power capacity | 9.5kVa | |

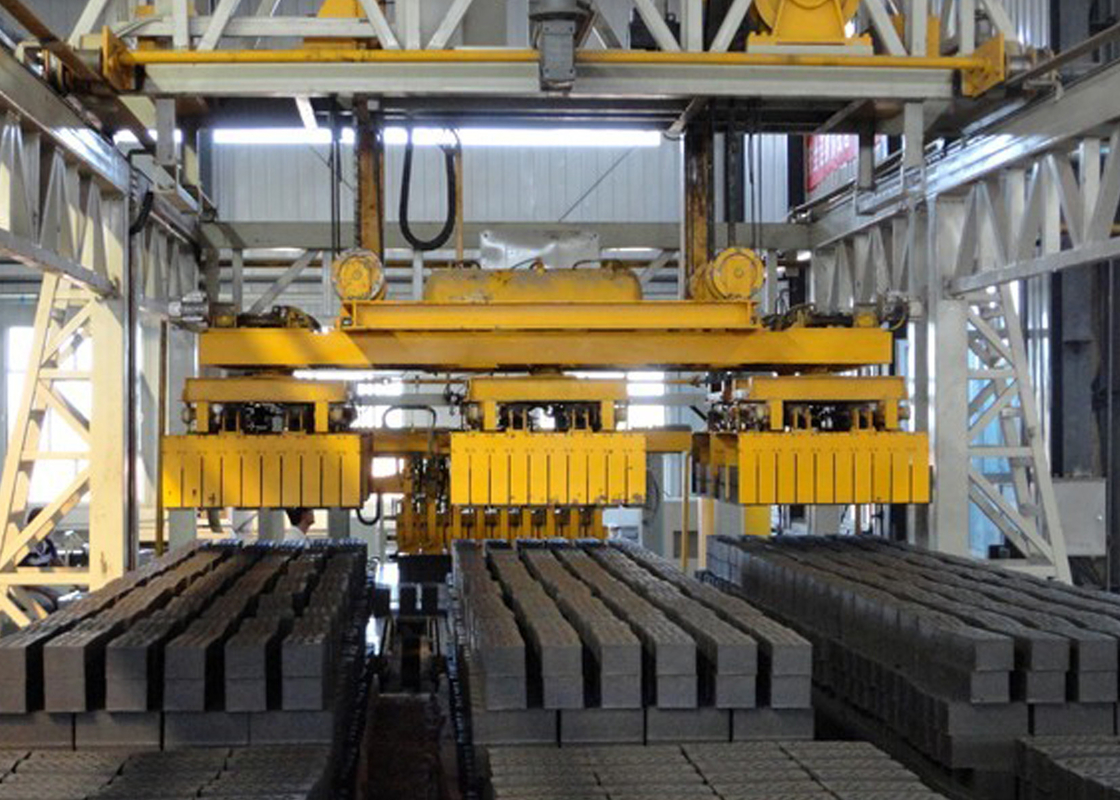

Robot setting clay bricks on dryer cart

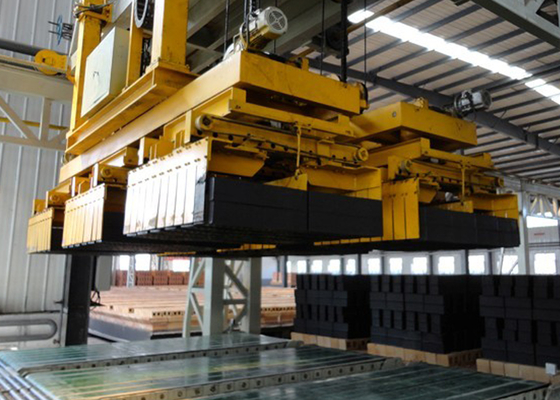

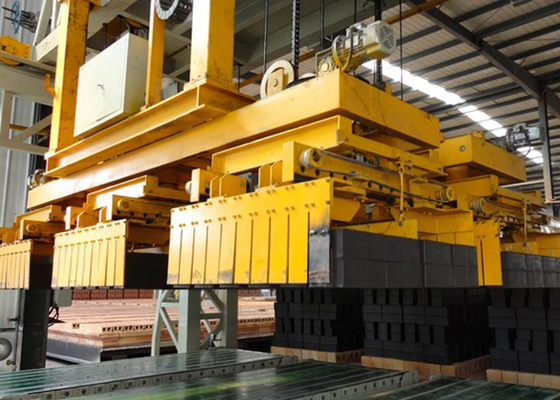

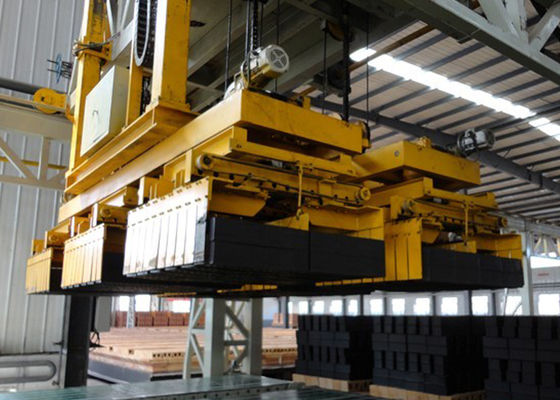

Robot stacking clay bricks tunnel kiln cart

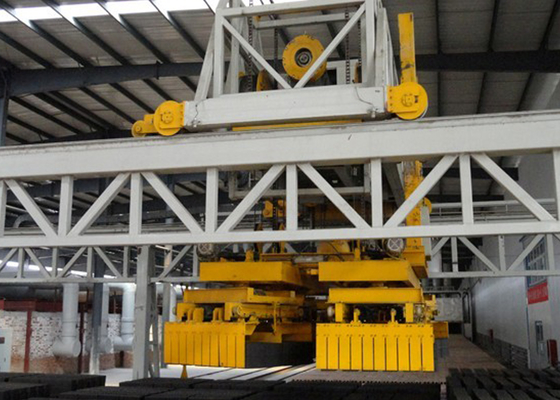

Clay brick stacking machinery for auto brick making line
