Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher

Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher
Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher

Large Image :  Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher

Product Details:
Place of Origin: Chongqing, China
Brand Name: BBT
Model Number: TRA400X1000,TRA-400x1200,TRA-600x1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Suitable for sea shipment by container
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 8 sets per month

Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher

Description
Warranty: 1 Year Condition: New
Motor Type: AC Motor After-sales Service Provided: Online Support
Weight: 8800kg Capacity(t/h): 30-70m³/h
Dimension(l*w*h): 3580×2500×1850mm Power(w): 45+4KW
Highlight:

Automated Soil Interlocking Brick Machine

,

Red Soil Interlocking Brick Machine

,

Automated Double Toothed Roll Crusher

2022 New product automated red brick making machine double toothed roller crusher

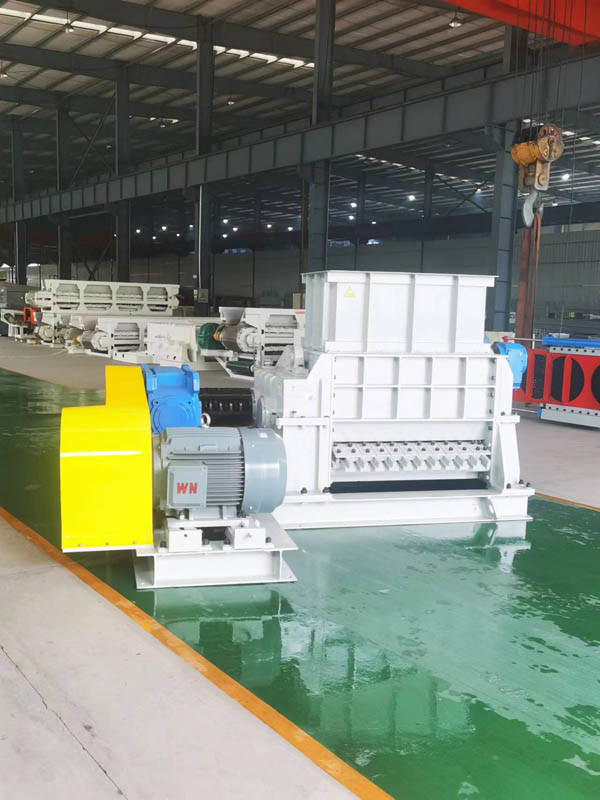

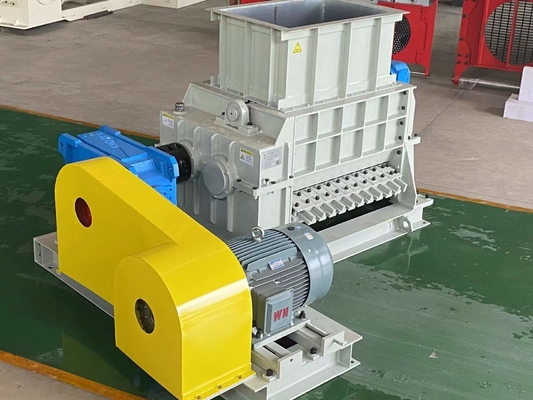

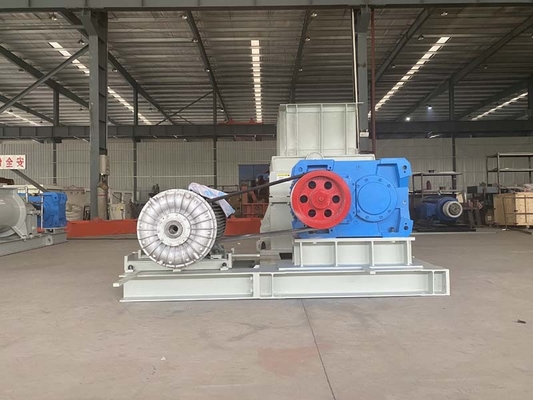

Double toothed roller crusher is composed of two toothed rollers rotating in opposite directions. when the tooth roll rotates, the tooth on the roller surface can bite the coal and be split into pieces. the feed is given from the upper part, and the broken product is takenout from the lower part with the roration of the tooth collection. the particle size of the broken products is determined by the gap.



Between the two teeth of the roller surface, when the large hard and material intto the broken cavity can not be broken, the teeth of the roller force increases, the movable bearing compression spring, increase the gap between the two teeth of the roller, discharge the hard material, and then by the spring's restoring force to make the movable teeth of the roller back to the original position.

Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher 0





Key Parts



Double toothed roller



The working gap of the double rollers is 16mm, which can meet the requirements of medium crushing of materials;
Carbide cutter head is used for the head of the roller tooth, which greatly improves its service life;
The structure of the main shaft of the fast and slow rollers has been uniquely designed to fundamentally improve The reliability and service life of the whole equipment.



Nip Roll



The pressing roller can make it easier for the bulk material to enter the crushing roller, to improve the working efficiency of the crusher.



Trowel



The shovel blade can ensure to remove the material stuck on the roller groove, improve the crushing efficiency, Maintenance and replacement are also convenient.





Technical Parameters



No. Model TRA400X1000 TRA-400x1200 TRA-600x1400
1 Production capacity

30-45m3/h

35-50m3/h

60-70m3/h

2 Roller diameter

400mm

400mm

590mm

3 Roller length

970mm

1130mm

1470mm

4 Roller Gap

16mm

16mm

20mm

5 Host installed power

37/45kw

45/55kw

75/90kw

6 The power of the mud roller

3kw

5.5kw

7 Total Weight

8,700kg

9,600kg

18,400kg







Automated red Soil Interlocking Brick Machine / Double Toothed Roller Crusher 1



Our service



Welcome to contact with BBT

BBT supply following machinery and project :

1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)

2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )

3. Brick kiln project ( hoffman kiln, tunnel kiln )

4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)

5. Kiln firing system ( coal / gas /oil combustion system ,control system )

6. Whole brick making project design and construction .
