Tunnel Kiln Automatic Production Line For Clay Hollow Block Making with Tunnel Dryer and Big Capacities 800 tons/day

Large Image : Tunnel Kiln Automatic Production Line For Clay Hollow Block Making with Tunnel Dryer and Big Capacities 800 tons/day

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001 and CE
Model Number:	BBT01

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	40" GP/HP container
Delivery Time:	90 working days
Payment Terms:	T/T, L/C, D/P
Supply Ability:	10 unit/year

Contact Now

Tunnel Kiln Automatic Production Line For Clay Hollow Block Making with Tunnel Dryer and Big Capacities 800 tons/day

Description

Type:	Automatic Production Line For Clay Brick Making	Function:	Clay Solid Brick/hollow Block Making
Standard:	High Automatic	Clay Brick Making Machine:	Full Unit
Automatic Loading:	Yes	Automatic Unloading:	Yes
Dryer:	Chamber Dryer Or Tunnel Dryer	Kiln:	Tunnel Kiln
Burner:	Coal Burner, Heavy Oil Burner Or Natural Gas Burner	Custom Building:	Accept
Capacity:	Automatic Production Line 120 To 1,200 T/day
Highlight:	Automatic Clay Hollow Block Making Machine , Kiln Clay Block Making Machine , Clay Hollow Brick Making Machine

1. Automatic production line for clay brick making or hollow block making, turnkey production line

for clay hollow block making is available for custom building


Different types of clay solid bricks, clay hollow blocks and facing bricks can be produced

Automatic production line with tunnel kiln for 2 times setting by robots
BBT--Designer, supplier and manufacturer for clay brick making machine and production line
Box feeder/refine roller crusher/Mill pan/mixer/front grid extruder/Tooth roller crusher/automatic loading and
unloading system/running equipment for kiln cart


2 lines are under construction at the same time, trial running in August 2022;
Line 1: Daily capacity 650 t/day
2 times setting+Tunnel Dryer+Tunnel kiln
Line 2: Daily capacity 800 t/h
2 times setting+Tunnel Dryer+Tunnel kiln
Both with automatic packaging system for fired bricks
Automatic PLC+MCC controlling electrical cabinet
Robots with graspers for bricks loading and unloading;
Custom building and automatic production line for clay hollow blocks making, thin wall and high quality

Projecting drawings: Can be designed and provided by BBT;
Turn key project : Available
General arrangement of land layout: Available
Installation and trial running : Guiding by BBT
Training operation : BY BBT

2. Equipment and machinery in the production line of clay brick making and hollow block making
/2 times setting with robots










			NO.
			Item
			Unit
			Qty


			1
			Raw Material Preparation
			Item
			1


			2
			Molding Process
			Item
			1


			3
			Automatic Cutting System with loading and laoding system
			Item
			1


			4
			Tunnel Dryer Equipments
			Item
			1


			5
			Tunnel kiln Firing System
			Item
			1


			6
			Opeartion Equipments for tunnel dryer and tunnel kiln
			Item
			1


			7
			Belt Conveyor
			Item
			1


			8
			Unloading Fired bricks packing system
			Item
			1


			9
			Public Facilties and Other Accessory Equipment in the local
			Item
			1


			10
			Burning system for heavy oil
			Item
			1


			11
			Refractory bricks of kiln cart and tunnel kiln
			Item
			1

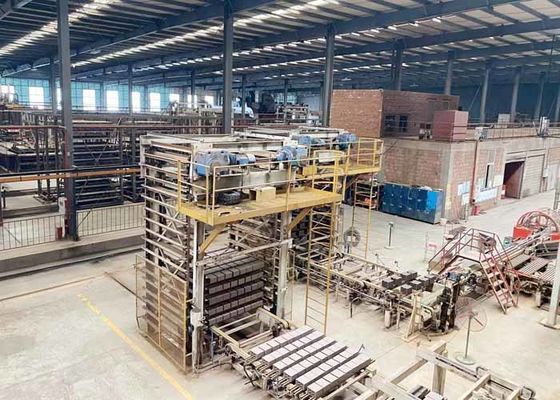

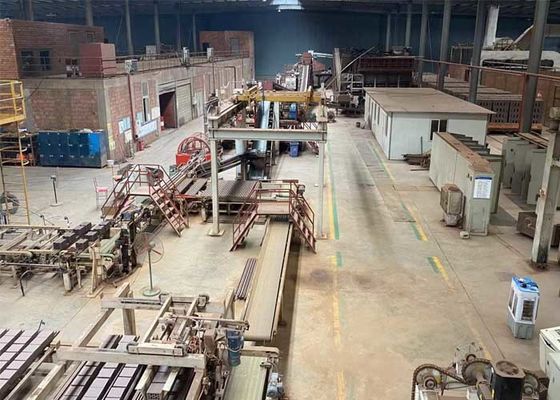

3. Automatic production line for clay hollow block making in the brick plant


4. Drying cart in the automtic production line of clay brick making

5. Fired brick packaging machine in the production line of clay brick making

6. Equipment and machinery in for clay brick making machine in the automatic production line
of clay brick making
Raw Material of Clay or Mud Preparation before moulding











			No.
			Equipment Name
			Specification Model &Technical Parameters
			Unit
			Qty


			Model
			Capacity


			1
			Box Feeder
			GL600A
			70-100 t/h
			set
			1


			2
			Permanent Magnetism iron-remover
			YC-800B

			set
			2


			3
			Primary Rolling Crusher
			1000*800
			30-70 m3/h
			set
			1


			4
			Flat Belt Distributer
			RMB-10*4

			set
			1


			5
			Fine Pulverizing Rolling Crusher
			1200*1000

			set
			1


			6
			Double Shaft Mixer
			MDE500A
			48-61m³/h
			set
			1


			7
			Reversible Belt for Simple Aging Room
			B800/L=27,000mm

			set
			1


			8
			Side multi-excavators
			DQY50F

			set
			1




Single layer drying is the advantages in the dryer from BBT with cone fans
.
