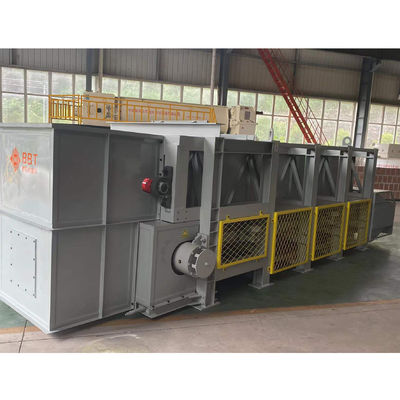

TCNL1045 Box Feeder Machine | Automatic Clay Feeding Equipment for Red Brick Factory
TCNL1045 Box Feeder Machine | Automatic Clay Feeding Equipment for Red Brick Factory
Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001:2008
Model Number:
TCNL1045
Trading Properties
Minimum Order Quantity:
1 set
Price:
Negotiation
Payment Terms:
L/C, T/T, Western Union
Product Summary
TCNL1045 Box Feeder Machine | Automatic Clay Feeding Equipment for Red Brick Factory Brief Introduction TCNL1045 Plate Feeder is an advanced new product independently developed by our company, drawing on cutting-edge technologies from international counterparts. It boasts a leading position among ...
Product Custom Attributes
Highlight
TCNL1045 Box Feeder Machine
,Red Clay Brick Materials Feeder Machine
,Box Feeding Clay Brick Production Line
Brick Box Feeder:
TCNL1045 Box Feeder Machine | Automatic Clay Feeding Equipment For Red Brick Factory
Type Of Box Feeder:
Full Plate Steel Type
Raw Material Feeding:
Wet /hard Clay
Brick Type:
Solid Hollow
Application For:
Feeding Clay Bricks Raw Materials
Production Capacity Per Hour:
10-50 M3/hr
Chain Travel Track Center Distance Of Size:
1175mm
Weight:
6200kg
Product Description
Detailed Specifications & Features
TCNL1045 Box Feeder Machine | Automatic Clay Feeding Equipment for Red Brick Factory
Brief Introduction
TCNL1045 Plate Feeder is an advanced new product independently developed by our company, drawing on cutting-edge technologies from international counterparts. It boasts a leading position among similar domestic equipment.
Featuring a rational structure, stable performance, low failure rate, and convenient operation & maintenance, this plate steel type box feeder is widely used in mining, building materials, metallurgy and other industries for uniform feeding and batching of sharp block materials, making it ideal equipment for clay brick making factories.
TCNL1045 Clay Box Feeder Machine | Reliable Raw Material Feeding Equipment for Brick Factory
Working Principle & Structural Features

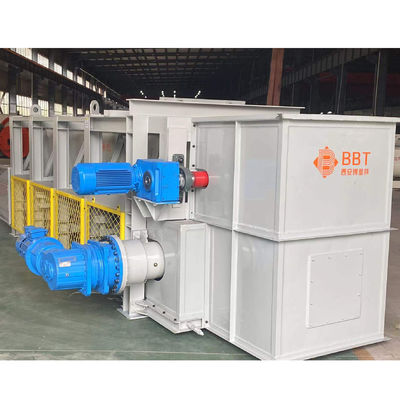

The plate feeder is driven by a motor through a reducer, which transmits power to the driving shaft. The two sprockets on the driving shaft rotate synchronously, driving the chains and chain plates to move forward continuously. The chain plate bears the weight of materials and completes the uniform feeding during operation.

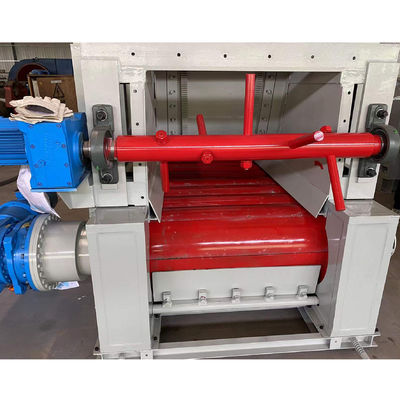

The manual lifting gate is used to adjust the discharge volume. The bottom scraper removes residual materials on the chain plate, and the motor-driven feeding rod ensures more stable and even material flow.
Main Structure
This machine mainly consists of a transmission system (motor, reducer, driving shaft, driven shaft, sprocket and chain plate) as well as a silo gate, scraper, feeding device, frame, silo and protective guard.
TCNL1045 Belt Type Box Feeder | High Efficiency Clay Feeding Machine for Red Brick Making
Full auto red clay brick box feeder technical parameters:
| Item | Specification |
| Production capacity | 10-50m3/hr |
| Center distance between the driving and tensionomg sprocket | 4500mm |
| Chain travel track center distance | 1175mm |
| Weight | 6200kg |
| Dimensions | 6015*2500*1750 mm |
| Power | 4+4kw |
