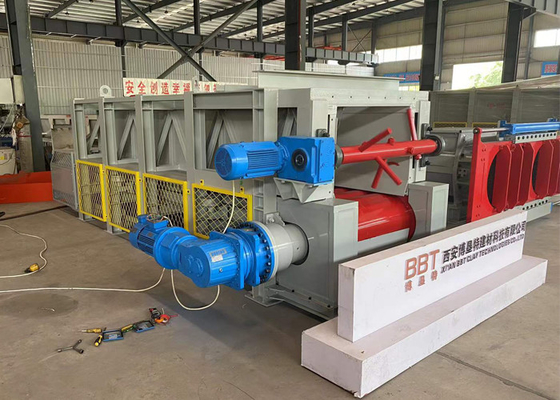

Steel Chain Type Box Feeder Machine Fully Automatic Clay Brick Production Line

BBT Clay brick box feeder machinery with steel chain type in fully automatic brick production line

Plate steel type box feeder machinery for clay brick making factory box feeding equipment

The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain. This product is widely used in mining, building materials, metallurgy and other industries to achieve uniform feeding and batching, and can also be used in other occasions where similar sharp block materials are uniformly fed.

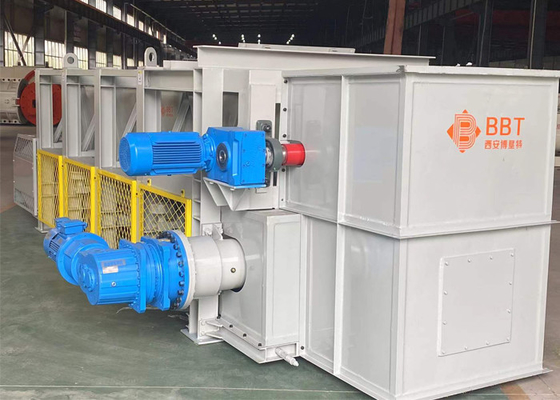

Clay brick box feeder machinery with steel chain type in fully automatic brick production line

Working principle and structural characteristics

The power of the plate feeder is driven by the motor of the transmission device, and after being decelerated by the reducer, the power is transmitted to the driving shaft. At that time, the two sprockets mounted on the drive shaft rotate with the drive shaft. In addition, the two chains meshing with the head and tail sprockets also move forward with the rotation of the driving sprocket and the tail wheel, and the chain plate is installed on the chain to move synchronously with the chain.

The function of the chain plate is to afford the full weight of the material. With the movement of the chain, the chain plate also completes the process of transporting the material.

The plate feeder is mainly composed of the following components:

Transmission system: electric motor, reducer, driving shaft, driven shaft, sprocket, chain plate.

Other devices: silo gate, scraper, feeding system, rack, silo, guard.

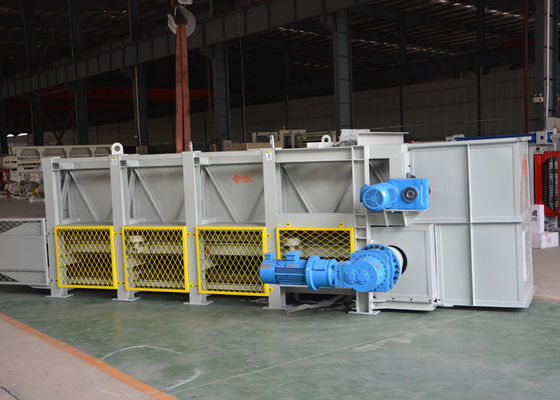

Clay brick box feeder machinery with steel chain type in fully automatic brick production line

Full auto red clay brick box feeder technical parameters:

Full automatic Clay brick production line box feeder machinery
