9.5kVa Robot Stacking Machine For Full Automatic Clay Brick Making
9.5kVa Robot Stacking Machine For Full Automatic Clay Brick Making
Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001
Model Number:
BBT-01
Trading Properties
Minimum Order Quantity:
1 set
Price:
Negotiation
Payment Terms:
L/C, T/T
Supply Ability:
10 sets per month
Product Summary
BBT robot setting machine Robot stacking machine for full automatic clay brick making project setting production line CLAY BRICK SETTING MACHINERY FOR CLAY BRICK MAKING LINE Robot brick setting machine of Application and Features This machine is for green brick stacking. Simple, reliable and ...
Product Custom Attributes
Highlight
Clay Brick Making Robot Stacking Machine
,Automatic Robot Stacking Machine
,Robot Clay Brick Production Line
Item:
Robot Stacking Machine For Full Automatic Clay Brick Making Project
Material:
Clay , Mud
Brick Type:
Solid, Hollow
Repeated Positioning Accuracy:
±0.5mm
Robot Weight:
2300kg
Power Capacity:
9.5kVa
Product Description
Detailed Specifications & Features

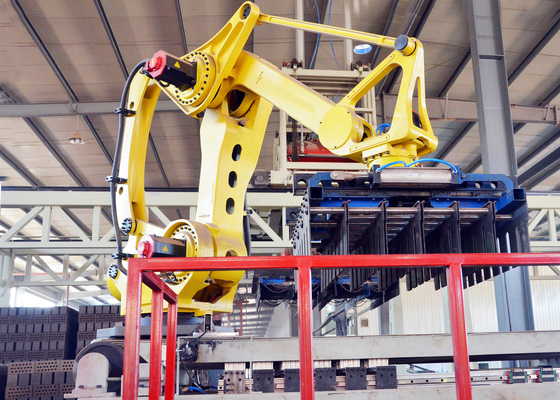

BBT robot setting machine Robot stacking machine for full automatic clay brick making project setting production line

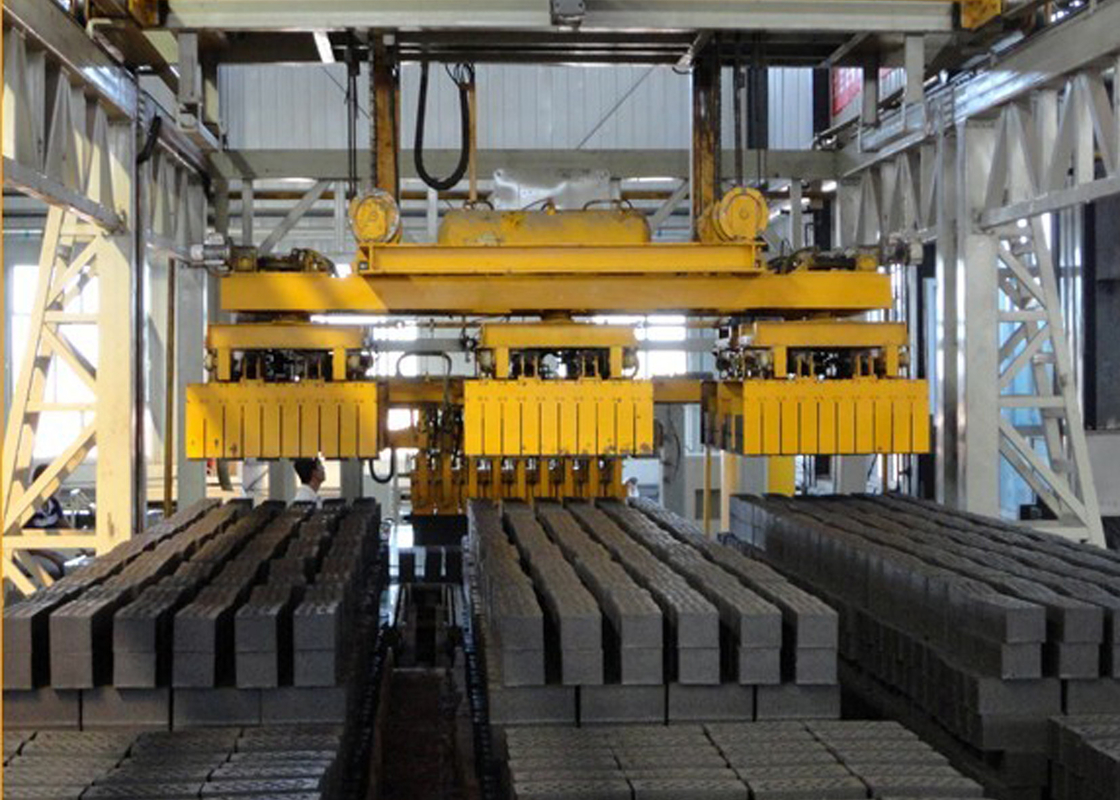

CLAY BRICK SETTING MACHINERY FOR CLAY BRICK MAKING LINE
Robot brick setting machine of Application and Features
This machine is for green brick stacking.
Simple, reliable and flexible and easy control.
Robot brick setting machine of Technological Parameters
| No. | Item | Parameters | |
| 1 | Action form | Vertical multiple joint | |
| 2 | Degree of freedom | 4 | |
| 3 | Load | 500kg | |
| 4 | Repeated positioning accuracy | ±0.5mm | |
| 5 | Actuation range | S axis (Rotating) | +180° ~ -180° |
| L axis (Lower Arm) | +90° ~ -45° | ||
|
U axis (Upper Arm) ) |
+15.5° ~ -120° | ||
| T axis (Wrist Rotation) | +360° ~ -360° | ||
| 6 | Maximum speed | S axis | 1.48 rad/s (85°/s) |
| L axis | 1.48 rad/s (85°/s) | ||
| U axis | 1.48 rad/s (85°/s) | ||
| T axis | 3.4 rad/s (195°/s) | ||
| 7 | The T-axis allows inertial torque | 200kg·㎡ | |
| 8 | Robot weight | 2300kg | |
| 9 | Installation environment |
Temperature |
0~45 ℃ |
| 10 | A conventional model weight | Humidity | 20-80% RH (Non-condensate) |
| Vibration acceleration | 4.9m/s2 (0.5G) | ||
| Others | No flammable or corrosive gas or liquid | ||
|
Do not splash water, oil, dust Do not splash water, oil, dust
Do not splash water, oil, dust
|
|||
| No electrical noise source nearby | |||
| 11 | Power capacity |
9.5kVa |
|
