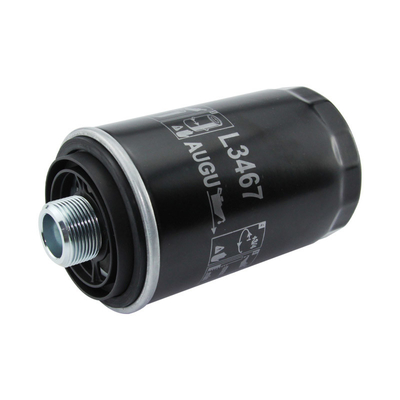

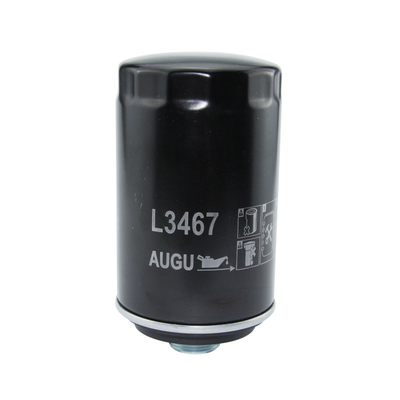

ISO9001 Iron can casing Auto Oil Filter For Audi A4L A6 Q5 1.8T 2.0T

Large Image : ISO9001 Iron can casing Auto Oil Filter For Audi A4L A6 Q5 1.8T 2.0T

Product Details:

Place of Origin:	CHINA
Brand Name:	AUGU
Certification:	ISO9001
Model Number:	AUGU-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD0.95-2.25 per piece
Packaging Details:	in neutral white boxes and brown cartons
Delivery Time:	3-5dy
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs more per month

Contact Now

ISO9001 Iron can casing Auto Oil Filter For Audi A4L A6 Q5 1.8T 2.0T

Description

Item:	Auto Oil Filter Factory Direct Supply Customized Wholesale Price From Excellent	Year:	2006-2012, 1989-1994, 1999-2006, 2005-, 1984-1990, 2000-2006
Reference NO.:	L3485,L3445,L3416,L3468	Car Model:	Audi A4L A6 Q5 1.8T 2.0T,SONATA,ELANTRA/ K5,TUCSON,JETTA,Mitsubishi 4G15 4A91 Engine Great Wall Series Gasoline Car
Warranty:	12month	Material:	Iron /Filter Paper
Product Name:	Oil Filter Product
Highlight:	Audi Q5 Auto Filter , ISO9001 Auto Oil Filter , Iron Can Audi Auto Oil Filter

2022 NEW Auto filter factory direct sales, large quantity favorably

ISO9001 Iron can casing Auto Oil Filter For Audi A4L A6 Q5 1.8T 2.0T 0

According to the use of automotive filters, they are divided into four categories
1. Oil filter - used to filter the lubricating oil required for the engine to work
2. Air filter - used to filter the air required for the engine to work
3. Air conditioner filter - used to filter the air in the cabin, including indoor circulation filtration and outdoor and indoor air circulation filtration
4. Fuel filter - used to filter the diesel or gasoline required for the engine to work

Specification of OEM Car Spare Parts Engine Oil Filter Oil Cleaner Supplier in China for Aoto Car

No.	OEM No.	Car Model.
L3485	26300-35056	SONATA ELANTRA/ K5 TUCSON
L3445	04E 115 561A	SANTANA JETTA
L3416	MD135737 MD360935	Mitsubishi 4G15 4A91 engine Great Wall series gasoline car
L3404	15208-65F00 15208-65F01	NISSAN,TEANA,TIIDA,SYLPHY ,QASHQAI
L3401	15400-PLC-004/005/015	Honda,Accord 2.0 2.4,ODYSSEY,FIT,CIVIC
L3414	90915-10001 90915-03001	COROLLA,Vios
L3422	JX0605C(9052781) 02C101-1	Chevrolet SAIL,Wuling Almaz,passers hung),630Optra
L3467	06J 115 561B 06J 115 403C	Audi A4L Q5 1.8T 2.0T, MAGOTAN,Tiguan ,PASSAT 1.8T 2.0T

The oil filter is located in the engine lubrication system. Riding on a very important role, it can filter out impurities such as metal wear debris, carbon particles and colloids gradually produced by the engine during the combustion process and mixed into the existing oil, and supply the crankshaft, connecting rod and cam with clean oil. Shafts, superchargers, piston rings, etc. ensure the normal operation of the internal combustion engine, and play the role of lubrication, cooling, cleaning, etc., thus greatly extending the service life of these parts

Oil filter construction:

(1) Iron can (casing): a container used to accommodate the continuous pressure operation of the filter (filter paper). Aojia adopts 0.5MM high-quality cold-rolled steel plate, and the thickness of the drawing body does not exceed 20%--25%. 4--7 kg when the shape is not damaged.

(2) Spring: It is used to hold down the filter (paper core) and fix it in the iron can during vibration and oil flow. There are also plate springs, but the cost is higher.

(3) One-way valve rubber ring (return valve/check valve): It is used to prevent the loss of lubricating oil from the casing when the engine stops working, so that there is oil in the oil filter for a long time, so that the engine is immediately started. Get lubricated.

(4) Inner net: used to support and fix the paper core and prevent the filter paper from shaking in the oil filter.

(5) Safety valve/bypass valve: installed on the filter (paper core), its function is that when the filter (paper core) is blocked, it will automatically open after the oil pressure reaches one kilogram to allow the oil to flow through.

(6) Threaded cover plate: used to connect the iron can (outer cylinder) and fix the oil filter on the engine.

(7) Aoslon phenolic resin coated filter paper AB2088 PN/AFNN
(8) Sealing ring: When the oil grid is installed on the engine, it plays a sealing role. It is installed on the connecting plate. Generally, it is 1.2--1.6mm higher than the oil grid. The temperature resistance requirement can reach -40℃---+160℃ without Aging (generally subject to vulcanization).
