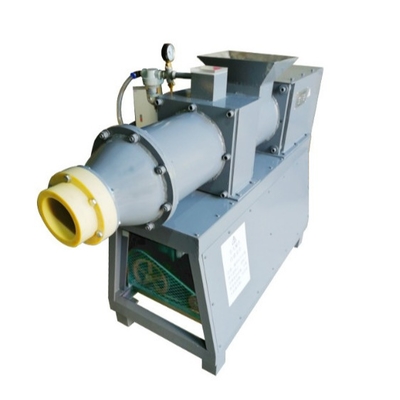

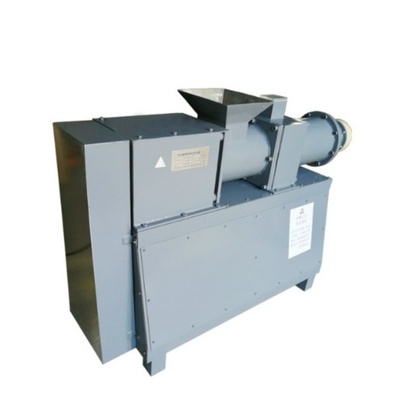

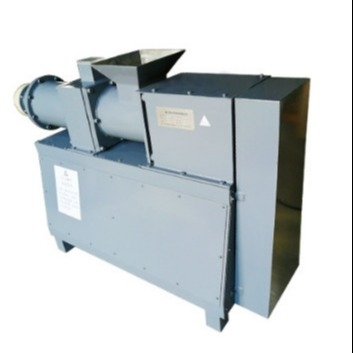

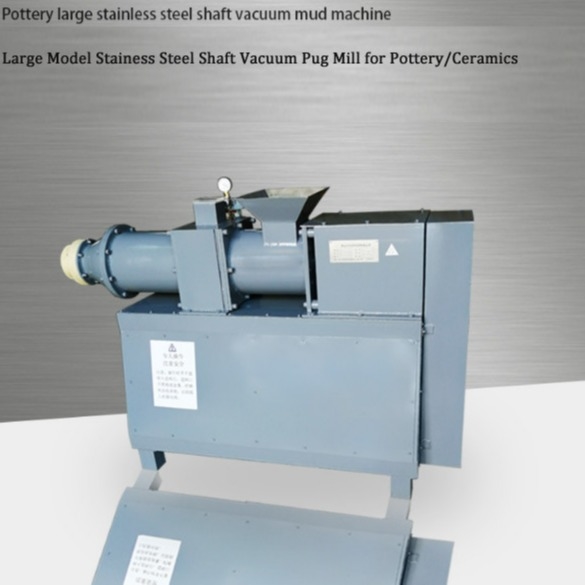

Vacuum Mud Refining Machine For Pottery Extruder Clay Mud Pug Mill

vacuum mud refining machine vavuum pug mill for pottery extruder clay mud mill

key feature of vacuum mud refining machine vavuum pug mill for pottery extruder clay mud mill:

1. Large mud cylinder, compact mud and high vacuum degree;

2. High speed and low power consumption motor

Brushless DC motor is operated in automatic mode, and it will not add starting windings on the rotor like the synchronous motor started under frequency conversion and heavy load.

3. Two stage rotary vane vacuum pump.

The blade groove on the rotor of the front pump adopts the inclined blade groove, which increases the maximum closed working time formed by the two adjacent blades (rotor and pump body) and improves the vacuum pumping speed.

Detailed introduction of vacuum mud refining machine vavuum pug mill for pottery extruder clay mud mill:

1. Two stage rotary vane vacuum pump.

Fast pumping, small size, light weight, low noise, easy maintenance, high vacuum limit.

2. Vacuum pressure meter

Stable performance, measuring accuracy can reach -0.5 -- 0.08Mpa, can meet work intensity requirements of mostly customers.

3. Special painting process

Fuselage surrounded by metal design, machine surface spraying process, corrosion resistance and scratch resistance.

4. Large mud outlet

Fast mud outleting with diameter of 110 mm, high working efficiency. Don't wait too long when large quantity of mud needed.

5. Stainless steel spiral blade

Stainless steel spiral blade surface smooth, low resistance. Easy to transport materials, improve transportation efficiency. The blade has high hardness and wear resistance, and the outer edge hardness can reach HB240.

Technical Parameters of vacuum mud refining machine vavuum pug mill for pottery extruder clay mud mill:
