Full Automatic Clay Brick Wet Pan Mill in hollow block making line

Full Automatic Clay Brick Wet Pan Mill in hollow block making line
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: TWPM185
Trading Properties
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Product Summary
Full Automatic Clay Brick Wet Pan Mill in hollow block making line Wet pan mill for clay brick production line It is mainly used to crush clay, clinker and silica with medium hardness. Usually used for crushing and fine crushing of materials. Generally used for medium and fine crushing of materials. ...
Product Custom Attributes
Highlight

Automatic Clay Brick Wet Pan Mill

,

50 M3/H Wet Pan Mill

,

Brick Making Wet Milling Machine

Item:
Full Automatic Clay Brick Wet Pan Mill In Hollow Block Making Line
Raw Material:
Clay Mud Soil Fly Ash ,shale Gangue
Type:
Brick Blcok
Model:
TWPM185
Product Description
Detailed Specifications & Features

Full Automatic Clay Brick Wet Pan Mill in hollow block making line



Wet pan mill for clay brick production line

It is mainly used to crush clay, clinker and silica with medium hardness. Usually used for crushing and fine crushing of materials.

Generally used for medium and fine crushing of materials.

The product crushed by this kind of dry mill is approximately spherical with no sharp edges and corners. Dry Pan Mill is simple to build, easy to manufacture and maintain, less stringent feed size requirements, but the energy consumption is large and the production efficiency is low.



Wet pan mill machinery ,assembled and ready for delivery to customers

Full Automatic Clay Brick Wet Pan Mill in hollow block making line 0

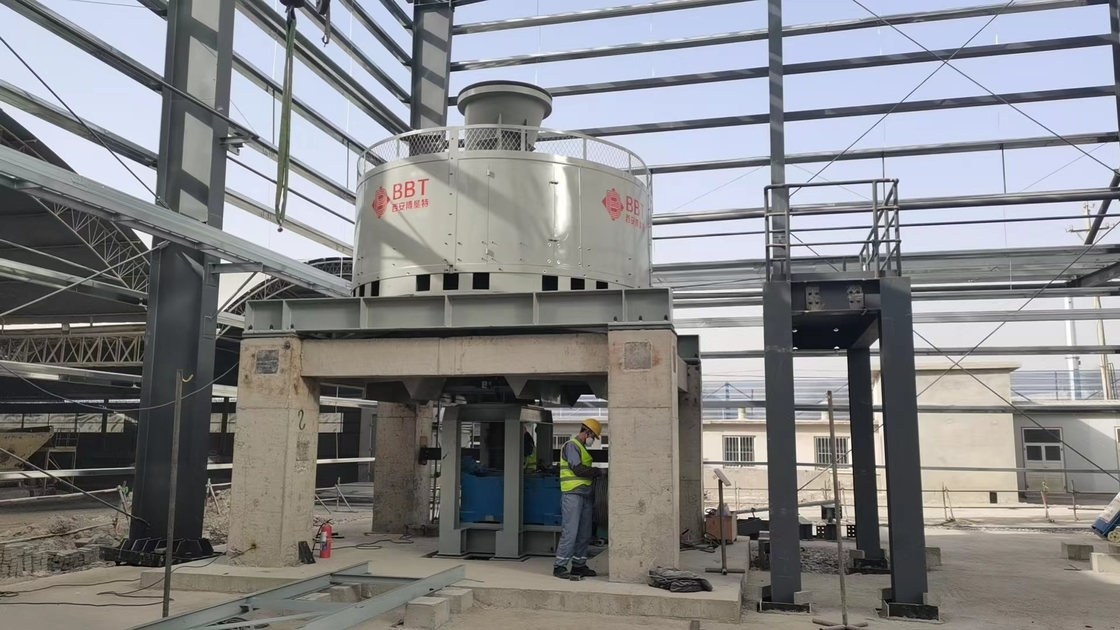

Wet Pan Mill installation in auto clay red solid hollow brick making project

Full Automatic Clay Brick Wet Pan Mill in hollow block making line 1



Wet pan mill of technical parameters:

No.
Item
TWPM185
TWPM200
1
Roller size
1850*700mm diameter*width
2000*900mm diameter*width
2
Rotate speed for main shaft
≥13 rpm
≥13 rpm
3
Motor Power
90+2.2+2.2+1.5kw
142kw
4
Effective diameter of rollers



1850mm
2000mm
5
Rotating speed
≥29rpm
≥29rpm
6
Diameter for screen hole
Customized building
Customized building
7
Production capacity
40-50 m³/h
60-90 m³/h
8
Total weight of equipment
65200 kg
70000 kg
9
Dimensions
5300*4600*6500mm
6700*6500*6700mm
