Automatic Red Clay Block Brick Cutting Machine For Modern Brick Making Plant
Clay Block Brick Cutting Machine
,Automatic Clay Brick Cutter
,Hydraulic Clay Brick Cutting Machine

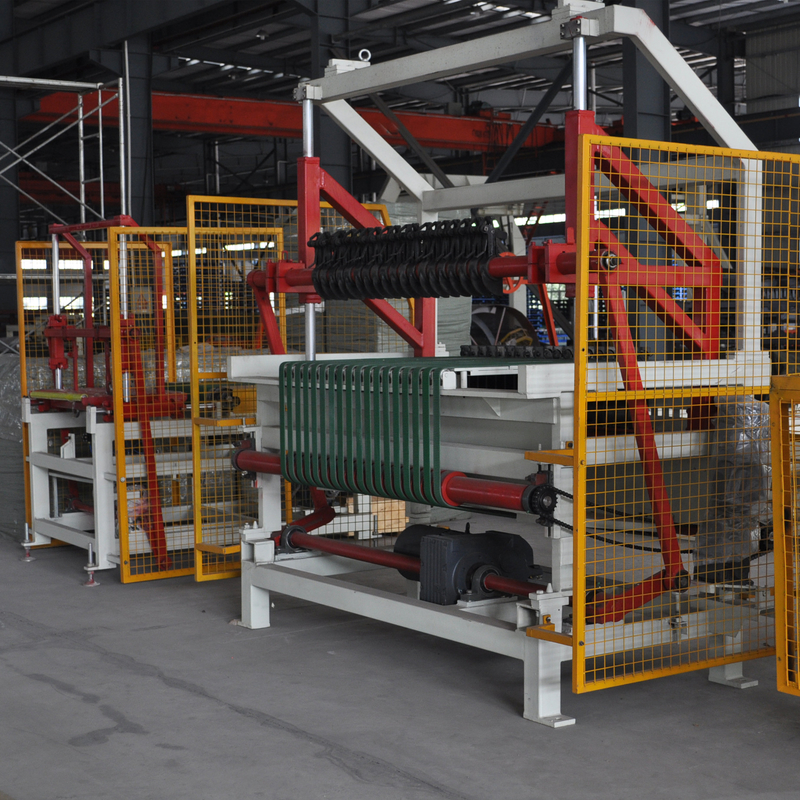

Full automatic clay brick cutting machine
The vertical cutting machine is mainly used for vertical cutting of single, double and multi-mud strips cut by the slitting machine. The equipment can meet the cutting requirements of brick type with cutting size of not less than 190mm. Each brick type corresponds to a roller conveyor.
Clay brick cutter machine
1. The cutting size is ≥190mm, and the width of the device can be determined according to the number of extruded mud strips;
2. The mud strip is statically cut to ensure that the cutting surface is vertical;
3. Compatible with the production of single, double and multi-mud blocks;
4. Optional wire movement cutting function to effectively prevent deformation of thin-walled blocks.
Clay brick cutting machine technical parameters:
| Specification Model | Length (mm) | Max Cutting Degree(f/m) | Power Requirement (kw) | Exterior Dimension (mm) |
| QTQD-1 | 1254 | 17 | Y4-5.5 | 2320x1320x1100 1700x2000x1560 |
| QTQD-1G | 1254 | 17 | Y4-7.5 | |
| QTA2+QPO1 | 1430 | 17 | Y4-7.5 | 5000×2200×1750 |
