Brick wet pan mill，grinding mill double wheels crusher machine clay sand grinding machine hollow brick ceramic clay bricks making machinery

Large Image : Brick wet pan mill，grinding mill double wheels crusher machine clay sand grinding machine hollow brick ceramic clay bricks making machinery

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	TWPM

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wet pan mill by container sea shipment
Delivery Time:	20-30days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per year

Contact Now

Brick wet pan mill，grinding mill double wheels crusher machine clay sand grinding machine hollow brick ceramic clay bricks making machinery

Description

Item:	Wet Pan Mill，grinding Mill Double Wheels Crusher Machine Clay Sand Grinding Machine Hollow Brick Ceramic Clay Bricks Making Machinery	Model:	TWPM185
Production Capacity:	40-50	Roller Specification:	1850*700
Dimension:	530046006500	Total Weight（kg）:	54000
Width（mm）:	6400
Highlight:	6400mm Width Production Line Wet Pan Mill , Raw Material Wet Pan Mill , Brick Making Wet Pan Mill

Brick wet pan mill,grinding mill double wheels crusher machine clay sand grinding machine hollow brick ceramic clay bricks making machinery

Clay brick making plant wet pan mill for auto brick making project

TWPM-185 wet pan mill is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China.

The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain.

The wet pan mill is used in the raw material preparation section of brick making production line

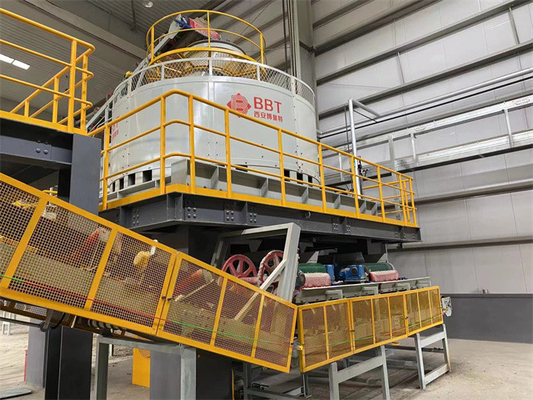

Brick wet pan mill，grinding mill double wheels crusher machine clay sand grinding machine hollow brick ceramic clay bricks making machinery 0

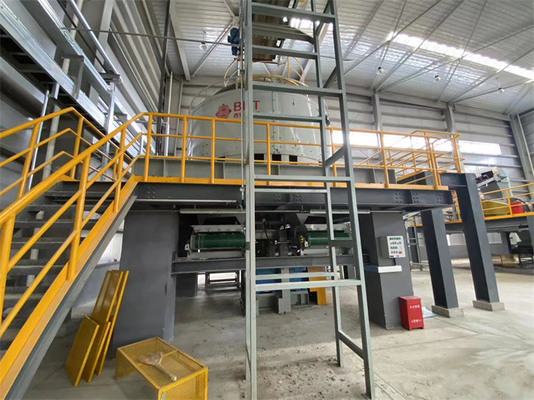

Brick wet pan mill，grinding mill double wheels crusher machine clay sand grinding machine hollow brick ceramic clay bricks making machinery 1

Brick wet pan mill,grinding mill double wheels crusher machine manufacturing

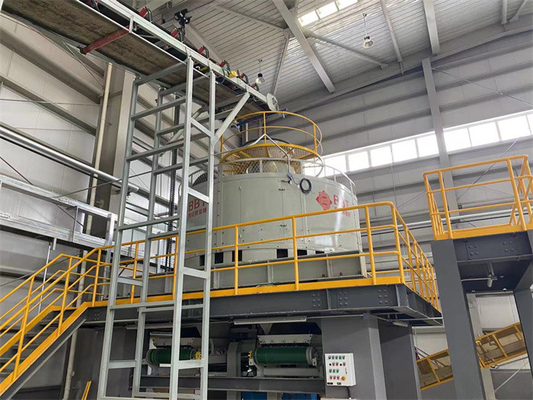

Brick wet pan mill，grinding mill double wheels crusher machine clay sand grinding machine hollow brick ceramic clay bricks making machinery 2

Brick wet pan mill，grinding mill double wheels crusher machine clay sand grinding machine hollow brick ceramic clay bricks making machinery 3

Wet pan mill of technical parameters:

No.	Item	TWPM185	TWPM200
1	Roller size	1850700mm diameterwidth	2000900mm diameterwidth
2	Rotate speed for main shaft	≥13 rpm	≥13 rpm
3	Motor Power	90+2.2+2.2+1.5kw	142kw
4	Effective diameter of rollers	1850mm	2000mm
5	Rotating speed	≥29rpm	≥29rpm
6	Diameter for screen hole	Customized building	Customized building
7	Production capacity	40-50 m³/h	60-90 m³/h
8	Total weight of equipment	65200 kg	70000 kg
9	Dimensions	530046006500mm	670065006700mm
