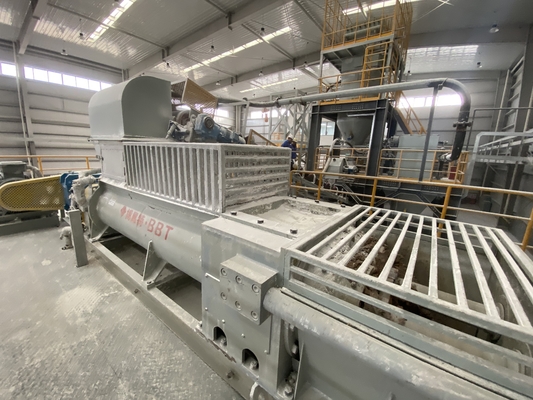

MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production

MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production
MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production

Large Image :  MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production

Product Details:
Place of Origin: China
Brand Name: bbt
Certification: ISO9001
Model Number: MDE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 0
Packaging Details: Double mixer machinery by container sea shipment
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 10 set per mouth
Contact Now

MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production

Description
Item: Bentonite Plant Double Shaft Mixer In Automatic Bentonite Producing Site Condation: Mixing Bentonite Raw Materials
Capacity: 20-30t/hr Stirrer Type: Paddle Mixer
Additional: Milling, Mixing
Highlight:

Automatic Production Site Double Shaft Mixer

,

Bentonite Plant Double Shaft Mixer

Double Shaft Mixer for Bentonite Plant Paddle Mixer in Automatic Production Site
Bentonite Plant Double Shaft Mixer
MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production 0
Double Shaft Clay Mixer for Brick Making Machine Mixing Tank Mixing Series. Double shafts mixer is suitable for continuous mixing of mixed fertilizer powder, usually used after automatic batching equipment.
The working principle is that the materials go into the mixing tank, then through a pair of screw shafts with opposite rotating, they are stirred uniform, and enter the next granulation process.
MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production 1
Key Features
  • High efficiency, high wear-resistant alloy. It has high stirring efficiency and little floor space. The spiral blade is made of special alloy with high wear resistance.
  • Low noise. The double shafts mixer adopts reducer drive, steady rotation and low noise.
  • Reasonable structure. To improve mixing uniformity, we use new rotor structure with minimal adjustable gap between rotor and mixing chamber.
  • Smooth operation. Tight sealing between joints ensures smooth operation.
MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production 2
Technical Parameters
Specification Model Capacity (m³/hr) Power Requirement (kw) Rotate Speed(t/m) Exterior Dimension (mm)
MDE320B 22-26 Y6-45 35 5170*1470*870
MDE360B 23-31 Y6-55 35 5480*1520*930
MDE400B 28-41 Y6-75 35 5500*1520*980
MDE500B 33-47 Y6-110 35 5800*1600*1200
MDE410A 37-41 Y6-75 35 5170*1470*870
MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production 3 MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production 4 MDE320B MDE360B MDE400B Double Shaft Mixer Twin Shaft Mixer for Bentonite Plant Automatic Production 5
Complete Clay Brick Making Equipment
BBT supply full auto clay brick making line machinery and equipment including:
  • TCNL series of Chain full steel type box feeder
  • TWGD series of double shaft mixer
  • GS series of roller crusher
  • TRA series of double tooth roller crusher
  • TWJH series of front grid extruding mixer
  • TWPM series of wet pan mill
  • QTQG series of cutter
  • EV series of vacuum extruder
  • Robot setting machine
  • Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
