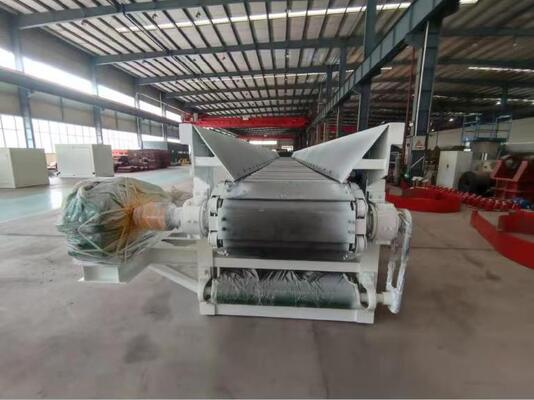

Big Capacity Automatic Clay Box Feeder Clay Feeding Machine for Brick Production Line

Big Capacity Automatic Clay Box Feeder Clay Feeding Machine for Brick Production Line

Clay brick box feeder machine

There are two types of feeder for you choosing according to the different type of raw material:

1. Chain plate step type belt feeder: It suits the hard material, such as shale, coal gangue and etc...

2. Belt type feeder: it suits the soft material, such as clay, mud, soil and fly ash.

Key Components of Clay Brick Box Feeder

1. Chain Plate



   Made from 16Mn high-strength low-alloy structural steel, equipped with a double-arc plate design to effectively prevent material leakage.



   It features high strength, excellent toughness, wear resistance, stable overall performance, long service life and wide applicability.

2. Chain



   Adopts a separate load-bearing and traction structure, which effectively enhances the loading capacity of the chain plate feeder.

3. Sprocket



   Manufactured from material with grade no lower than ZG310-570. The tooth surface is quenched to a depth of 2–2.5 mm, with hardness reaching HRC44–52.

4. Chain Shaft



   Made of 45# carbon steel and processed through quenching and tempering treatment.

Steel type Clay brick box feeder for clay brick making line

Clay brick box feeder technical parameters:

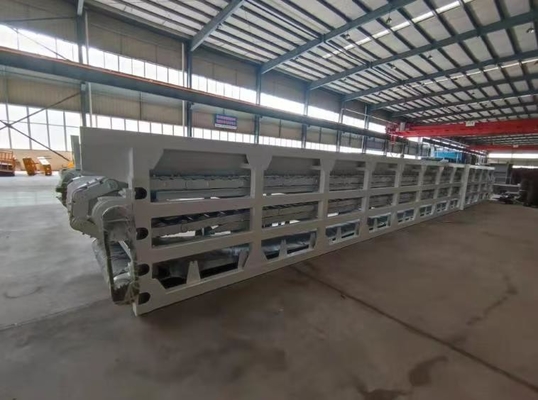

Customized Big capacity steel type box feeder for hollow block making line clay box feeder
