Full Steel Chain Plate Type Raw Material Feeding Machine for Automatic Brick Factory

Large Image : Full Steel Chain Plate Type Raw Material Feeding Machine for Automatic Brick Factory

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	GL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set box feeder
Price:	USD8990
Packaging Details:	clay brick box feeder machine by container sea shipment
Delivery Time:	10-15days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month box feeder machine

Contact Now

Full Steel Chain Plate Type Raw Material Feeding Machine for Automatic Brick Factory

Description

Product Name:	Full Steel Chain Plate Type Raw Material Feeding Machine For Automatic Brick Factory	Bricks Raw Materials:	Clay, Soil, Fly Ash, Shale , Coal,shale
Chain Plate Width Size:	800mm	The Feeding Granularity:	< 400mm
Belt Feeding Speed:	5.2m/min	Spindle Chain Wheel Diameter Size:	340mm
Brick Type:	Solid Brick Hollow Block	Key Equipments:	Wet Pan Mill , Front Grid Mixer, Double Shaft Mixer, Double Tooth Crusher, Cutter
Customer Choose:	Can Customized Production For Customer
Highlight:	400mm Box Feeder Machine , Box Feeding Equipment Box Feeder Machine , Clay Brick Making Box Feeder Machine

Full Steel Chain Plate Type Raw Material Feeding Machine for Automatic Brick Factory

Clay Brick Box Feeder Machine

We offer two types of feeders for your selection, based on different raw materials:

1.Chain Plate Step-Type Feeder

Suitable for hard materials, such as shale, coal gangue, etc.

2. Belt-Type Feeder

Suitable for soft materials, such as clay, mud, soil and fly ash.

Clay Brick Box Feeder of Key Parts:

1. Chain Plate: Using 16 Mn high strength low alloy structural steel, with double circular arc plate, effectively prevent leakage of material.

It has the advantages of high strength, high toughness, wear resistance, good comprehensive performance, long service life and wide application range.

2. The Chain : It is using loading-bearing and traction separately structure, can improve the ability of plate feeding machine loading capacity .

3. Chain wheel: Machine material is not lower than that of ZG310-570, tooth surface adopt to quenching treatment and depth up to 2-2.5 mm, the hardness can reach HRC44-52.

4. Chain shaft: Using 45# steel , adopt thermal refining processing .

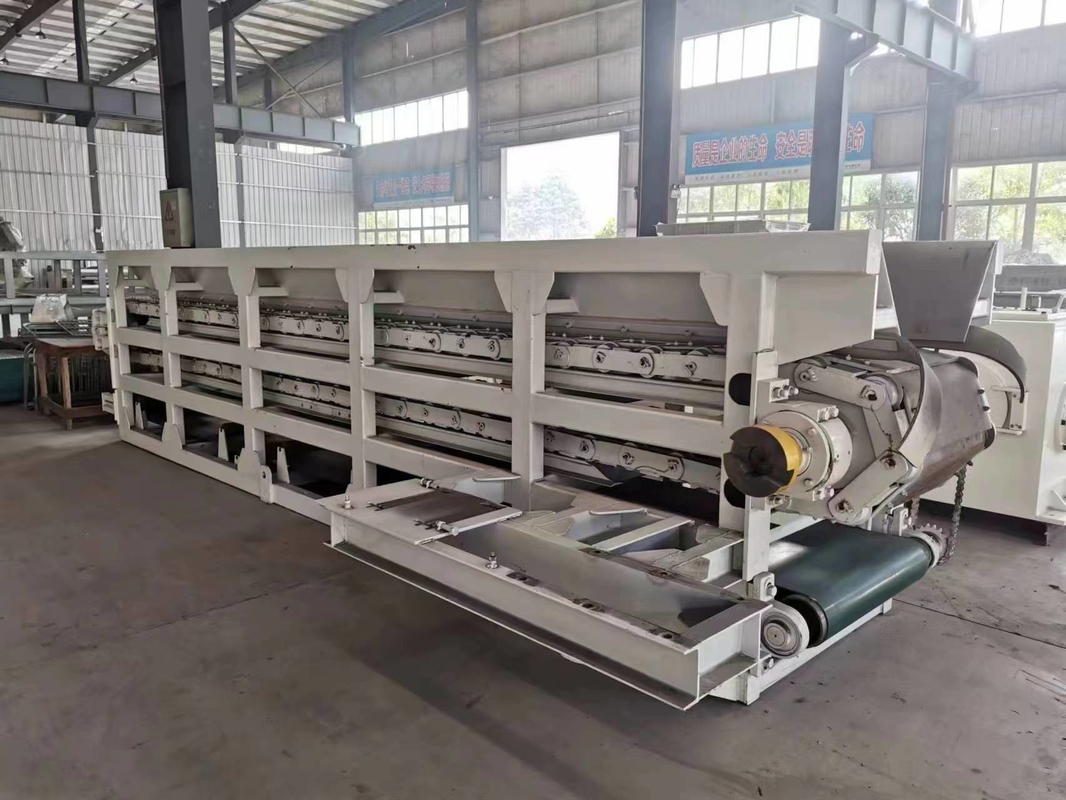

Steel type Clay brick box feeder for clay brick making line

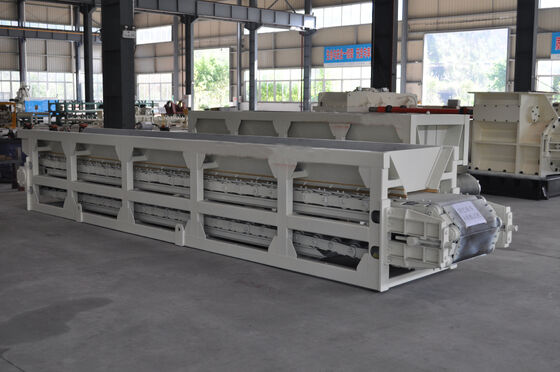

Full Steel Chain Plate Type Raw Material Feeding Machine for Automatic Brick Factory 0

Full Steel Chain Plate Type Raw Material Feeding Machine for Automatic Brick Factory 1

Clay brick box feeder technical parameters:

Specification Model	Capacity (m/s)	Power Requirement (kw)	Exterior Dimension (mm)	Weight(kg)
GL600A	23-36	Y4-7.5	677021201330	3600
GL450A	23-48	Y4-11	530021001080	3400
GL1200B	33-72	Y4-15	578025001700	6000
GL800B	18-48	Y4-7.5	467020501470	3000

Heavy-Duty Full Steel Chain Plate Feeder for Automatic Brick Production Line
