Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation

I'm Online Chat Now

Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation

Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation
Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation
Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation

Large Image :  Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation

Product Details:
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: GL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set box feeder
Price: USD
Packaging Details: clay brick box feeder machine by container sea shipment
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month box feeder machine

Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation

Description
Item: Box Feeder Machine For Clay Brick Production Line Brick Box Feeding Machinery Raw Materials: Clay, Soil, Fly Ash, Shale , Coal
Chain Plate Width: 800mm The Feeding Granularity: < 400mm
Belt Feeding Speed: 5.2m/min Spindle Chain Wheel Diameter: 340mm
Brick Type: Solid Hollow Blocks Key Equipments: Wet Pan Mill , Front Grid Mixer, Double Shaft Mixer, Double Tooth Crusher, Cutter
Choose: Ccan Customized Production For Customer
Highlight:

Easy Operation Box Feeder Machine

,

400mm Box Feeder Machine

box feeder machine for clay brick production line brick box feeding machinery

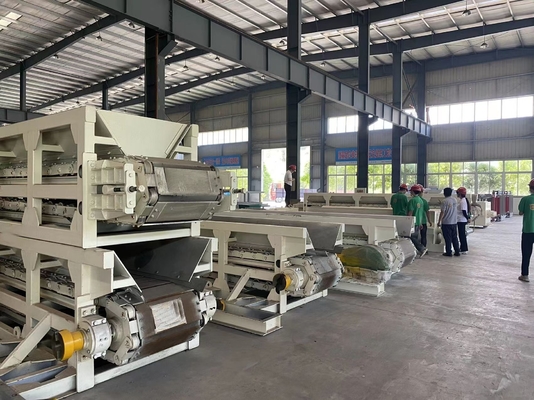

Clay brick box feeder machine

There are two types of feeder for you choosing according to the different type of raw material:

1. Chain plate step type belt feeder: It suits the hard material, such as shale, coal gangue and etc...

2. Belt type feeder: it suits the soft material, such as clay, mud, soil and fly ash.



Clay Brick Box Feeder of Key Parts:

1. Chain Plate: Using 16 Mn high strength low alloy structural steel, with double circular arc plate, effectively prevent leakage of material.

It has the advantages of high strength, high toughness, wear resistance, good comprehensive performance, long service life and wide application range.

2. The Chain : It is using loading-bearing and traction separately structure, can improve the ability of plate feeding machine loading capacity .

3. Chain wheel: Machine material is not lower than that of ZG310-570, tooth surface adopt to quenching treatment and depth up to 2-2.5 mm, the hardness can reach HRC44-52.

4. Chain shaft: Using 45# steel , adopt thermal refining processing .



box feeder machine for clay brick production line brick box feeding machinery

Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation 0



Box Feeder Machine for Shale Brick Production Line Feeding Granularity 400mm and Easy Operation 1



Clay brick box feeder technical parameters:

Specification Model Capacity (m/s) Power Requirement (kw) Exterior Dimension (mm) Weight(kg)
GL600A 23-36 Y4-7.5 6770*2120*1330 3600
GL450A 23-48 Y4-11 5300*2100*1080 3400
GL1200B 33-72 Y4-15 5780*2500*1700 6000
GL800B 18-48 Y4-7.5 4670*2050*1470 3000

box feeder machine for clay brick production line brick box feeding machinery
