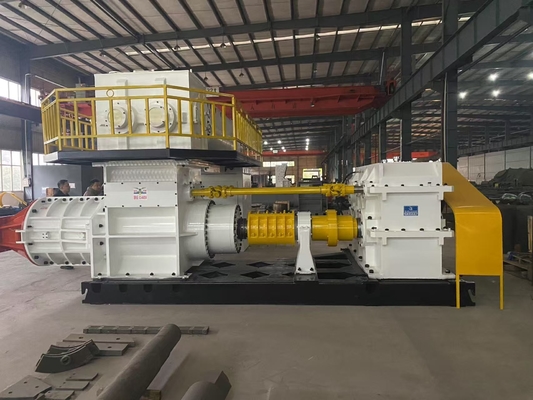

BBT Clay brick machine vacuum extrusion clay brick making for full automatic brick making production line
Vacuum extruder EV45 EV50 EV55 EV60 EV775
The machine is suitable for continuous extruding of wet clay and is a key functional machine in the molding section of brick production line.
The mud bar extruded by the equipment has a smooth and compact surface, good quality, large extrusion output, easy operation, stable operation and good reliability.
The machine can produce solid brick, hollow brick, porous brick, hollow block and other brick.
The machine is composed of upper mixing part, vacuuming part and lower extruding part.
The extruder body is welded with high quality steel plate, and the residual stress inside the parts is removed after aging treatment, which increases the hardness and strength. The structure design of the extruder is reasonable, the machine body is solid, stable, reliable and durable. Low energy consumption, high production efficiency and easy maintenance.
The extruder can be equipped with digital automatic monitoring system to provide a strong guarantee for the continuous and stable work of the machine.
EV50A Brick block vacuum extruder technical parameters:
Production capacity:10000-13000pcs/hr
Extrusion pressure: ≤3.0Mpa
Vacuum degree: ≤-0.092
Rotate speed of extruding shaft :25rpm
Diameter of reamer:
Material transporting part: 500mm
Extruding part:450mm
Power: 160+55kw
Weight: 17500kg
Vacuum extruder main technical parameters:
| No. |
Model |
EV50A |
EV55A |
EV60A |
| 1 |
Code |
IBS062-0205 |
IBS062-0206 |
IBS062-0202 |
| 2 |
Production capacity |
10,000-13,000pcs/h(250*110*75mm) |
11,000-15,000pcs/h(250*110*75mm) |
13,000-19,000pcs/h(250*110*75mm) |
| 3 |
Extrusion pressure |
≤3.0Mpa |
≤3.0Mpa |
≤4.0Mpa |
| 4 |
Vacuum degree |
≤-0.092 |
≤-0.092 |
≤-0.092 |
| 5 |
Rotate speed of extruding shaft |
25rpm |
24rpm |
20rpm |
| 6 |
Diameter of reamer |
Material transporting part :500mm
Extruding part :450mm
|
Material transporting part :550mm
Extruding part :500mm
|
Material transporting part :600mm
Extruding part :600mm
|
| 7 |
Vacuum pump |
2SK-6 |
2SK-6 |
2SK-12 |
| 8 |
Reducer |
Upper stage:i=12.64
Lower stage :i=21.3
|
Upper stage :i=12.64
Lower stage :i=21.3
|
Upper stage :i=20.49
Lower stage :i=24
|
| 9 |
Triangle belt |
Upper stage:5V-4600*6
Lower stage:5V4800*10
|
Lower stage:5V4800*10
Upper stage: 5V-4600*6
|
Upper stage:5V-4600*6
Lower stage:5V4800*10
|
| 10 |
Power |
160+55kw |
200+55kw |
250+75kw |
| 11 |
Dimension |
Upper stage: 4400*2200*1250mm
Lower stage: 5600*1800*2500mm
|
Upper stage: 4700*2200*1250mm
Lower stage: 4700*1800*2600mm
|
7500*2900*2800mm |
| 12 |
Weight |
17500kg |
18500kg |
30000kg |
BBT supply red clay brick making project machinery and equipment
key equipments:
TWPM Wet pan mill
TWJH filter mixer
GD belt type of box feeder / TCNL Chain steel type of box feeder
TRA double tooth roller crusher
MDE double shaft mixer
QTQP-3G brick cutter
GS fine grinder
