Full automatic clay brick making factory vacuum extruder with tunnel kiln project technical design
The vacuum extruding machine is suitable for continuous extruding of wet clay and is a key functional machine in the molding section of brick production line.
The mud bar extruded by the equipment has a smooth and compact surface, good quality, large extrusion output, easy operation, stable operation and good reliability.
The machine can produce solid brick, hollow brick, porous brick, hollow block and other brick.
The machine is composed of upper mixing part, vacuuming part and lower extruding part.
The extruder body is welded with high quality steel plate, and the residual stress inside the parts is removed after aging treatment, which increases the hardness and strength. The structure design of the extruder is reasonable, the machine body is solid, stable, reliable and durable. Low energy consumption, high production efficiency and easy maintenance.
The extruder can be equipped with digital automatic monitoring system to provide a strong guarantee for the continuous and stable work of the machine.

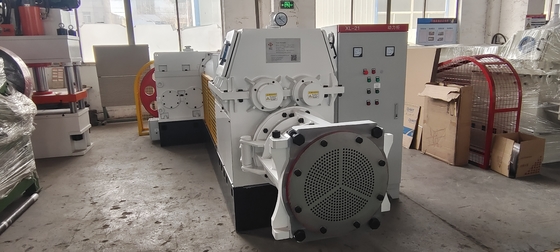

Vacuum extruder for red clay bricks blocks making machine
Vacuum extruder machine of technical parameters:
|
External dimension |
Moulding moisture content |
Motor capacity |
Max extruding pressure |
Capacity |
Mixing area reamer diameter |
Extrusion reamer diameter |
Extrusion spindle speed |
Mud pressing shaft speed |
Mixing shaft material |
|
5500*3000*1600mm |
16%-21% |
75.5kw |
2.2mpa |
3-10 t/hr |
400mm |
340mm |
11rpm/min |
14.5rpm/min |
40Cr |
Full automatic clay brick making factory vacuum extruder with tunnel kiln project technical design
Custom building is accepted.
BBT--Leading supplier for 2 times setting and firing in full automatic bricks production line
Designer, supplier and manufacturer for clay brick making machine and production line
Chain plate box feeder/refine roller crusher/wet pan mill /double shaft mixer/front grid extruder/Toother roller crusher/cutter /robot setting machine /automatic bricks loading and unloading system/running equipment for kiln cart
