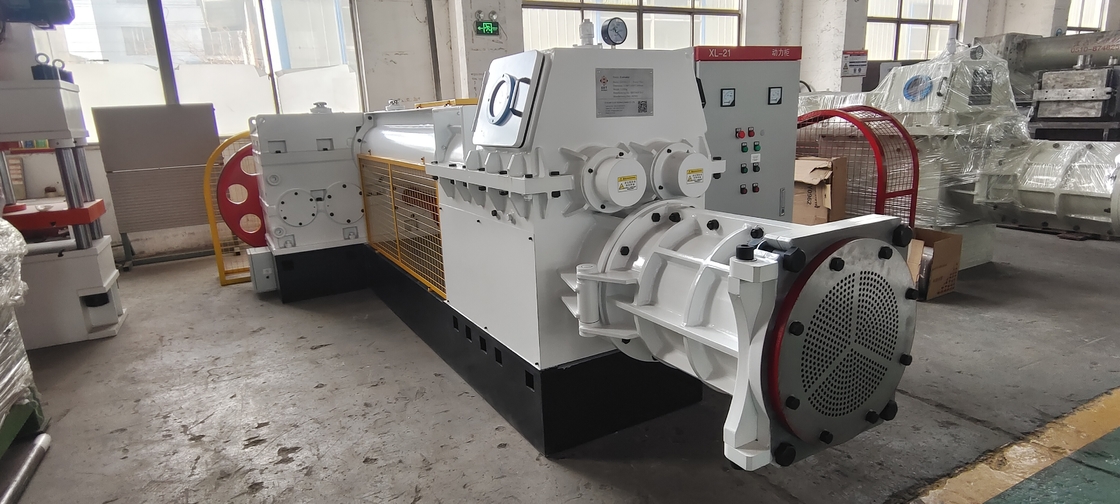

Custom Made Clay Brick Vacuum Extruder Red Block Making Machine
This vacuum extruder is a key piece of molding equipment for clay brick production lines, designed for continuous extrusion of wet clay.
It produces smooth, compact, high‑quality mud bars with high output. The machine is easy to operate, runs stably and features high reliability.
It can produce solid bricks, hollow bricks, porous bricks, hollow blocks and other types of bricks.
Composed of an upper mixing section, a vacuum chamber and a lower extrusion section, the machine body is made of high‑quality welded steel plates with aging treatment to improve hardness and strength.
It has a reasonable structure, solid build, low energy consumption, high efficiency and easy maintenance.
An optional digital automatic monitoring system is available to ensure stable and continuous operation.

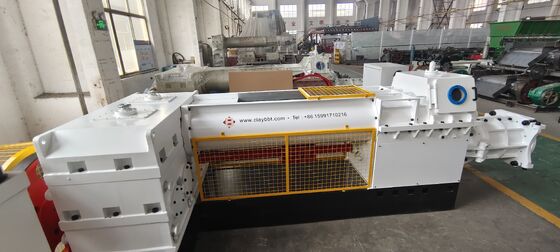

Custom Vacuum Extruder for Clay Brick and Red Block Production
Clay Brick Vacuum extruder machine of technical parameters:
|
External dimension
|
Moulding moisture content
|
Motor capacity
|
Max extruding pressure
|
Capacity
|
Mixing area reamer diameter
|
Extrusion reamer diameter
|
Extrusion spindle speed
|
Mud pressing shaft speed
|
Mixing shaft material
|
|
5500*3000*1600mm
|
16%-21%
|
75.5kw
|
2.2mpa
|
3-10 t/hr
|
400mm
|
340mm |
11rpm/min
|
14.5rpm/min
|
40Cr
|
BBT is a professional provider of full automatic clay brick making production lines and related equipment.
Our main products include:
TCNL series full steel chain box feeder
TWGD series double shaft mixer
GS series roller crusher
TRA series double tooth roller crusher
TWJH series front grid extruding mixer
TWPM series wet pan mill
QTQG series cutter
EV series vacuum extruder
Robot setting machine
Spare parts for brick making machinery
We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
