Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter
Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter
Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001
Model Number:
GS1080
Trading Properties
Minimum Order Quantity:
1 set
Price:
16000USD
Payment Terms:
T/T
Supply Ability:
5 sets per month
Product Summary
Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter Roller Crusher Machine for Clay Brick Production High-performance double rolling crusher designed for clay brick making plants, featuring precision crushing and improved material plasticity. High Fine ...
Product Custom Attributes
Highlight
clay brick roller crusher machine
,double rolling crusher for brick making
,roll mill crusher with warranty
Features:
High Crushing Efficiency, Low Energy Consumption, Adjustable Discharging Size, Easy Maintenance, Etc.
Material Feeding Size:
200mm
Weight:
7000kg
Required Power:
110+75
Roller Diameter:
400mm
Keyword:
Mine Double Roll Crusher
Hardness Of Roll:
≥57HRC
Feeding Granularity:
500mm
Materials Crusher:
Steel
Brick Raw Material:
Clay Soil Mud Shale
Exterior Dimension:
1650*1748*1520mm
Feature:
Low Power Consumption
Discharging Size:
2-10mm
Roller Length:
250mm
Product Description
Detailed Specifications & Features

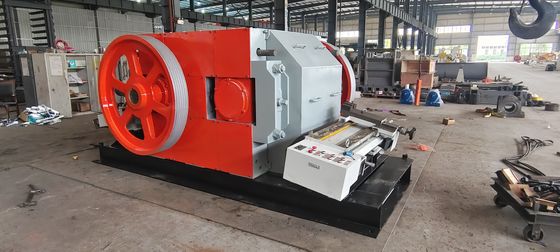

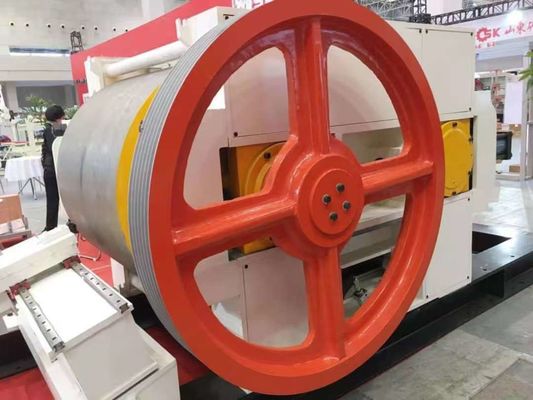

Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter
Roller Crusher Machine for Clay Brick Production
High-performance double rolling crusher designed for clay brick making plants, featuring precision crushing and improved material plasticity.
High Fine Grinder Roller Crusher
Custom-built for fine crushing of brick raw materials to achieve optimal particle composition and enhanced plasticity. Ideal for materials with moisture content ≤25% and maximum feed size below 20mm.
Operating Specifications:
- Suitable crushing ratio: 1:4-6
- Maximum feed size: 20mm
- Excessive moisture or oversized feed reduces equipment performance
GS1080 Model Technical Specifications:
| Parameter | Specification |
|---|---|
| Capacity | 35–50 m³/hr |
| Power | 55+75(90) kW |
| Weight | 14800 kg |
| Overall Dimension (L×W×H) | 6200×4000×1700 mm |

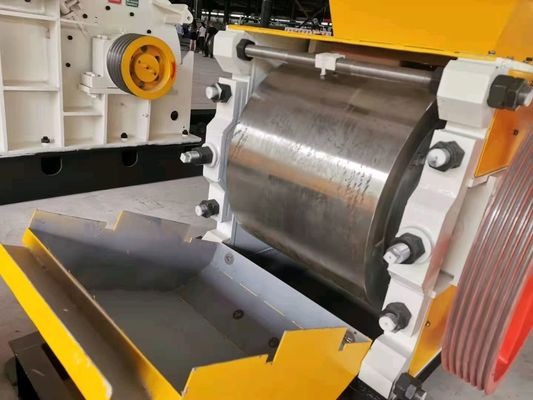

Modular roller ring and hub design with high-strength bolt connection for easy maintenance. Manganese steel construction provides exceptional wear resistance, strength, and repairability.
Roller of technical datas:
| Component | Specification |
|---|---|
| Roll Surface Thickness | ≥140 mm |
| Roll Gap | ＜1.5 mm |
| Roll Hardness | ≥53 HRC |
| Roll Dimensions (Diameter × Width) | 1000×800 mm |
Complete Clay Brick Production Solutions
XI'AN BBT CLAY TECHNOLOGIES CO.,LTD provides comprehensive automatic clay brick making equipment and systems:
Production Line Components
- Raw Material Processing: Belt conveyors, box feeders, roller crushers, fine grinders, jaw crushers, wet pan mills, mixers.
- Brick Molding: Vacuum extruders, automatic brick cutting systems.
- Automation Systems: Brick loading/unloading machines, stacking machines, robotic setting machines.
- Drying & Firing: Tunnel kilns, combustion systems, dryer equipment.
- Project Services: Complete brick plant design and technical support.
Production & Delivery of High Fine Crushing Roller Crusher
