Grey Refine Roller Crusher 20 to 100 tons/h for Raw Material Crushing and Clay Brick Making

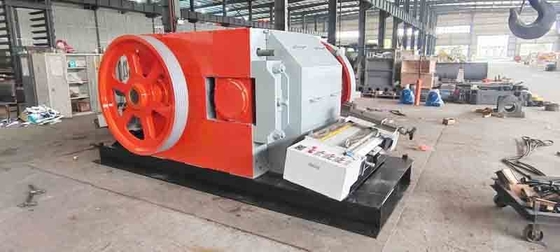

Large Image : Grey Refine Roller Crusher 20 to 100 tons/h for Raw Material Crushing and Clay Brick Making

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO90001
Model Number:	GS1080

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 10000-100000
Packaging Details:	680044602860mm
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/year

Contact Now

Grey Refine Roller Crusher 20 to 100 tons/h for Raw Material Crushing and Clay Brick Making

Description

Brand:	BBT	Custom Building:	Accepted
Colour:	Custom Building Is Accepted	Function:	Clay Crushing Or Bentonite Making
Rollers Quantity:	2	Roller Distance:	1 To1.5mm
Shaft:	Can Be Custom Building	Lathe:	Equipped
Roller Material:	Alloy	Weight:	24 Tons
Highlight:	grey roller crusher for clay brick making , refine roller mill for bentonite making , 20-100 tons/h raw material crusher

20 to 100 tons/h Grey Refine Roller Crusher for Raw Material Crushing

High-performance roller crusher designed for clay brick making and bentonite production, with capacity ranging from 20 to 100 tons per hour.

Key Features:

Designed for clay crushing with water content less than 25%
Input diameter below 20mm, output adjustable to 1-1.5mm
Hydraulic cylinder bracket support for roller mounting
Full welded side frame processed by machine tools for precision and durability
Integrated front and back lathes for automatic roller grinding and repair

Solid Steel Structure with Hydraulic System

Technical Specifications:

Model	800x600	1000x800	1200x1000	1400x1200
No.	IBS072-4703	IBS072-4705	IBS072-4707	IBS072-4709
Capacity (m³/h)	23-37	33-42	40-55	50-70
Power (kW)	30+37	55+75	110+75	160+90+5.5
Size (mm)	5000x1400x1430	6230x2010x1635	6800x4460x2860	8680x7300x2260
Weight (kg)	5700	14330	22400	34000

High-Quality Rollers

Surface hardness of 60.7 HRC (exceeds standard requirements)
Same manufacturer as Verdes and other European companies
Separate roller and hub structure connected by wedge key for easy maintenance
135mm thick roller skin with layered design for wear resistance and easy repair

Spherical Rolling Bearings

Integrated Roller Repair Lathe

Premium Brand Motors

For inquiries, please contact:

XI'AN BBT CLAY TECHNOLOGIES CO., LTD

Email: nodapan@claybbt.com

WhatsApp: +86 177 9142 2086

Tag:

AC Motor Toothed Roller Crusher,

Raw Materials Double Toothed Roll Crusher,

Mobile Brick Manufacturing Equipment

Contact Details

Xi'an BBT Clay Technologies Co., Ltd.

Contact Person: Pan

Tel: 86 177 9142 2086
