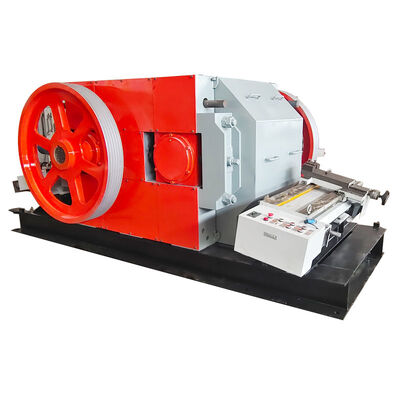

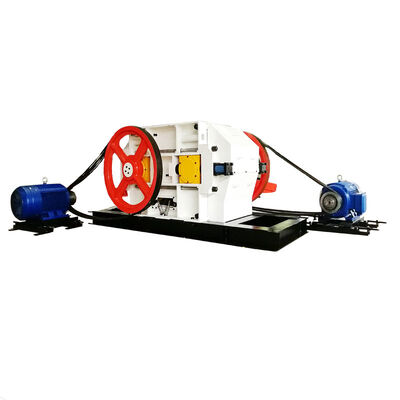

Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher for clay brick making
Fine Pulverizing Roller Crusher for clay brick
,High Speed Roller Mill for brick making
,Roller Crusher Machine with fine pulverizing
Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher for clay brick making plant
The two rollers of Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher have different linear velocities, both extrusion and tear residual cracking functions, high crushing efficiency.
The moving roller of Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher adopts hydraulic cylinder, which can adjust the crushing pressure according to different raw materials.
The frame of Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher adopts steel plate welding structure, which has high strength and can withstand large overload and impact force.
Both sides of the fixed rollers of Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher are equipped with screw adjusting devices to facilitate the position adjustment after the size of the roller ring is reduced.
The mud scraper of Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher is loaded by cylinder, which is closely attached to the roller skin. It has good mud scraping effect and is easy to maintain and replace the scraper.
The main machine of Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher is fixed on the bottom frame of the section steel welding, and equipped with the base of the grinding lathe to facilitate the repair of the roller ring. Grinding lathe is optional.
Each roller of Fine Pulverizing Rolling Crusher/Roller Mill/ High Speed Roller Crusher is equipped with an independent stepless speed reduction motor, which is used to drive the roller when the roller ring is repaired without starting the main motor, which is energy saving and safe.
Clay brick roller crusher of technical datas:
| Technical Parameters | GS8060 | GS1080 | GS1210 | GS1412 | |
| Production capacity | t/h | 30-50 | 55-75 | 70-90 | 90-120 |
| Roller diameter*width | mm | 800*600 | 1,000*800 | 1,200*1,000 | 1,400*1,200 |
| Tangential speed / | m/sec | 1412 | 1412 | 1412 | 1412 |
| Required power | Kw | 37+30 | 55+75/90 | 110+75 | 160+90 |
| Approximate weight | Kg | 5,900 | 14,800 | 23,000 | 34,000 |
| Total length | mm | 5,122 | 6,200 | 6,800 | 7,800 |
| Total width | mm | 1,400 | 4,000 | 4,460 | 6,500 |
| Total Height | mm | 1,430 | 1,700 | 2,860 | 2,300 |
BBT supply full auto clay brick making line machinery and equipment
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
