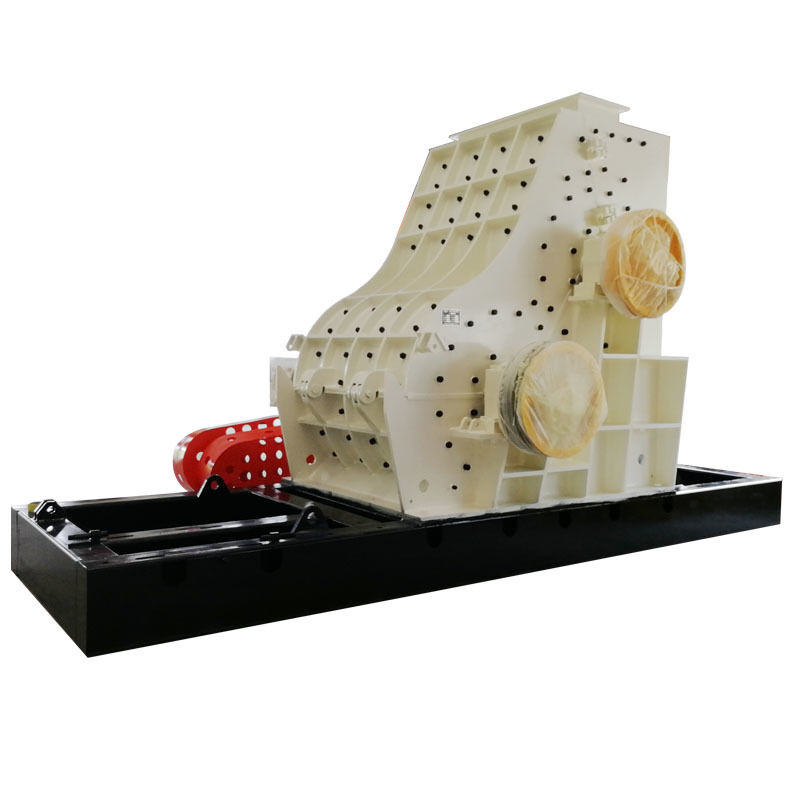

The clay brick making machine Double-disc roller hammer crusher, hammer mill
The equipment uses the principle of high-speed rotating hammer to make the material counterattack and material impact crushing, used in the crushing of medium hardness materials, with high production capacity, small discharge particle size characteristics. Widely used in mining, metallurgy, cement factory, brick factory and so on.
The equipment is made of full-steel structure.
It is designed as upper and lower rotor, and then the material hitting distance is longer.
The casing is opened by hydraulic top, which is convenient and quick to replace the wearing parts.
The body is equipped with a sealing strip to reduce dust at maximum.
The equipment designed without sieve plate, so that the leakage effect is good, and not blocked by the raw material.
The hammer head and sieve plate are made of high chromium alloy, which improves the service life and reduces the replacement frequency.
Double tooth hammer crusher machine of technical parameters:
| |
|
HC800*2A |
HC1200*2A |
|
Production capacity
|
t/h |
70-90 |
90-150 |
|
Discharging granularity
|
mm |
≤3 |
≤3 |
|
Required power
|
Kw |
90+90 |
160+160 |
|
Approximate weight
|
Kg |
10,000 |
24,000 |
|
Total length
|
mm |
4,234 |
5,727 |
|
Total width
|
mm |
1,920 |
2,510 |
|
Total Height
|
mm |
1,959 |
3,200 |
Double toothed roller hammer crusher clay brick crushing machine for auto brick making plant machine
BBT supply full auto clay brick making line machinery and equipment
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
