1. Function and usage for tooth roller crusher in the production line of clay brick making or bentonite making
The double-toothed roller crusher is suitable for crushing medium and low hardness raw materials, such as
sintered bricks, coal, cement, silicate, glass, ceramics and other brittle and soft materials. The Mohs hardness
of raw materials should
not be greater than 2.5. The equipment is used for rough crushing of 50-300mm bulk materials, which can
be crushed to below 30mm or less. According to the characteristics of raw materials, the output varies from
20-100m3/h or 30 tons/h to 120 tons/h;
This series of double-toothed roller crusher is mainly composed of motor, reducer, hydraulic coupling, frame part,
fender part, gear box, fast and slow rollers, pressing roller components and other parts.
The double-toothed roller crusher adopts a rotating device of fast and slow rollers, and the upper part is equipped
with a pressing roller. Relying on the opposite rotation and the speed difference of the double-toothed rollers,
it crushes the incoming bulk materials and improves the crushing effect.
2. Tooth roller crusher in BBT's workshop and technical specifications
| No. |
Model |
TRA-400x1000 |
TRA-400x1200 |
TRA-600x1400 |
| 1 |
Capacity( m3/h) |
30-45 |
35-50 |
60-70 |
| 2 |
Roller diameter(mm) |
400 |
400 |
590 |
| 3 |
Roller length(mm) |
970 |
1,130 |
1,470 |
| 4 |
Roller gap(mm) |
16 |
16 |
20 |
| 5 |
Power(kw) |
37/45 |
45/55 |
75/90 |
| 6 |
Pressing roller power(kw) |
|
3 |
5.5 |
| 7 |
Weight(kg) |
8,700 |
9,600 |
18,400 |

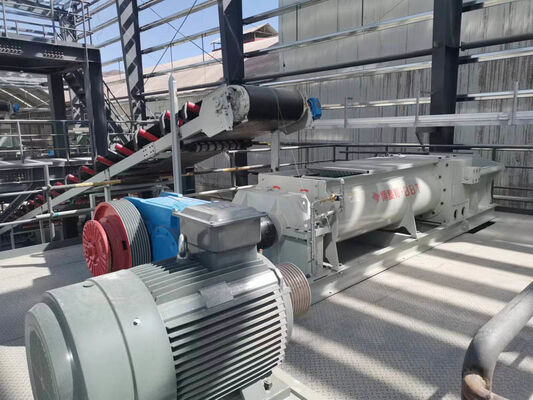

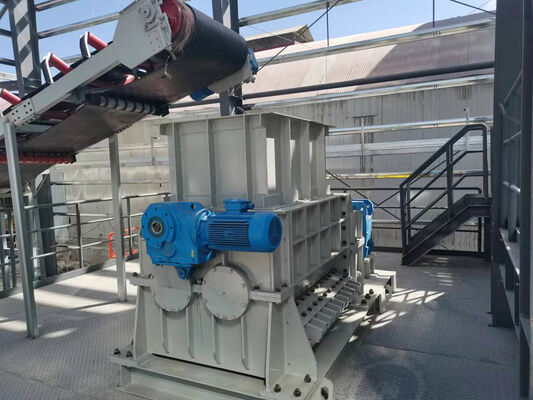

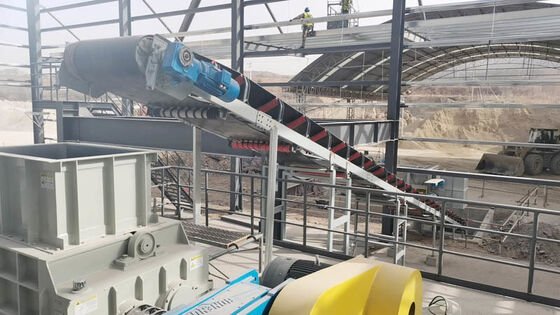

3. Installation and working for tooth roller cursher in the working site in the productin line
4. Rollers and inside structure for tooth roller crusher
The working clearance of the double-toothed roller is 16mm, which can meet the requirement of medium
crushing of materials; Carbide cutter head is used for the head of the roller tooth, which greatly improves
its service life; The structure of the main shaft of the fast and slow rollers has been uniquely designed to
fundamentally improve the reliability and service life of the whole equipment.

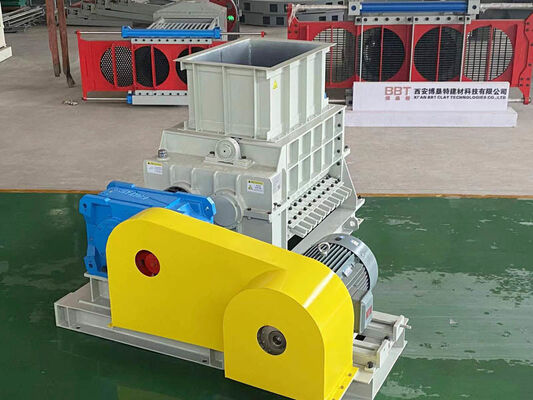

5. Production for tooth roller crusher in workshop from BBT
6. Working video for tooth roller crusher from Youtobe
TRA400 model double toothed roller crusher in bentonite processing workshop
https://youtu.be/GMJLUnRqOtY
7. Questions and answers for tooth roller crusher when customer wants to know more:
a. RFQ: What is the minimum and maximum capacity for the tooth roller crusher pls?
Answer: 30 tons/hour is the minimum and 120 tons/h is the maximum;
b. RFQ: What is the maximum input diameter and output diameter for the raw material pls?
Answer: Maximum diameter is 300 mm and output diameter is less than 30mm;
c. RFQ: Where is the roller crusher is using pls?
Answer: It is using in the primary stage for raw material crushing;
d. RFQ: How about the special requirement for the toorh roller crusher pls?
Answer: Special requirement can be custom building
e. RFQ: How about the installation for the single machine pls?
Answer: Foundamental drawings will be provided for the tooth roller crusher before shipment;
f. RFQ: If inspection by SGS before shipment is accepted or not?
Answer: Yes, it is accepted by BBT;
g. RFQ: What is the certificate can be provided for this machine pls?
Answer: ISO9001 and CE certificate can be provided for this tooth roller crusher;
h. RFQ: Inspection online for the manufacture's workshop is accepted or not?
Answer: Yes, it is accepted by BBT.
