BBT Fully Automatic Palletless Fired Brick Unloading & Packing System

BBT Fully Automatic Palletless Fired Brick Unloading & Packing System

Main equipment and main functions---Fully Automatic Palletless Fired bricks unloading and Packing System from BBT

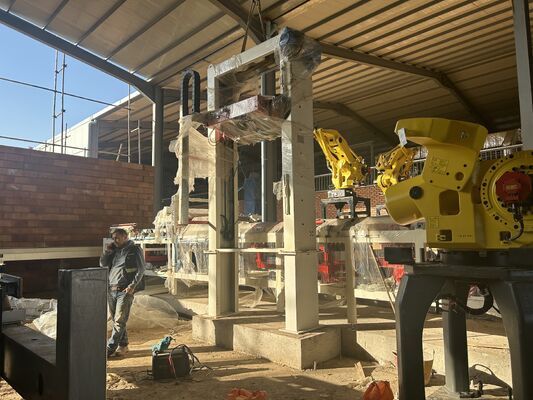

1. Unloading Robots with Graspers

The robots is to grab the fired bricks from kiln carts to put on the conveyor belt bench layer by layer.

2. Brick unloading conveyor belt bench

Function for the bench is to transport the single-layer bricks to the transit belt conveyor.

3. Fired brick transit belt conveyor

Make the single-layer bricks together without gap and transport to the buffer conveyor belt bench.

4. Buffer conveyor belt bench

Holding and stocking the brick layers and send them to the programming and grouping transit chain bench.

5. Programming and grouping transit chain conveyor

Receiving and steering the single layer bricks by the lifting roller bench and then programing and organizing. Single-layer bricks will be strapped by the horizontal strapping machine and then send to the end chain to wait for gripping by robots.

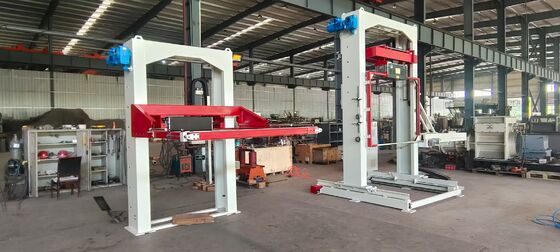

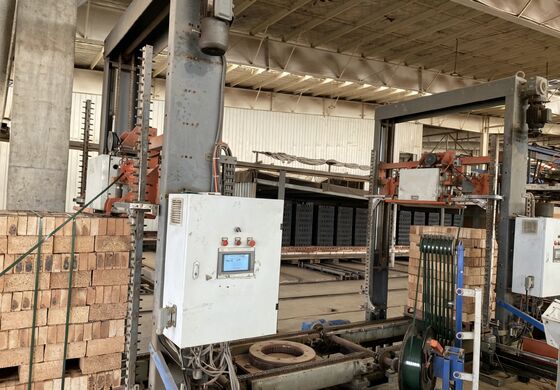

6. Horizontal strapping machine

Horizontal packing the single-layer bricks by coordinating with the middle lifting roller bench of the programming bench.

7. Stacks setting robot

Grab the packed single-layer bricks from the end chain and put onto strapping chain conveyor.

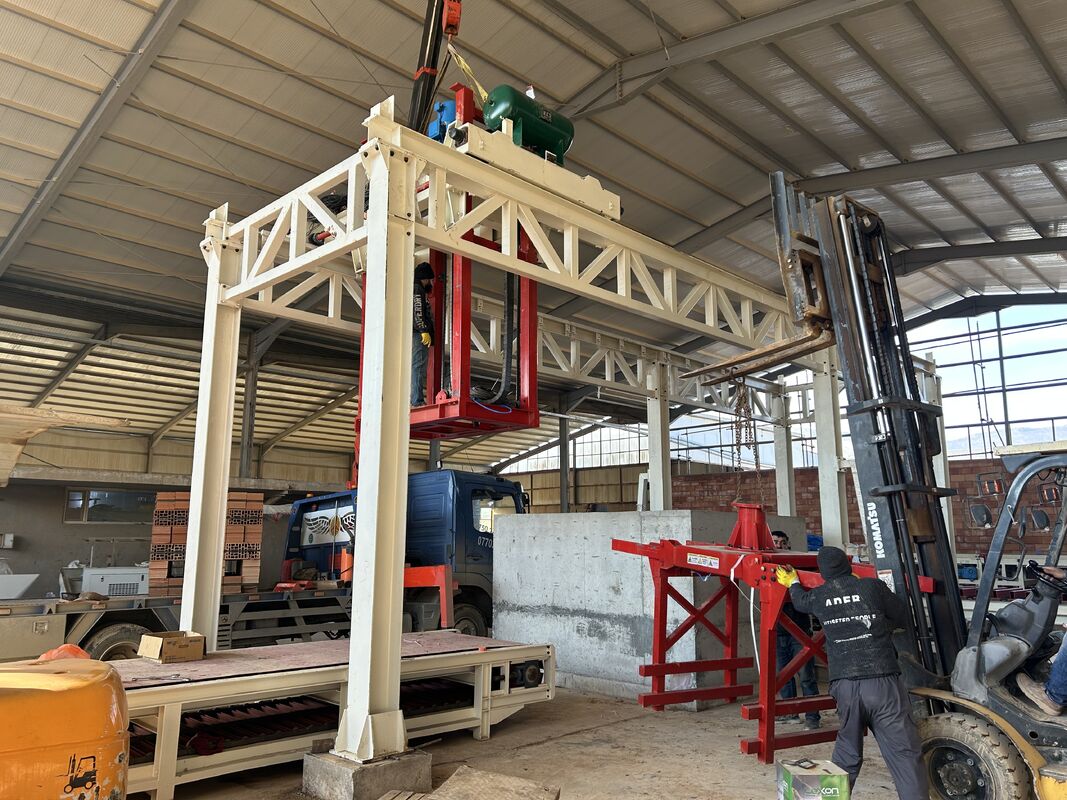

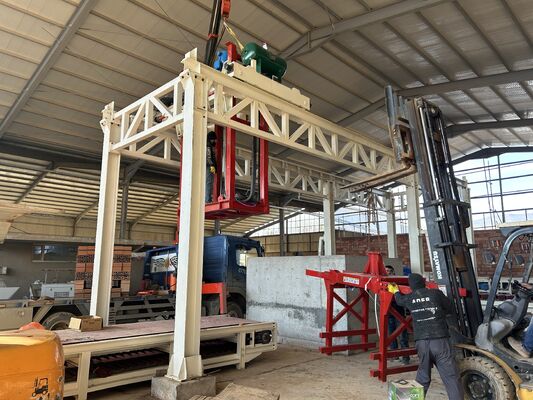

8.Vertical strapping machine

Vertical packing the brick packs which transported from the chain conveyor.

9. Strapping chain conveyor

Stacking the single-layer bricks to a brick pack by robot and then vertical packing by the vertical strapping machine.The packed stacks will be sent to the end chain to wait for grip away by a stacker.

Fully Automatic Palletless Brick Unloading Packing System by BBT

11. Pallet chain conveyor

Convey the soaked packs to the exit.

BBT is a professional provider of full automatic clay brick making production lines and related equipment.

Our main products include:

TCNL series full steel chain box feeder

TWGD series double shaft mixer

GS series roller crusher

TRA series double tooth roller crusher

TWJH series front grid extruding mixer

TWPM series wet pan mill

QTQG series cutter

EV series vacuum extruder

Robot setting machine

Spare parts for brick making machinery

We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
