Clay Brick Plate Feeding Machine 40 - 50m3/H Capacity For Conveying Raw Materials

Large Image : Clay Brick Plate Feeding Machine 40 - 50m3/H Capacity For Conveying Raw Materials

Product Details:

Place of Origin:	Chongqing, China
Brand Name:	BBT
Model Number:	GD450A/GD600A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Suitable for sea shipment by container
Delivery Time:	45 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 sets per month

Contact Now

Clay Brick Plate Feeding Machine 40 - 50m3/H Capacity For Conveying Raw Materials

Description

Automatic:	Yes	Name:	Box Feeder
Condition:	New	Raw Material:	Clay
Type:	Clay Brick Making Machine	Processing:	Brick Production Line
Capacity:	30-50m3/hr	Weight:	3600kg
Dimension(lwh):	6,7702,1201,330mm
Highlight:	Clay Brick 50m3/H Plate Feeding Machine , 50m3/H Plate Feeding Machine , 40m3/H Plate Feeding Machine

Plate feeder is the supply of conveying raw materials Production capacity 40-50m3/h

Description

This machine is rationing equipment of materials and fuels for brick production line, which is suitable for all kinds of bulk materials. it is the ideal equipment to control the feeding speed and adjust the feeding quantity. The equipment is characterized by convenient operation, safe, reliable and stable operation and wide range of use.

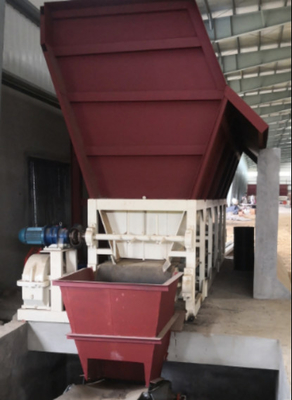

Clay Brick Plate Feeding Machine 40 - 50m3/H Capacity For Conveying Raw Materials 0

Technical Parameters

No.	Model	GD450A	GD600A
1	Code	IBS061-0706	IBS061-0705
2	Production capacity	30-40m3/h	40-50m3/h
3	Width of belt	800mm	800 mm
4	Speed of belt	5.3m/min	5.3m/min
5	Power	5.5+3KW	5.5+3KW
6	Reducer	i=48.57	i=48.57
7	Dimension	5,2702,1201,330mm	6,7702,1201,330mm
8	Weight	2,300kg	3,600kg

Our service

Welcome to contact with BBT

BBT supply following machinery and project :

1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)

2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )

3. Brick kiln project ( hoffman kiln, tunnel kiln )

4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)

5. Kiln firing system ( coal / gas /oil combustion system ,control system )

6. Whole brick making project design and construction .
