Materials Pan Wet Milling Machine For Medium And Fine Crushing
Materials Wet Milling Machine
,Fine Crushing Wet Milling Machine

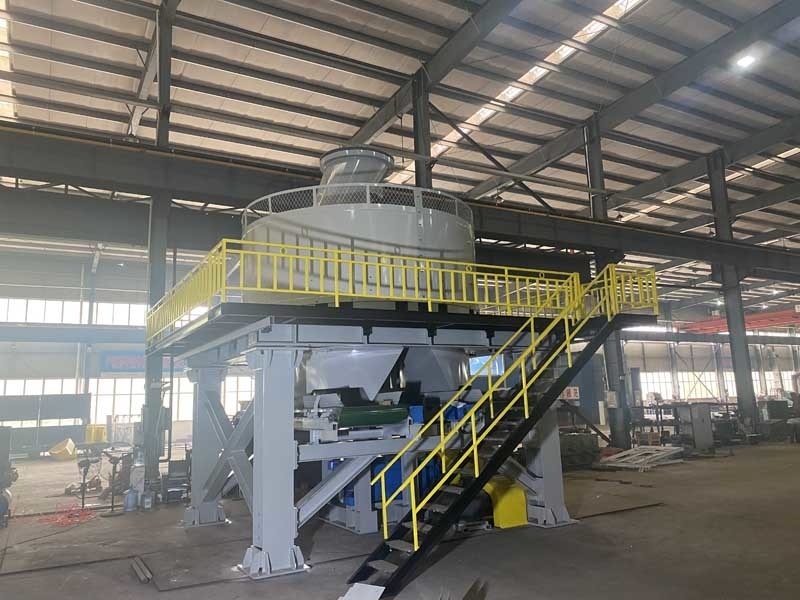

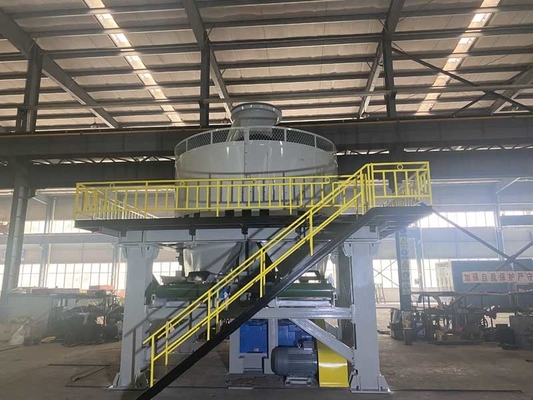

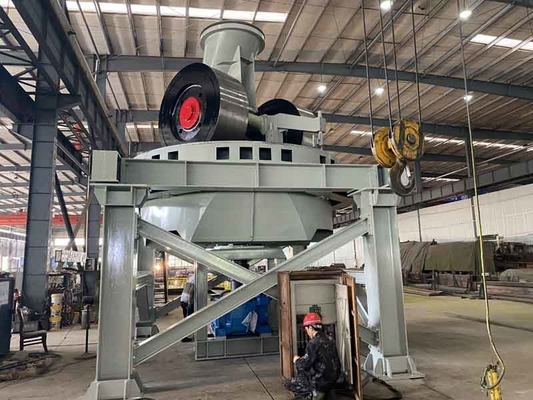

Wet Pan Mill
There are a pair of rollers and a mill, and the material is crushed on the roating roller.The outer ring of the roller. The outer ring of the roller has sieve holes from which the crushed material is discharge. This machine is mainly used to break( powder) broken medium hardness clay, clinker, silica, etc. Generally used for medium and fine crushing for materials
Technical Parameters
| No. | Item | TWPM185 | TWPM200 |
| 1 | Roller size | 1850*700mm diameter*width | 2000*900mm diameter*width |
| 2 | Rotate speed for main shaft | ≥13 rpm | ≥13 rpm |
| 3 | Power | 90+2.2+2.2+1.5kw | 142kw |
| 4 | Effective diameter of rollers | 1850mm | 2000mm |
| 5 | Rotating speed | ≥29rpm | ≥29rpm |
| 6 | Diameter for screen hole | Customized building | Customized building |
| 7 | Production capacity | 40-50 m³/h | 60-90 m³/h |
| 8 | Total weight of equipment | 65200 kg | 70000 kg |
| 9 | Dimensions | 5300*4600*6500mm | 6700*6500*6700mm |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
