TWPM160 Wet Pan Gold Grinding Mill For Materials Processing

TWPM160 Wet Pan Gold Grinding Mill For Materials Processing
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO9001:2008
Model Number: TWPM160
Trading Properties
Minimum Order Quantity: 1 Set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 Sets/60 days
Tags:

Steel Wet Milling Machine

Materials Wet Grinding Machine

Materials Processing Gold Grinding Mill
Product Summary
TWPM160 Wet Pan Mill for Materials Processing in Clay Brick Making and Minerals Processing General Description of TWPM160 Wet Pan Mill for Materials Processing in Clay Brick Making and Minerals Processing 1.This is the most versatile and best performing machine for the grinding and crushing of wet ...
Product Custom Attributes
Highlight

Materials Processing Gold Grinding Mill

,

Wet Pan Gold Grinding Mill

Color:
White
Material:
Steel
Production Capacity:
40-60 Tons/hr
Power Required:
55kw
Dimension:
4,000*4,000*6,200mm
Weight:
46,000kg
Core Components::
Motor, Roller, Reducer
Customized:
Yes
Automatic:
Yes
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Transport Package:
Export Standard Packing
Product Description
Detailed Specifications & Features

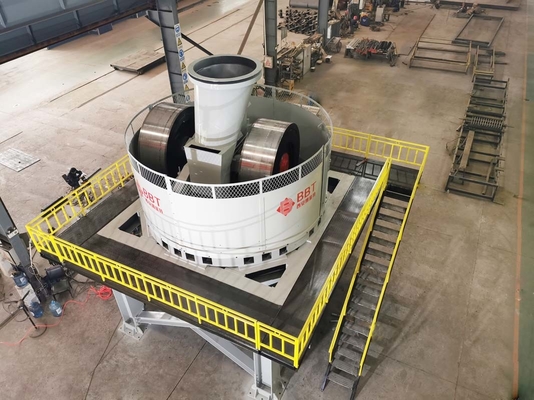

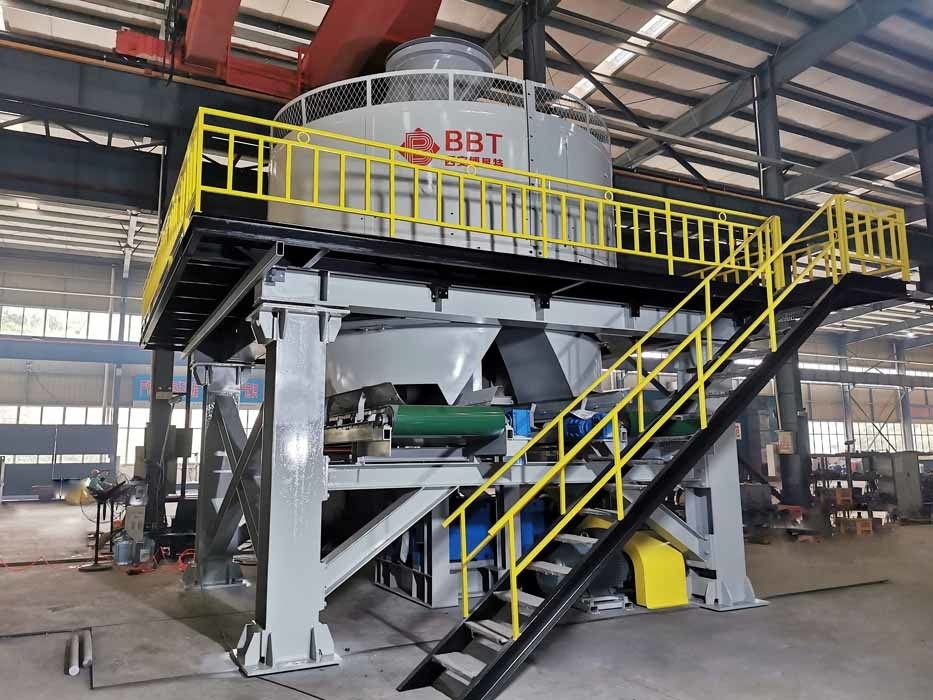

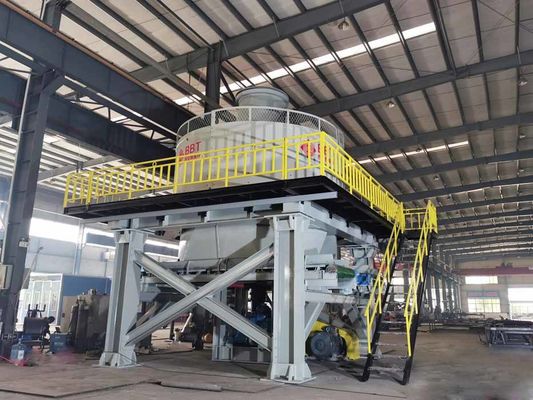

TWPM160 Wet Pan Mill for Materials Processing in Clay Brick Making and Minerals Processing





General Description of TWPM160 Wet Pan Mill for Materials Processing in Clay Brick Making and Minerals Processing



1.This is the most versatile and best performing machine for the grinding and crushing of wet clay and other minerals.
2.Commonly used as clay brick making machine and processing and grinding other minerals and waste. For medium and fine crushing of materials.
3. The material particles crushed by the grinding wheel are approximately spherical, and the edges and corners are not sharp.
4. It is used in the raw material preparation section of the brick production line to fully mix, pulverize and grind various materials.
5. The rolling mechanism is simple to build, easy to maintain, the feeding size is not too strict, the equipment is self-important, the overall rigidity is strong, impact resistance, the equipment operation is safe and stable.
6. The hydraulic coupling is used to achieve the power transmission between the motor and the reducer, the starting impact is small, the reducer can provide overload protection and service life is extended.
7. The opening and closing detection switches for the inspection door and the starting and stoppiing switch of the main motor which are interlocked control to ensure that the maintenance personnel can maintain the machine when the machine is stopped.
8. A real-time feeding detection switch can be set at the feeding inlet to ensure the effective operation of the main motor.


Features of TWPM160 Wet Pan Mill for Materials Processing in Clay Brick Making and Minerals Processing


1. Easily removable runners and grid plates;

2. High degree of homogenisation of the ground material;

3. Uniform grinding;

4. Centralized lubrication system for easy maintenance;

6. Silent operation.





Technical Parameters of TWPM160 Wet Pan Mill for Materials Processing in Clay Brick Making and Minerals Processing



Item Unit TWPM160
Production capacity t/h 40-60
Diameter and width of runners mm 1,600*700
Weight of inner/outer runners Kg 5,700/6,500
Required power Kw 55
Approximate total weight Kg 46,000
Total length mm 4,000
Total width mm 4,000
Total Height mm 6,200





Applications of TWPM160 Wet Pan Mill for Materials Processing in Clay Brick Making and Minerals Processing



Pan mills are true classics that operate according to the multi-stage size-reduction principle. Their universality and flexibility in the preparation of plastic ceramic bodies are unrivaled.



TWPM160 Wet Pan Gold Grinding Mill For Materials Processing 0
