1. 30-70 ton/h Wet pan mill for bentonite making or bentonite raw material preparation
Wet pan mill is a kind of bentonite preparation equipment, which is using for raw material crushing
in the process of bentonite making or preparation
Bentonite preparation or bentonite raw material treatment refers to drying the bentonite to a moisture
content of less than 15%, then removing the stones, and crushing it to 100-200 mesh.
The weathered bentonite does not need to be crushed.
If the bentonite has the high sand content, need to remove sand

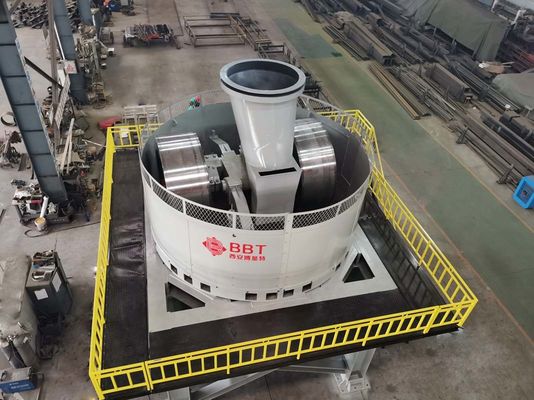

2. Structure of 45-60 m³/h Wet pan mill for clay brick making line materials crushing
machine mill roller machine
The structure of the wet mill pan is simple therefore it is easy to do the maintaining.
There is no strict requirement about the size of feeding material.
It is heavy with reasonable structure, so when the equipment into running, it is more safety, stable
and anti-impacting.

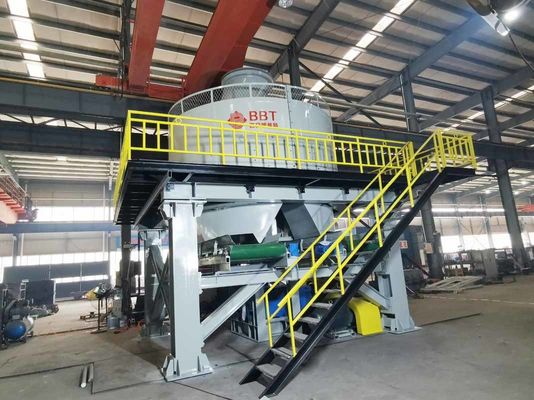

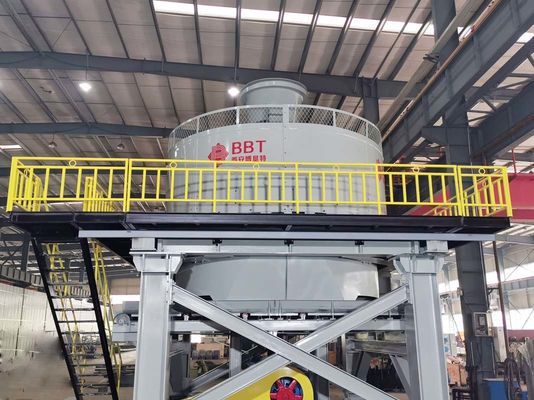

3. Production in BBT workshop for Wet pan mill for bentonite making or bentonite raw material
preparation
There is polyurethane shock-absorbing pad between the platform and reducer, which is used to absorb
the impact force and vibration of the equipment during operation.
Note: Structure supporting and maintenance platform are optional and customers can weld in the local.
Cement supporting frame is also can be done in the local with drawings supporting from BBT.
4. Main shaft for 30-70 ton/h Wet pan mill for bentonite making or bentonite raw material preparation
The main shaft is made of alloy steel forgings, and has been heat treated, which has high strength;
Fatigue resistance and can bear large radial eccentric forces.
5. Technical specifications for 430-70 ton/h Wet pan mill for bentonite making or bentonite raw
material preparation
| No. |
Item |
PM185 |
| 1 |
Roller size |
1,850*700mm diameterxwidth |
| 2 |
Rotate speed for main shaft |
≥13 rpm |
| 3 |
Motor Power |
98 kw |
| 4 |
Inner roller weight: |
8,500 kg |
| 5 |
Outer roller weight: |
12,750 kg |
| 6 |
Diameter for screen hole |
Customized building |
| 7 |
Production capacity |
45-60 m³/h |
| 8 |
Total weight of equipment |
56,000 kg |
| 9 |
Dimensions |
6,700*6,400*6,460mm |
6. Questions and answers for 45-60 m³/h Wet pan mill for clay brick making line materials
crushing machine mill roller machine
a. Which part the refine roller crusher is using for please?
Answer: The high speed refine roller crusher is using after primary roller crusher in the production
line of clay brick making.
b. How long of the guartee time for the high speed roller crusher?
Answer: 1 year
c. If installation drawings is provided when the refine roller crusher is installed?
Answer: Drawings are provided when order is confirmed.
d. Training operation for the high speed roller crusher is provided or not?
Answer: Yes, it is.
e. Spares for refine roller crusher is provided or not?
Answer:Yes, it is.
f. Online inspection for the high speed roller crusher is available or not?
Answer: Yes, it is.
g. Shipment by railway, by truck and by sea are available or not?
Answer: Yes it is
7. Pictures for 45-60 m³/h Wet pan mill for clay brick making line materials crushing machine mill roller machine
7. Other equipment of tooth roller crusher and front grid extruder in BBT's workshop
8. Teams from BBT
Any interested pls advise.
