GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making

GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making
GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making
GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making

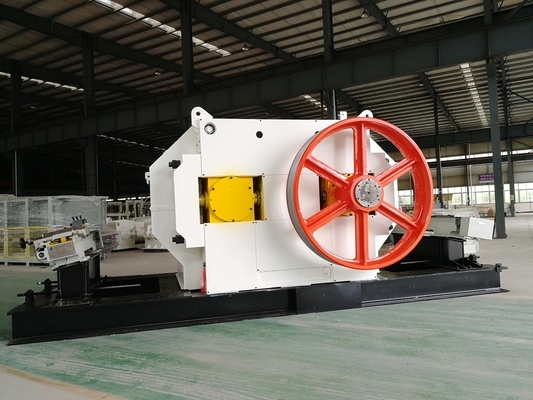

Large Image :  GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making

Product Details:
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: GS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: fine grinder roller crusher machine by container sea shipment
Delivery Time: 12~20 days
Payment Terms: L/C, T/T
Supply Ability: 10 month per month
Contact Now

GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making

Description
Model: GS1080,GS1210,GS1412 Space Of Roll: ＜1.5
Linear Speed Of Roll: 18.4/15.5m/s Thickness Of Roll Surface: ≥160mm
Item: Block Brick Making Machine High Speed Roller Crusher Machine For Clay Brick Making Plant Crushing Machine Material: Steel
Highlight:

Roller Crusher Machine High Speed

,

Brick Roller Crusher Machine

,

Clay Brick Crusher Machine

Clay Brick Roller Crusher Machine - High Speed for Brick Making Plant

High-speed roller crusher machine designed for efficient clay brick production in automated brick making plants. This full automatic red clay brick production line equipment combines crushing and fine grinding capabilities for optimal material processing.

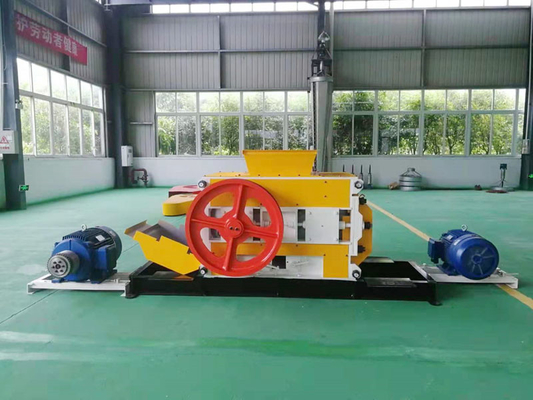

GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making 0 GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making 1
Technical Specifications
No. Model GS1080 GS1210 GS1412
1 Size of roll (diameter × width) 1000×800mm 1200×1000mm 1400×1200mm
2 Hardness of roll ≥53HRC ≥57HRC ≥57HRC
3 Thickness of roll surface ≥140mm ≥160mm ≥160mm
4 Space of roll <1.5 <1.5 <1.5
5 Power 55+75(90)kw ≤110+75kw 160+90kw
6 Linear speed of roll 18.4/15.5m/s 18.4/15.5m/s 18.4/15.5m/s
7 Production capacity 35-50m³/h 45-65m³/h 60-80m³/h
8 Weight 14800kg 23000kg 34000kg
9 Dimension 6200×4000×1700mm 6800×4460×2860mm 7800×6500×2300mm
Machine Features
  • High-speed crushing capability for efficient clay processing
  • Durable roll construction with hardened surfaces
  • Precision roll spacing for consistent material sizing
  • Robust power system for continuous operation
  • High production capacity suitable for industrial brick plants

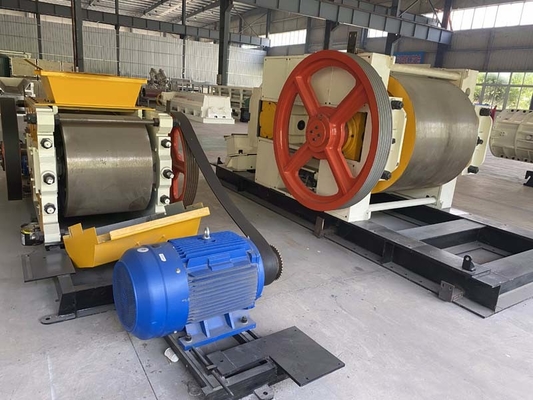

GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making 2 GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making 3 GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making 4 GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making 5
GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making 6 GS1080 GS1210 GS1412 Model Roller Crusher Machine for High Speed Clay Brick Making 7
