220V / 380V Brick Clay Mixing Machine Extruder 30 - 40m3/H Capacity
220V 40m3/H Brick Clay Mixing Machine
,40m3/H Brick Clay Mixing Machine
,380V Brick Extruder Machine

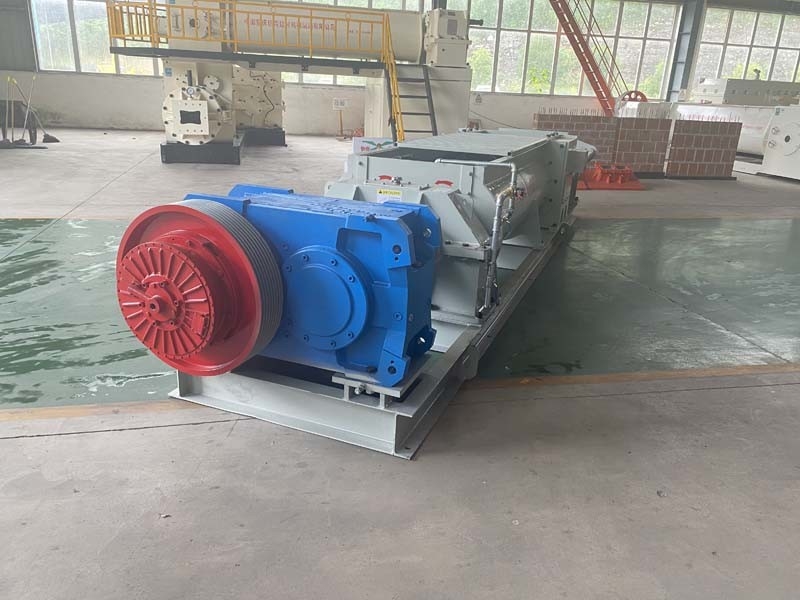

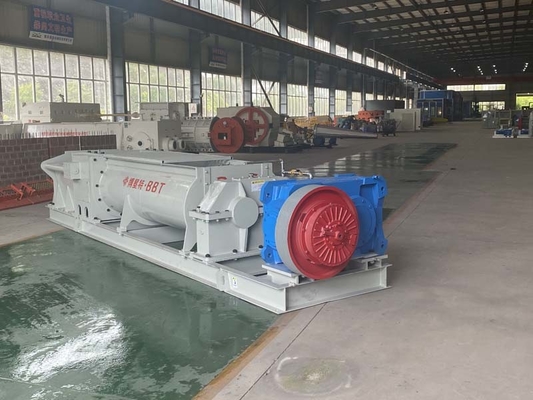

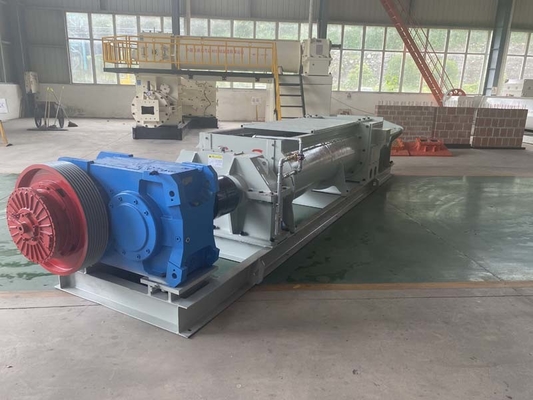

Mixing Extruder Of Clay Brick Making Machinery Capacity 30-40m³/h In Brick Production Line
Mixing and extruding machine has the raw materials and water for full stirring, mixing, homogenization, mixing and other functions. The crushing raw materials after the incorporation of appropriate water fully stirring and mixing, and even of wet clay materials is obtained.
The extrusion section has a cutting and sharding device, which can further enhance the comprehensive performance of raw materials, improve the plasticity of raw materials, and greatly improve the yield and appearance quality of bricks and tiles. It is applicable to all kinds of raw materials for making bricks. It is a necessary equipment for raw materials processing in the production process of sintered bricks.
Key components:
the spiral blade/reamer; Extrusion position; Mixing shaft
Technical Parameters
| No. | Model | TWGD 3300 |
| 1 |
Production capacity |
30-40 m3/h |
| 2 |
Rotating speed |
30 rpm |
| 3 |
Host weight |
9300kg |
| 4 |
Dimension |
7,060×2,450×1,150 mm |
| 5 |
Power |
75 KW |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
