Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
1 set
Price:
USD 65000-77000 per set
Payment Terms:
L/C, T/T
Supply Ability:
10 sets per month
Product Summary
Robot brick stacking machine for auto clay brick production line stacking machinery Red solid hollow block robot setting machine to provide by BBT CLAY BRICK MAKINH PROJECT ROBOT SETTING MACHINERY IN AUTO BRICK MAKING LINE Technological Parameters: No. Item Parameters 1 Action form Vertical multiple ...
Product Custom Attributes
Highlight
Auto Clay Brick Production Line
,Hollow Clay Brick Production Line
,Robot Block Stacking Machine
Features:
Simple, Reliable And Flexible
Item:
Robot Brick Stacking Machine For Auto Clay Brick Production Line Stacking Machinery
Suitable For Bricks:
Soild/hollow Blocks
Load:
500kg
Repeated Positioning Accuracy:
0.5mm
Kiln Type:
Tunnel Kiln Factry
Power Capacity:
9.5kw
Product Description
Detailed Specifications & Features
Robot brick stacking machine for auto clay brick production line stacking machinery
Red solid hollow block robot setting machine to provide by BBT
CLAY BRICK MAKINH PROJECT ROBOT SETTING MACHINERY IN AUTO BRICK MAKING LINE
Technological Parameters:
| No. | Item | Parameters | |
| 1 | Action form | Vertical multiple joint | |
| 2 | Degree of freedom | 4 | |
| 3 | Load | 500kg | |
| 4 | Repeated positioning accuracy | 0.5mm | |
| 5 | Actuation range | S axis (Rotating) | +180° |
| L axis (Lower Arm) | +90° -45° | ||
|
U axis (Upper Arm) ) |
+15.5° -120° | ||
| T axis (Wrist Rotation) | +360° -360° | ||
| 6 | Maximum speed | S axis | 1.48 rad/s |
| L axis | 1.48 rad/s | ||
| U axis | 1.48 rad/s | ||
| T axis | 3.4 rad/s | ||
| 7 | The T-axis allows inertial torque | 200kg | |
| 8 | Robot weight | 2300kg | |
| 9 | Installation environment |
Temperature
|
0~45 ℃ |
| 10 | A conventional model weight | Humidity | 20-80% RH |
| Vibration acceleration | 4.9m/s2 | ||
| Others | No flammable / corrosive gas / liquid | ||
|
NO splash water, oil, dust NO splash water, oil, dust
|
|||
| No electrical | |||
| 11 | Power capacity | 9.5kW | |

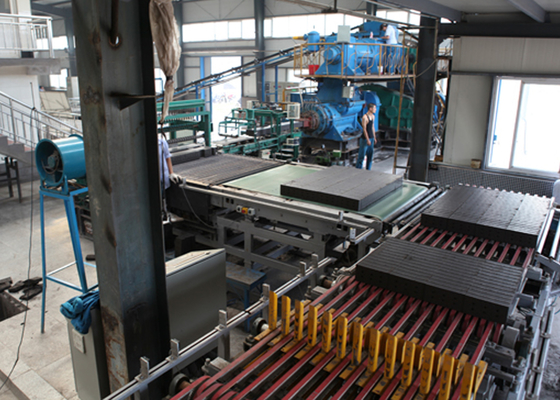

Robot setting clay bricks on dryer cart

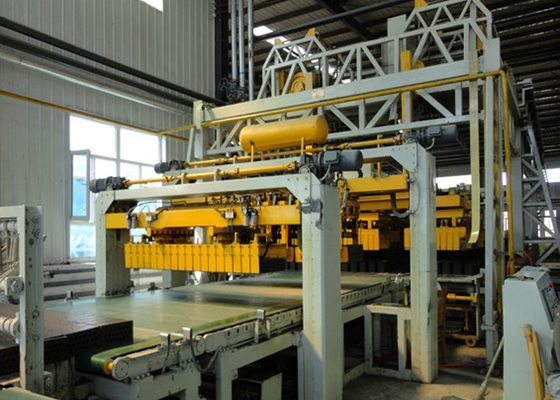

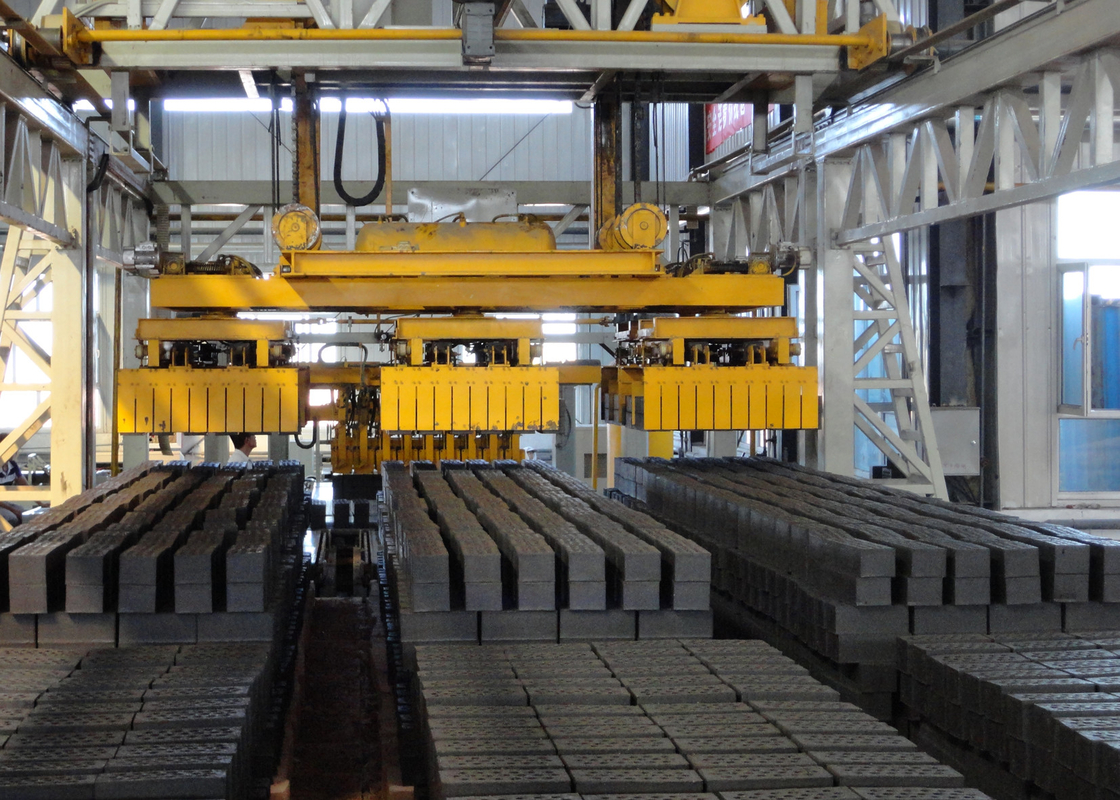

Robot stacking clay bricks tunnel kiln cart

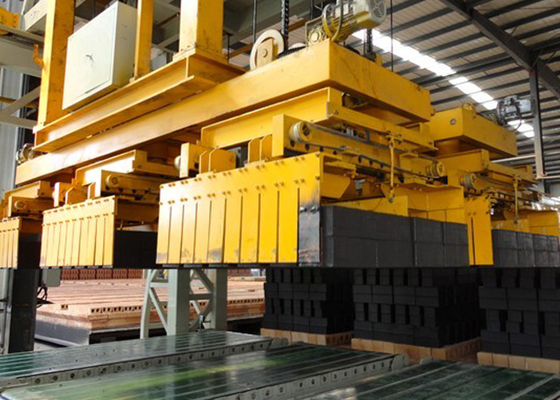

Clay brick stacking machinery for auto brick making line
