Full Automatic Clay Brick Tunnel Kiln With Dryer Chamber

Full Automatic Clay Brick Tunnel Kiln With Dryer Chamber
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO9001:2008
Model Number: 3.6M tunnel kiln
Trading Properties
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 sets tunnel kiln by year
Tags:

Auto Clay Brick Tunnel Kiln

Brick Tunnel Kiln For Brick Firing Process

Auto Tunnel Kiln For Brick Firing Process
Product Summary
BBT full automatic brick kiln project Full automatic clay brick tunnel kiln with dryer chamber design from BBT Red clay brick tunnel kiln project for fired clay solid hollow blcoks Clay brick tunnel kiln The tunnel kiln has complete system of smoke discharging, cooling, waste heat releasing, ...
Product Custom Attributes
Highlight

Dryer Chamber Clay Brick Tunnel Kiln

,

Full Automatic Clay Brick Tunnel Kiln

,

Single Layer Clay Brick Dryer Chamber

Item:
Full Automatic Clay Brick Tunnel Kiln With Dryer Chamber Design From BBT
Raw Material:
Clay,mud, Soil ,fly Ash ,coal
Brick Type:
Solid , Hollow Bricks Blocks
Brick Drying:
Single Layer Dryer Chamber, Fast Rapid Dryer Chamber
Brick Firing:
Coal /gas Fuel Of Brick Tunnel Kiln
Supplier:
BBT China
Product Description
Detailed Specifications & Features

BBT full automatic brick kiln project Full automatic clay brick tunnel kiln with dryer chamber design from BBT


Red clay brick tunnel kiln project for fired clay solid hollow blcoks

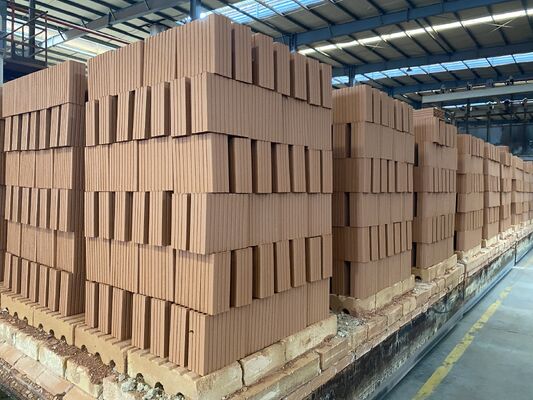

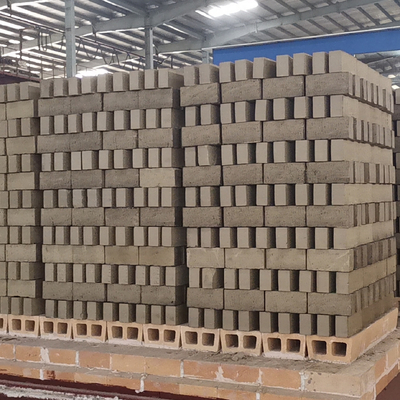

Full Automatic Clay Brick Tunnel Kiln With Dryer Chamber 0

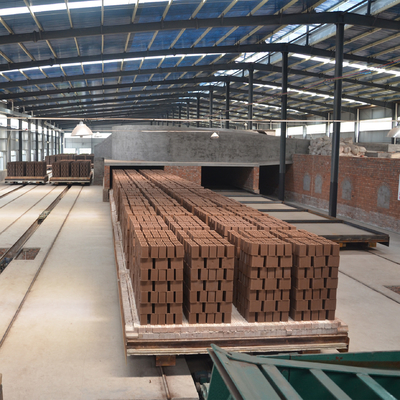

Clay brick tunnel kiln

The tunnel kiln has complete system of smoke discharging, cooling, waste heat releasing, pressure balancing under the kiln car, running and detecting system. Baking curve inside of the kiln will be more reasonable, production system more coordination through the adjustment of those system.

At the entrance side, there is a preparatory room, and a cut-off door between the preparatory room and the kiln pre-heating zone.

There are entrance and exit doors at both ends of the tunnel kiln. Thus it effectively avoid entering the cold air and ensure the baking system inside not be influenced by outside.

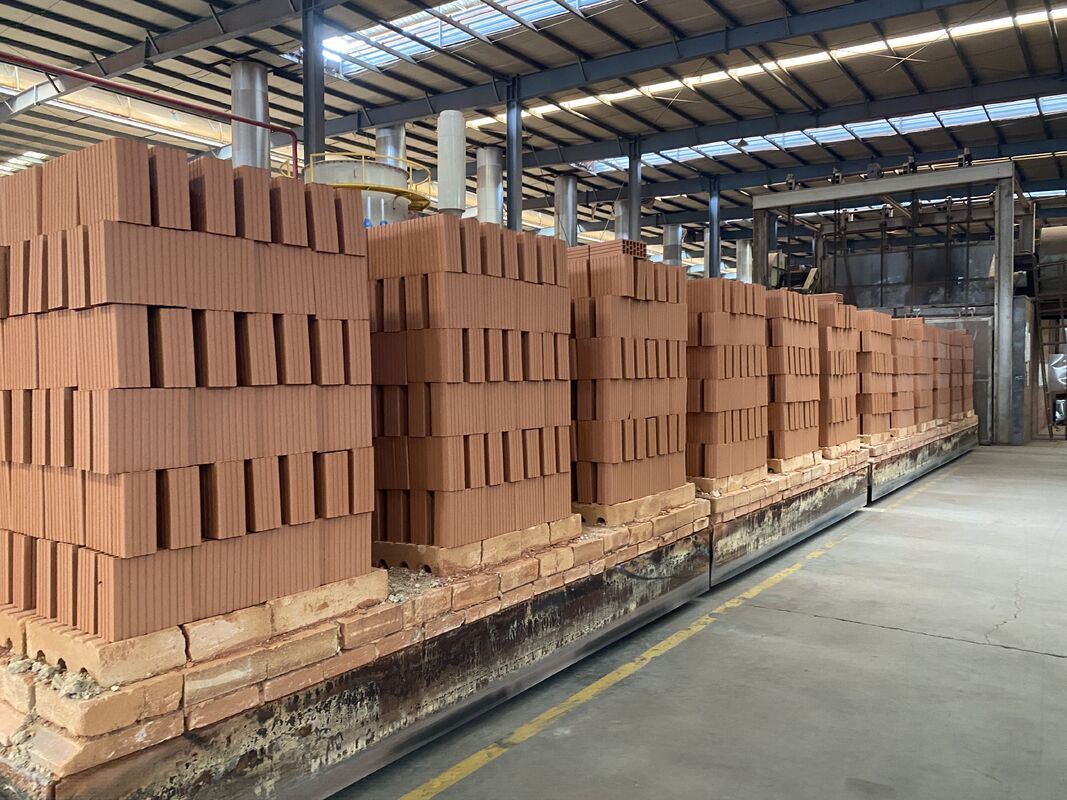

Full Automatic Clay Brick Tunnel Kiln With Dryer Chamber 1

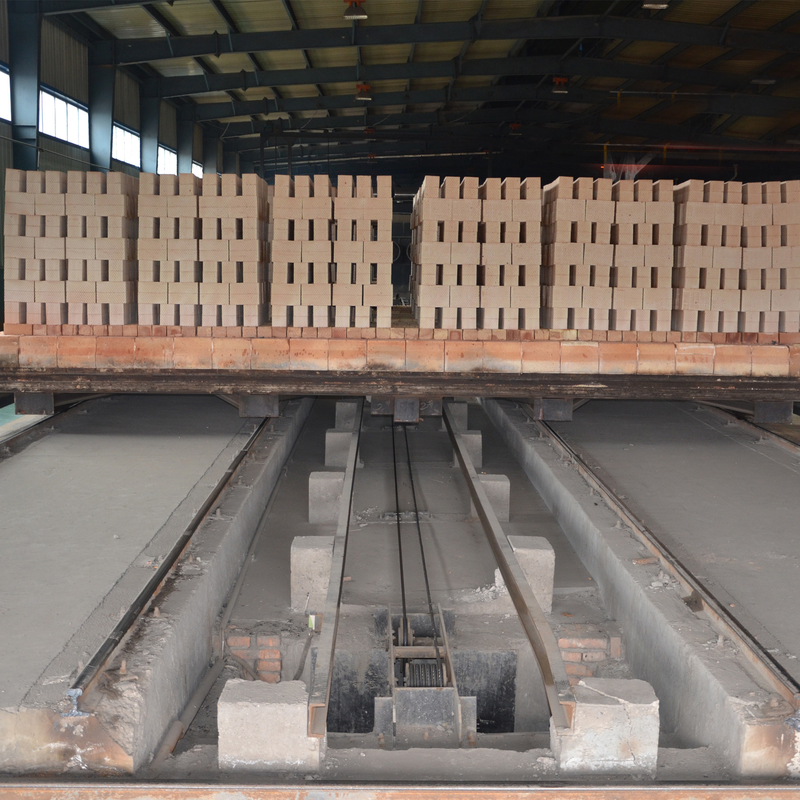

Clay brick tunnel kiln project

Foundation: Tunnel kiln is with strip foundation. From bottom to up by order is plain concrete, reinforced concrete girder (railway girder)/ board (under kiln wall).

Wall: Red brick is laid for the pre-heating zone and cooling zone where the temperature is below 200℃.

The rest is adopting combined wall. The fireclay bricks will be laid on the baking zone and inner wall of insulting zone.

The clay insulting bricks will be used for laying the insulting area. Meanwhile, refractory fabric felt (for the relative part of temperature curve above 600℃) or rock wool felt will be used for stuffing and red bricks will be laid on the external wall.

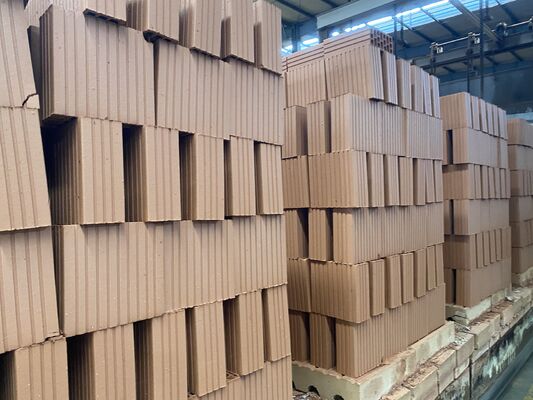

Full Automatic Clay Brick Tunnel Kiln With Dryer Chamber 2



Brick tunnel kiln with dryer chamber of technical paramaters :

Specification Model Numbers Output Capacity (Pcs/day) Land Covering Required Outer Size (m)
Tunnel Kiln + Dryer 2.5m Section 50000 140×50m 110.8×4.3×2.34
8 Channels 61×9.6×1.5
3.6m Section 80000～100000 170×65m 134.2×5.4×3.6
12 Channels 67.6×19.22×1.5
4.6m Section 100000～120000 180×70m 143.5×6.4×3.33
14Channels 65.5×25.24×3.285
6.9m Section 150000～180000 200×120m 153.5×8.7×3.33
20 Channels 65.5×25.24×3.285
